Description

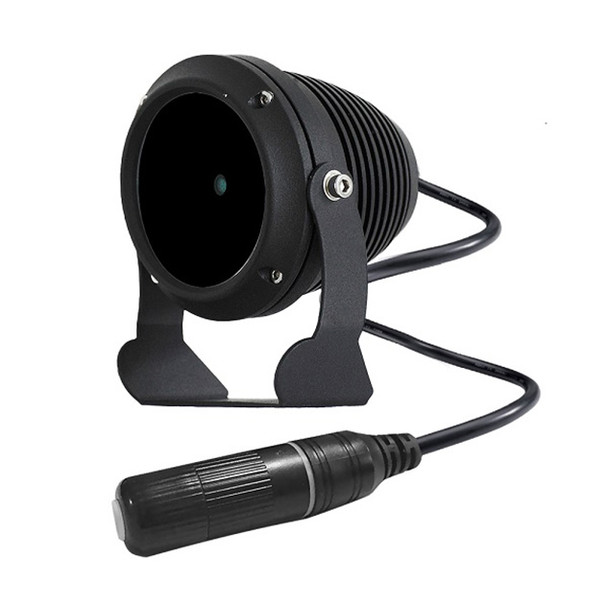

The ALX-SA6P-IR is a professional-grade PoE infrared illuminator with 6 high-power LEDs, delivering mid-range IR lighting for CCTV and IP surveillance systems. Beam angle models range from 15° to 120°, supporting IR coverage from 12 meters to 80 meters depending on angle and wavelength.
Powered by IEEE 802.3af PoE, the unit is designed for efficient deployment and works especially great in wired IP surveillance environments. It’s available in 850nm semi-covert or 940nm covert versions to suit specific light visibility requirements. A built-in photocell enables automatic day/night switching.
Housed in a rugged aluminum die-cast enclosure with tempered glass panel, it meets IP66 standards for weather protection. This model is ideal for medium-sized applications such as property boundaries, alleyways, and perimeter surveillance zones.
Key Features:
- 6 high-power IR LEDs
- 15° to 120° fixed beam angle models
- Up to 80m IR distance at 15° (850nm)
- 850nm or 940nm versions available
- PoE power input (IEEE 802.3af)
- IP66 aluminum construction
- Automatic photocell activation
- RJ45 with Cat5e output
- Long-life LED system
Specifications:
- LED Type: 6pcs high-power IR LED
- Wavelength: 740nm / 850nm / 940nm
- Beam Angle & IR Distance (850nm):
- 15°: 80m
- 30°: 60m
- 45°: 40m
- 60°: 22m
- 90°: 16m
- 120°: 12m
- Power: 9W
- Voltage: PoE IEEE 802.3af
- Switch: Auto photocell
- Cable: RJ45 with Cat5e 50cm
- Housing: Die-cast aluminum
- Panel: Tempered glass
- Protection: IP66
- Operating Temp: -30°C to 50°C
- Net Weight: 0.53kg
- Gross Weight: 0.6kg
- Dimensions: 140 × 115 × 105 mm
Model Order Info:
850nm Semi-Covert
ALX-SA6P-IR15 15° 70m
ALX-SA6P-IR30 30° 50m
ALX-SA6P-IR45 45° 35m
ALX-SA6P-IR60 60° 18m
ALX-SA6P-IR90 90° 13m
ALX-SA6P-IR120 120° 10m
940nm Fully Covert
ALX-SA6P-9IR15 15° 40m
ALX-SA6P-9IR30 30° 30m
ALX-SA6P-9IR45 45° 18m
ALX-SA6P-9IR60 60° 11m
ALX-SA6P-9IR90 90° 8m
ALX-SA6P-9IR120 120° 5m
