Description
The ALX-H061P-IR is a rugged Power-over-Ethernet (PoE) infrared illuminator designed for long-lasting performance in demanding outdoor surveillance settings. Featuring 6 dot-matrix IR LEDs and a range of fixed beam angle models (15° to 120°), this model delivers IR lighting from 12m to 80m depending on beam configuration.
Built with a corrosion-resistant aluminum body, tempered high-transmittance glass, and a reinforced IK10-rated structure, the ALX-H061P-IR is well suited for installations in prisons, highways, borders, and critical infrastructure zones. Its -40°C to +50°C operating range, energy-efficient circuit, and dual-stage current regulation ensure reliable operation in extreme conditions.
A built-in hexagonal spherical light sensor enables responsive day/night switching, and the unit is PoE-powered for simplified setup.
Key Features:
- 6 dot-matrix high-power IR LEDs
- Beam angle versions from 15° to 120°
- IR range up to 80m (15° @ 850nm)
- 850nm or 940nm wavelength models
- PoE (IEEE 802.3af) powered
- IK10 vandal-resistant housing
- IP66 waterproof and dustproof
- Hexagonal light sensor for accurate detection
- Extended temperature tolerance
Specifications:
- LED Type: 6pcs dot-matrix IR LED
- Wavelength: 740nm / 850nm / 940nm
- Beam Angle & IR Distance (850nm):
- 15°: 80m
- 30°: 60m
- 45°: 40m
- 60°: 22m
- 90°: 16m
- 120°: 12m
- Voltage: PoE (IEEE 802.3af)
- Power Consumption: 12W (850nm)
- Day/Night Switch: Built-in photocell
- Cable: RJ45 jack with 50cm Cat5e
- Housing: Aluminum, IP66 rated

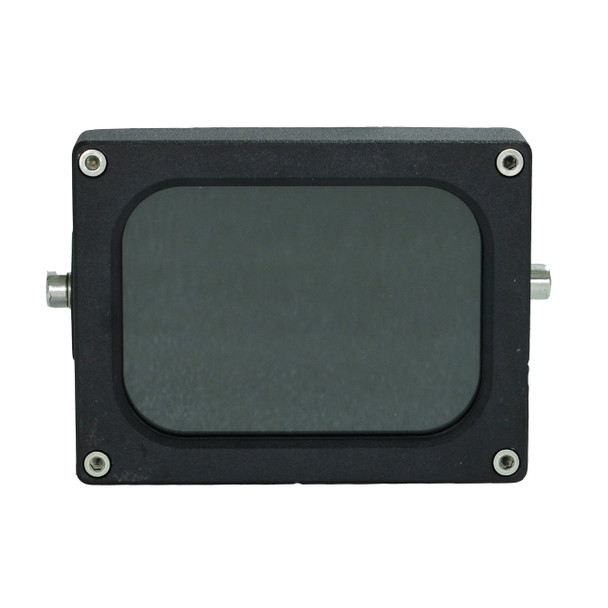

- Panel: Toughened high-transmittance glass
- IK Rating: IK10
- Operating Temp: -40°C to 50°C

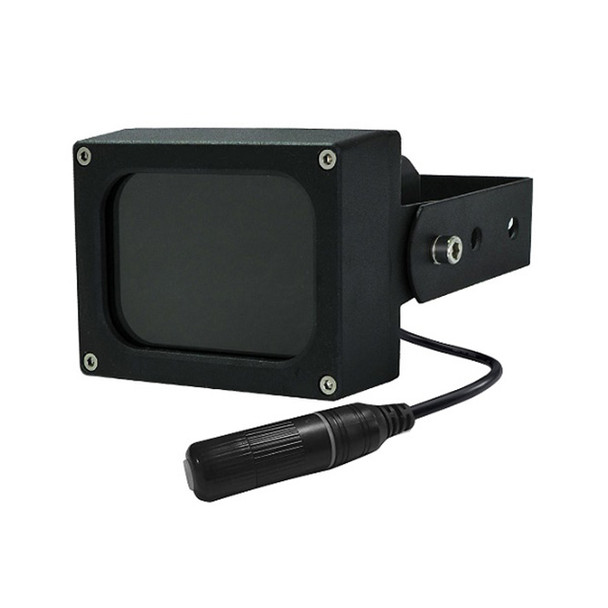

- Mounting: Wall mount “U” bracket
- Net Weight: 1.0kg
- Gross Weight: 1.3kg
- Dimensions: 105 × 80 × 88 mm
- Packing Size: 180 × 160 × 135 mm
Model Order Info:
850nm Semi-Covert
ALX-H061P-IR15 15° 80m
ALX-H061P-IR30 30° 60m
ALX-H061P-IR45 45° 40m
ALX-H061P-IR60 60° 22m
ALX-H061P-IR90 90° 16m
ALX-H061P-IR120 120° 12m
940nm Fully Covert
ALX-H061P-9IR15 15° 40m
ALX-H061P-9IR30 30° 30m
ALX-H061P-9IR45 45° 20m
ALX-H061P-9IR60 60° 11m
ALX-H061P-9IR90 90° 8m
ALX-H061P-9IR120 120° 6m
