Description

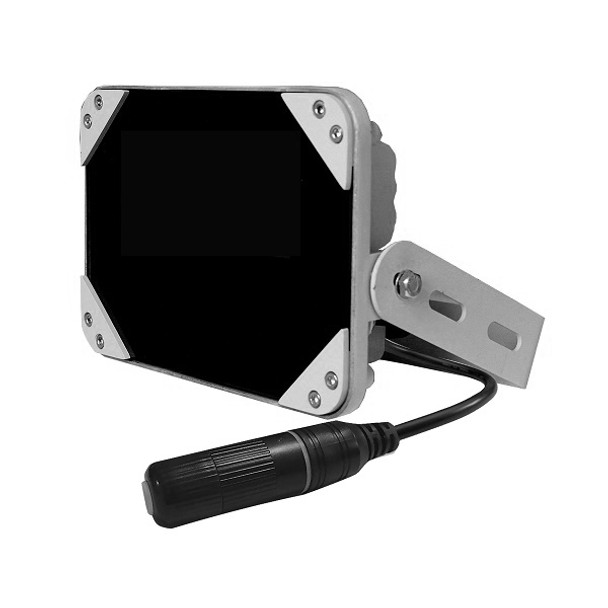

The ALX-SE6P-IR is a high-output, industrial-grade IR illuminator featuring six high-efficiency LEDs and PoE (IEEE 802.3af) power input. With selectable 850nm or 940nm wavelengths, this model is designed for demanding CCTV and IP surveillance environments, providing strong infrared lighting from 12m to 80m depending on beam angle.
Its vandal-resistant IK10-rated aluminum housing and IP66 weatherproof construction make the ALX-SE6P-IR ideal for exposed or high-risk areas such as gates, warehouses, correctional facilities, or transit stations. Beam angles from 15° to 120° are available, offering flexible lighting coverage.
A built-in photocell provides automatic day/night light switching, while the unit is powered by standard PoE for streamlined installation. High-efficiency thermal design supports operation in extreme temperatures.
Key Features:
- 6 high-power IR LEDs
- Beam angle versions: 15°, 30°, 45°, 60°, 90°, 120°
- IR range up to 80m (15° @ 850nm)
- Available in 850nm or 940nm wavelengths
- IK10-rated vandal-resistant aluminum housing
- IP66 weatherproof and wide temperature tolerance
- PoE power input (IEEE 802.3af)
- Automatic photocell day/night activation
- RJ45 + Cat5e 50cm cable
- Silver or Black Housing Option
Specifications:
- LED Type: 6pcs high-power IR LED
- Wavelength Options: 740nm / 850nm / 940nm
- Beam Angle & IR Distance (850nm):
- 15°: 80m
- 30°: 60m
- 45°: 40m
- 60°: 22m
- 90°: 16m
- 120°: 12m
- Power: 9W
- Voltage: PoE (IEEE 802.3af)
- Protection: IP66
- IK Rating: IK10
- Switch: Photocell (auto day/night)
- Housing: Die-cast aluminum
- Panel: Tempered glass
- Cable: RJ45 + 50cm Cat5e
- Operating Temp: -40°C to +60°C
- Net Weight: 0.53kg
- Gross Weight: 0.6kg
- Dimensions: 140 × 115 × 105 mm
Model Order Info:
850nm Semi-Covert
ALX-SE6P-IR15 15° 80m
ALX-SE6P-IR30 30° 60m
ALX-SE6P-IR45 45° 40m
ALX-SE6P-IR60 60° 22m
ALX-SE6P-IR90 90° 16m
ALX-SE6P-IR120 120° 12m
940nm Fully Covert
ALX-SE6P-9IR15 15° 40m
ALX-SE6P-9IR30 30° 30m
ALX-SE6P-9IR45 45° 18m
ALX-SE6P-9IR60 60° 11m
ALX-SE6P-9IR90 90° 8m
ALX-SE6P-9IR120 120° 5m
