Description

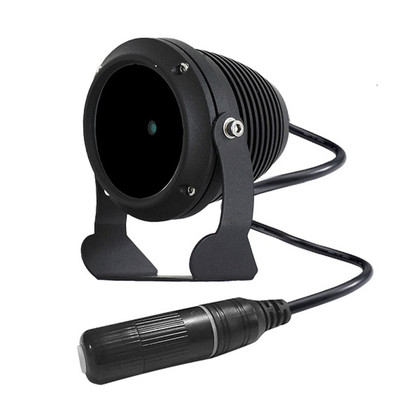

The ALX-SA3P-IR is a PoE-powered compact infrared illuminator designed to enhance low-light surveillance for indoor or outdoor IP security camera systems. Equipped with 3 high-efficiency IR LEDs and selectable beam angles from 15° to 120°, it provides IR coverage from 8 meters up to 60 meters depending on the model angle.
Built for easy integration and installation, the unit operates using IEEE 802.3af PoE and includes an automatic day/night photocell switch for smart energy use. It’s available in 850nm semi-covert or 940nm covert wavelength variants to suit a range of visibility and privacy requirements.
Its lightweight aluminum die-cast housing, IP66 weatherproof rating, and compact size make it ideal for discrete light placement in residential or commercial environments. A Cat5e cable (50cm) and RJ45 interface ensure simple network integration.
Key Features:
- 3 high-power IR LEDs
- PoE (IEEE 802.3af) powered
- Beam angle options from 15° to 120°
- IR range up to 60m at 15° (850nm)
- Popular as 850nm semi-covert or 940nm covert versions
- IP66-rated aluminum die-cast body
- Automatic day/night switching
- Compact and lightweight form
- RJ45 + Cat5e 50cm connection
Specifications:
- LED Type: 3pcs high-power IR LED
- Wavelength: 740nm / 850nm / 940nm (options)
- Beam Angle & IR Distance (850nm):
- 15°: 60m
- 30°: 40m
- 45°: 30m
- 60°: 16m
- 90°: 11m
- 120°: 8m
- Power: 5W
- Voltage: PoE IEEE 802.3af
- Switch: Auto day/night photocell
- Cable: RJ45 with Cat5e 50cm
- Operating Temp: -30°C to 50°C
- Protection: IP66
- Panel: Tempered glass
- Housing: Die-cast aluminum
- Color: Black or Silver
- Net Weight: 0.35kg
- Gross Weight: 0.4kg
- Packing Dimensions: 130 × 110 × 100 mm
Model Order Info:
850nm Semi-Covert
ALX-SA3P-IR15 15° 60m
ALX-SA3P-IR30 30° 40m
ALX-SA3P-IR45 45° 30m
ALX-SA3P-IR60 60° 16m
ALX-SA3P-IR90 90° 11m
ALX-SA3P-IR120 120° 8m
940nm Fully Covert
ALX-SA3P-9IR15 15° 28m
ALX-SA3P-9IR30 30° 20m
ALX-SA3P-9IR45 45° 12m
ALX-SA3P-9IR60 60° 9m
ALX-SA3P-9IR90 90° 5m
ALX-SA3P-9IR120 120° 3m
