Description

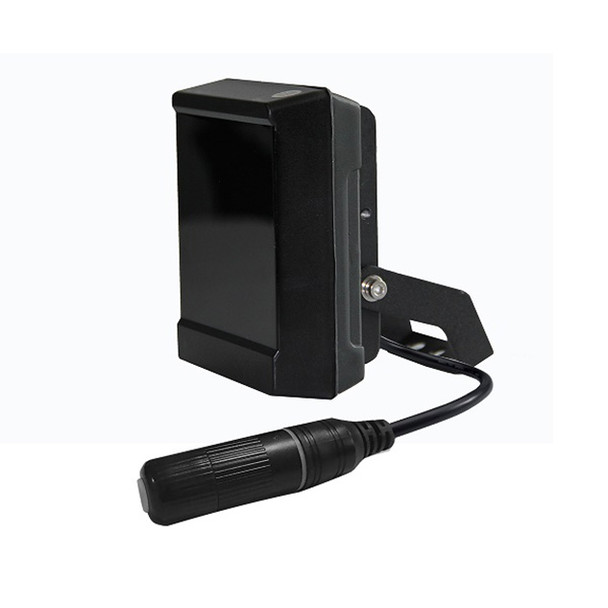

The ALX-SG6P-IR Vandal-Proof IR Illuminator is a compact, PoE-powered infrared lighting device designed for advanced IP surveillance camera systems. It maintains the same rugged protection as other models in the line, with an IK10-rated housing and IP66-certified weatherproof construction to withstand harsh outdoor environments and potential vandalism. This model is ideal for integration with network security cameras, especially where cable management or centralized power is desired.
Each ALX-SG6P-IR unit is available in specific model variants, offering fixed beam angles from 15° to 120° and IR wavelength options in 850nm (semi-covert) or 940nm (covert). Unlike universal products, these tailored versions ensure optimal lighting for specific scene types—from long corridor monitoring to general area illumination. The unit draws power via IEEE 802.3af PoE, simplifying installation and eliminating the need for separate power lines.
With a high-efficiency 6-LED IR array and adjustable output power up to 10W, the illuminator supports lighting distances up to 80 meters at 850nm. It features an integrated photocell for automatic night activation and includes a weather-sealed RJ45 jack with Cat5e cable for secure, easy power connection. Built for resilience and performance, the ALX-SG6P-IR is a versatile and efficient solution for demanding infrared surveillance lighting applications.
Key Features:
- IK10-rated aluminum housing with IP66 weatherproofing
- PoE IEEE 802.3af input, no separate power needed
- 850nm semi-covert or 940nm covert IR LED versions
- Beam angle models available from 15° to 120°
- Up to 80m (15° 850nm) Infrared Illumination
- 10W adjustable power output
- Automatic IR switch for day/night functionality
- Includes wall-mount bracket
- Durable and compact for outdoor and indoor use
Specifications:
- LED Type: 6 pieces high-power IR LED
- Wavelength: 740nm / 850nm / 940nm (options - 850nm default)
- Beam Angle: 15° to 120°
- Distance: 5m to 80m (940nm/850nm)
- Voltage: PoE IEEE 802.3af
- Cable: IP66 RJ45 jack with CAT5e 50cm
- Power: 10W (adjustable)
- Switch: Automatic day/night
- Temperature: -30°C to 50°C
- Panel: Vandal-proof PC
- Housing: Die-cast aluminum
- Weight: N.W. 0.53KG, G.W. 0.6KG
- Packing Dimension: 145×135×95mm
Model Order Info:
850nm Semi-Covert
ALX-SG6P-IR15 15° 80m
ALX-SG6P-IR30 30° 60m
ALX-SG6P-IR45 45° 40m
ALX-SG6P-IR60 60° 22m
ALX-SG6P-IR90 90° 16m
ALX-SG6P-IR120 120° 12m
940nm Covert
ALX-SG6P-9IR15 15° 40m
ALX-SG6P-9IR30 30° 30m
ALX-SG6P-9IR45 45° 18m
ALX-SG6P-9IR60 60° 11m
ALX-SG6P-9IR90 90° 8m
ALX-SG6P-9IR120 120° 5m
