Description

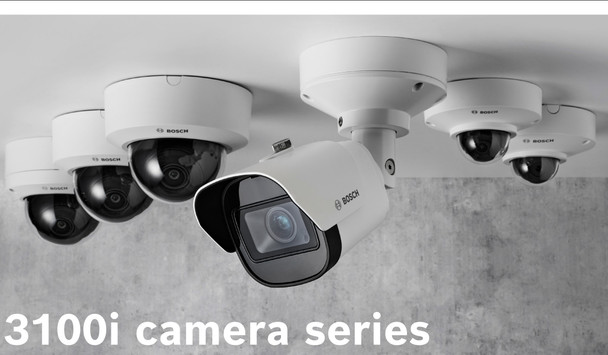

The Bosch IQsight FLEXIDOME micro 3100i outdoor 5MP camera series provides compact, rugged outdoor surveillance with higher image detail than 2MP models and a choice of fixed lens options for wide, balanced, or focused exterior coverage. This consolidated outdoor 5MP page includes NUE-3703-F02, NUE-3703-F04, and NUE-3703-F06, giving installers three lens/FOV choices within the same Bosch IQsight FLEXIDOME micro 3100i outdoor platform.
The NUE-3703-F02 uses a 2.49mm wide-angle lens with a 131.2° horizontal field of view for broad exterior coverage of entrances, patios, walkways, small parking areas, retail storefronts, and building perimeters. The NUE-3703-F04 uses a 3.2mm lens with a 100.8° horizontal field of view for balanced outdoor monitoring. The NUE-3703-F06 uses a 6mm lens with a 56.1° horizontal field of view for tighter monitoring of doors, gates, side entrances, exterior corridors, and focused perimeter views.
Each Bosch IQsight FLEXIDOME micro 3100i outdoor 5MP model captures up to 2592 x 1944 video at 30fps and supports 120dB High Dynamic Range for improved image detail in scenes with sun, shade, reflections, and variable outdoor lighting. The higher 5MP resolution gives the NUE-3703-F02, NUE-3703-F04, and NUE-3703-F06 stronger forensic detail than 2MP models while maintaining a compact dome format.
Built-in Bosch IQsight IVA Pro Buildings provides deep-learning-based detection and tracking of people and vehicles. The camera supports intelligent rules including object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, objects stopping or starting to move, and tamper detection. This makes the NUE-3703-F02, NUE-3703-F04, and NUE-3703-F06 useful for event-driven exterior monitoring and faster search through recorded video.
The Bosch IQsight FLEXIDOME micro 3100i outdoor 5MP series supports H.265, H.264, and M-JPEG compression, Bosch Intelligent Streaming, microSD edge recording up to 2TB, Secure Element / TPM-based protection, signed firmware, secure boot, TLS encryption, local storage encryption, and ONVIF Profile S/G/T/M interoperability.
Designed for outdoor operation, the NUE-3703-F02, NUE-3703-F04, and NUE-3703-F06 feature an aluminum alloy housing, dehumidifying membrane, waterproof connection area, IP66 weather protection, IK10 impact resistance, -30°C to +50°C operating range, PoE Class 3 power, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME micro 3100i outdoor compact dome camera series
• Consolidated 5MP outdoor models: NUE-3703-F02, NUE-3703-F04, and NUE-3703-F06
• 5MP resolution, 2592 x 1944
• Multiple fixed lens options for wide, balanced, and focused outdoor views
• NUE-3703-F02 with 2.49mm lens and 131.2° horizontal field of view
• NUE-3703-F04 with 3.2mm lens and 100.8° horizontal field of view
• NUE-3703-F06 with 6mm lens and 56.1° horizontal field of view
• High Dynamic Range up to 120dB
• IVA Pro Buildings analytics included
• Deep-learning-based person and vehicle detection
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• Secure Element with TPM functionality
• Signed firmware and secure boot
• TLS 1.2 / TLS 1.3 encryption
• ONVIF Profile S, G, T, and M compliant
• IP66 weather protection
• IK10 impact protection
• Aluminum alloy outdoor housing
• Dehumidifying membrane and waterproof connection area
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 5MP
• Effective Pixels: 2592 x 1944
• Sensor Type: 1/2.7" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.15 lux
• Dynamic Range: 120dB HDR
Lens / FOV Selection:
• NUE-3703-F02: 2.49mm lens, F1.7, 131.2° horizontal FOV, 91.4° vertical FOV
• NUE-3703-F04: 3.2mm lens, F1.6, 100.8° horizontal FOV, 69.2° vertical FOV
• NUE-3703-F06: 6mm lens, F1.9, 56.1° horizontal FOV, 39.2° vertical FOV
DORI Coverage:
NUE-3703-F02 / 2.49mm:
• Detection: 24m / 77ft
• Observation: 9m / 30ft
• Recognition: 5m / 15ft
• Identification: 2m / 7ft
NUE-3703-F04 / 3.2mm:
• Detection: 43m / 141ft
• Observation: 17m / 56ft
• Recognition: 9m / 30ft
• Identification: 4m / 14ft
NUE-3703-F06 / 6mm:
• Detection: 97m / 319ft
• Observation: 39m / 127ft
• Recognition: 19m / 64ft
• Identification: 10m / 33ft
Analytics:
• IVA Pro Buildings
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Tamper Detection
• Up to 16 Simultaneous Alarm Rules
Video / Network / Security:
• Compression: H.265 / H.264 / M-JPEG
• Multiple configurable streams
• Bosch Intelligent Streaming
• Camera Processing Latency: <120ms
• Signal-to-Noise Ratio: >55dB
• Ethernet: 10/100BASE-T
• ONVIF Profile S / G / T / M
• Platform: CPP14.3
• Secure Element: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Industrial SD card health monitoring support
Power / Mechanical:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Power Consumption: 3.2W typical / 4.5W maximum
• Dimensions: 123mm x 69.2mm
• Weight: 480g
• Housing: Aluminum alloy with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate with anti-scratch coating
• Color: Signal White, RAL 9003
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -50°C to +70°C
• Weather Protection: IP66
• Impact Protection: IK10
• Mounting Type: Surface-mounted
• Country of Origin: Thailand
Model Variants:
• NUE-3703-F02 – 5MP Outdoor Micro Dome, 2.49mm Lens, 131.2° FOV, IP66, IK10
• c – 5MP Outdoor Micro Dome, 3.2mm Lens, 100.8° FOV, IP66, IK10
• NUE-3703-F06 – 5MP Outdoor Micro Dome, 6mm Lens, 56.1° FOV, IP66, IK10
Lens Selection Guide:
• Choose NUE-3703-F02 for the widest 5MP outdoor coverage
• Choose NUE-3703-F04 for balanced 5MP exterior coverage
• Choose NUE-3703-F06 for tighter 5MP focused outdoor views
Compatible Accessories:
• NDA-3082-PIP – Pendant Interface Plate
• NDA-5080-CMB – 45° Corner Mount Box
• NDA-5081-PLEN – In-Ceiling Plenum Rated Kit
• NDA-MCBNC-01M – Analog Cable, BNC Connector
• NDA-3083-LWMT – L-Shape Wall Mount
• NDA-U-CBBS – Conduit Back Box
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
Default selection is NUE-3703-F04. Specify NUE-3703-F02 or NUE-3703-F06 if a different lens/FOV is required.
