Description

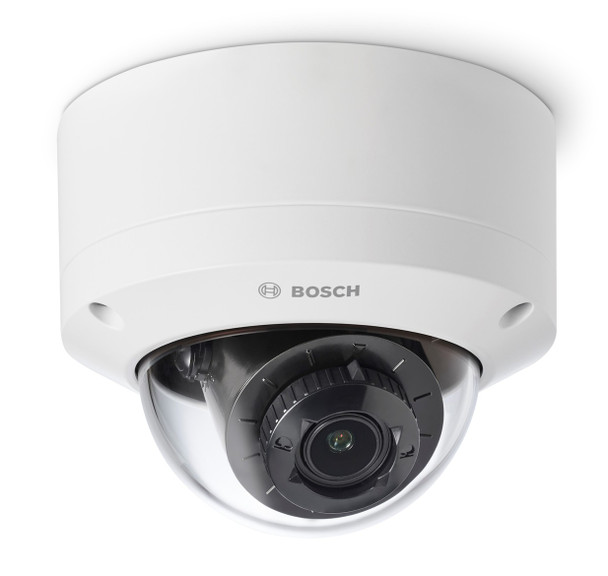

The Bosch IQsight FLEXIDOME outdoor 5100i NDE-5703-A is a professional 5MP outdoor dome IP camera built for exterior surveillance applications requiring higher image detail than 1080p, intelligent analytics, rugged weather protection, and flexible optical coverage. The NDE-5703-A combines 5MP video, Bosch Starlight camera technology, a 3.2-10.5mm motorized P-iris lens, 120dB WDR, IVA Pro analytics, H.265 compression, two-way audio support, Electronic Image Stabilization, edge recording, and Bosch cybersecurity in a durable outdoor dome platform.
With 2688 x 1944 effective resolution and up to 30fps performance, the Bosch IQsight FLEXIDOME outdoor 5100i NDE-5703-A is well suited for commercial buildings, schools, retail exteriors, parking areas, transportation facilities, campuses, warehouses, and general outdoor surveillance requiring more detail than 2MP models. The motorized 3.2-10.5mm lens provides a 96° to 29° horizontal field of view for flexible coverage from broad outdoor scenes to tighter monitored areas.
Bosch Starlight technology supports dependable low-light performance, while 120dB WDR improves visibility in difficult outdoor lighting conditions with sunlight, shadows, reflections, entrances, and headlights. Automatic Varifocal zoom/focus adjustment makes installation easier by allowing lens setup without opening the camera.
Integrated Bosch IQsight IVA Pro Buildings and IVA Pro Privacy provide deep-learning-based person and vehicle detection. The NDE-5703-A supports rules including line crossing, object in field, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional IVA Pro analytics licenses allow expansion for perimeter, traffic, appearance, PPE, and visual gun detection use cases.
Designed for outdoor deployments, the NDE-5703-A includes IP66 and NEMA Type 4X protection, IK10 impact resistance, aluminum housing with dehumidifying membrane, waterproof connection area, -40°C to +55°C operation, ONVIF Profile S/G/T/M integration, local microSD recording up to 2TB, signed firmware, secure boot, TPM security, TLS encryption, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME outdoor 5100i fixed dome IP camera
• Model: NDE-5703-A
• 5MP resolution, 2688 x 1944 effective pixels
• 3.2-10.5mm motorized P-iris lens
• Bosch Starlight low-light camera technology
• High Dynamic Range up to 120dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Four independent encoder streams
• Electronic Image Stabilization
• Two-way audio support
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP66 and NEMA Type 4X weather protection
• IK10 impact resistance
• PoE, 24VAC, and 12VDC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 5MP
• Effective Pixels: 2688 x 1944
• Sensor Type: 1/2.7" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.044 lux
• Monochrome Sensitivity: 0.010 lux
• Dynamic Range: 120dB WDR
• Measured Dynamic Range: 105dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 96° to 29°
• Vertical Field of View: 71° to 22°
• Day / Night: Switchable IR-Cut Filter
DORI Coverage:
• Detection: 48m to 200m
• Observation: 19m to 79m
• Recognition: 10m to 40m
• Identification: 5m to 20m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Camera Latency: <120ms at 5MP30
• GOP Structure: IP, IBP, IBBP
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
• Intelligent Defog: Supported
• Automatic Image Rotation: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, and Visual Gun Detection
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Video Authentication: Checksum, MD5, SHA-1, SHA-256
• Firmware Protection: Signed firmware and secure boot
Power:
• Input Voltage: PoE, 24VAC ±10%, 12VDC ±10%
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum PoE Consumption: 5.2W / 6.2W
Environmental & Mechanical:
• Weather Rating: IP66 / NEMA Type 4X
• Impact Rating: IK10
• Operating Temperature: -40°C to +55°C
• Cold Start Temperature: -20°C
• Housing Material: Aluminum with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate with anti-scratch coating
• Dimensions: 148mm x 122mm
• Weight: 1130g / 2.49lb
• Color: RAL 9003
• Country of Origin: Thailand
Model:
• NDE-5703-A – 5MP Outdoor Dome, 3.2-10.5mm Lens, IP66, IK10, Non-IR
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-PIPW – Pendant Interface Plate with Weather Cap
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5070-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBL – Clear Replacement Bubble
• NDA-5070-TBL – Tinted Bubble
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS / NDA-U-PMAL – Pole Mount Adapters
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT / NDA-U-WMTG – Pendant Wall Mount Options
• NDA-U-PMT / NDA-U-PMTE / NDA-U-PMTG / NDA-U-PMTS – Pendant Pipe Mount Options
• NDA-U-RMT – Pendant Parapet Mount
• NPD-3001-WAP – Portable Wireless Installation Tool
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
