Description

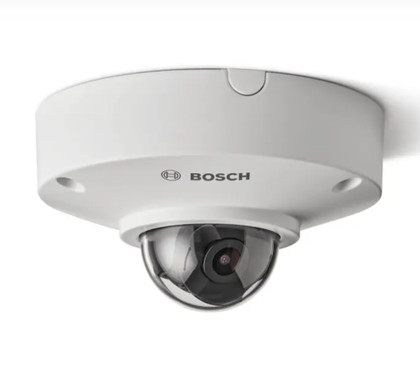

The Bosch IQsight FLEXIDOME micro 3100i indoor 2MP camera series is a compact fixed dome IP surveillance solution designed for discreet indoor security applications where reliable image quality, intelligent analytics, flexible lens selection, and a small form factor are important. This consolidated 2MP indoor series includes NUV-3702-F02, NUV-3702-F04, NUV-3702-F04H, and NUV-3702-F06, giving installers a choice of wide-angle, standard wide-angle, HDMI-enabled, and narrower-view 2MP models within the same Bosch IQsight FLEXIDOME micro 3100i indoor platform.
The NUV-3702-F02 provides a 2.49mm ultra-wide 137° horizontal field of view for broad room coverage, small offices, classrooms, retail spaces, reception areas, and general indoor situational awareness. The NUV-3702-F04 uses a 3.2mm lens with a 106° horizontal field of view for balanced indoor coverage, while the NUV-3702-F04H adds HDMI output to the same 2MP 106° lens package. The NUV-3702-F06 uses a 6mm lens with a tighter 58.5° horizontal field of view for corridors, doorways, counters, stairwells, and focused interior monitoring.
Each Bosch IQsight FLEXIDOME micro 3100i indoor 2MP model captures Full HD 1920 x 1080 video at up to 30fps and supports High Dynamic Range up to 120dB for improved detail in scenes with bright windows, shadows, backlighting, and mixed indoor lighting. The compact dome design makes the NUV-3702-F02, NUV-3702-F04, NUV-3702-F04H, and NUV-3702-F06 well suited for discreet security camera installations where a lower-profile appearance is preferred.
Built-in Bosch IQsight IVA Pro Buildings provides deep-learning-based detection and tracking of people and vehicles. The analytics engine supports alarm rules such as object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. This helps reduce false alarms and supports faster forensic review of recorded video.
The Bosch IQsight FLEXIDOME micro 3100i indoor 2MP series supports H.265, H.264, and M-JPEG compression with Bosch Intelligent Streaming to reduce bandwidth and storage needs. Local edge recording supports microSD cards up to 2TB, while the built-in Secure Element with TPM functionality, signed firmware, secure boot, TLS encryption, local storage encryption, and ONVIF Profile S/G/T/M support provide enterprise-grade cybersecurity and integration flexibility.
With compact dimensions, PoE power, IK08 impact protection, NDAA compliance, and compatibility with Bosch modular mounting accessories, the NUV-3702-F02, NUV-3702-F04, NUV-3702-F04H, and NUV-3702-F06 are strong choices for professional indoor surveillance projects requiring compact 2MP dome cameras with model-specific lens choices.
Key Features:
• Bosch IQsight FLEXIDOME micro 3100i indoor compact dome camera series
• Consolidated 2MP indoor models: NUV-3702-F02, NUV-3702-F04, NUV-3702-F04H, and NUV-3702-F06
• 2MP Full HD resolution, 1920 x 1080
• Multiple fixed lens options for wide, standard, and focused views
• NUV-3702-F02 with 2.49mm lens and 137° horizontal field of view
• NUV-3702-F04 with 3.2mm lens and 106° horizontal field of view
• NUV-3702-F04H with 3.2mm lens, 106° field of view, and HDMI
• NUV-3702-F06 with 6mm lens and 58.5° horizontal field of view
• High Dynamic Range up to 120dB
• IVA Pro Buildings analytics included
• Deep-learning-based person and vehicle detection
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• Secure Element with TPM functionality
• Signed firmware and secure boot
• TLS 1.2 / TLS 1.3 encryption
• ONVIF Profile S, G, T, and M compliant
• Compact discreet indoor design
• IK08 impact protection
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.1 lux
• Dynamic Range: 120dB HDR
Lens / FOV Selection:
• NUV-3702-F02: 2.49mm lens, F1.7, 137° horizontal FOV, 72.8° vertical FOV
• NUV-3702-F04: 3.2mm lens, F1.6, 106° horizontal FOV, 56° vertical FOV
• NUV-3702-F04H: 3.2mm lens, F1.6, 106° horizontal FOV, 56° vertical FOV, HDMI
• NUV-3702-F06: 6mm lens, F1.9, 58.5° horizontal FOV, 31.3° vertical FOV
DORI Coverage:
NUV-3702-F02 / 2.49mm:
• Detection: 15m / 50ft
• Observation: 6m / 20ft
• Recognition: 3m / 10ft
• Identification: 2m / 7ft
NUV-3702-F04 and NUV-3702-F04H / 3.2mm:
• Detection: 29m / 95ft
• Observation: 11m / 38ft
• Recognition: 6m / 20ft
• Identification: 3m / 10ft
NUV-3702-F06 / 6mm:
• Detection: 69m / 225ft
• Observation: 27m / 89ft
• Recognition: 14m / 45ft
• Identification: 7m / 23ft
Analytics:
• IVA Pro Buildings
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Tamper Detection
• Up to 16 Simultaneous Alarm Rules
Video / Network / Security:
• Compression: H.265 / H.264 / M-JPEG
• Multiple configurable streams
• Bosch Intelligent Streaming
• Camera Processing Latency: <120ms
• Signal-to-Noise Ratio: >55dB
• Ethernet: 10/100BASE-T
• ONVIF Profile S / G / T / M
• Platform: CPP14.3
• Secure Element: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Industrial SD card health monitoring support
Power / Mechanical:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Power Consumption: 3.2W typical / 4.5W maximum
• Dimensions: 110mm x 66mm
• Weight: 230g
• Housing: Polycarbonate
• Bubble: Clear polycarbonate with anti-scratch coating
• Color: Signal White, RAL 9003
• Operating Temperature: 0°C to +40°C
• Impact Protection: IK08
• Mounting Type: Surface-mounted
• Country of Origin: Thailand
Model Variants:
• NUV-3702-F02 – 2MP Indoor Micro Dome, 2.49mm Lens, 137° FOV
• NUV-3702-F04 – 2MP Indoor Micro Dome, 3.2mm Lens, 106° FOV
• NUV-3702-F04H – 2MP Indoor Micro Dome, 3.2mm Lens, 106° FOV, HDMI
• NUV-3702-F06 – 2MP Indoor Micro Dome, 6mm Lens, 58.5° FOV
Lens Selection Guide:
• Choose NUV-3702-F02 for the widest 137° room coverage
• Choose NUV-3702-F04 for balanced 106° general indoor coverage
• Choose NUV-3702-F04H when the 106° model is needed with HDMI output
• Choose NUV-3702-F06 for narrower 58.5° focused indoor views
Compatible Accessories:
• NDA-3081-4S – 4S Adapter Plate
• NDA-5081-TM – 20° Tilt Mount
• NDA-5081-PIP – Pendant Interface Plate
• NDA-3081-PC – Paintable Cover
• NDA-5080-CMB – 45° Corner Mount Box
• NDA-5081-PLEN – In-Ceiling Plenum Rated Kit
• NDA-MCBNC-01M – Analog Cable, BNC Connector
• NDA-3083-LWMT – L-Shape Wall Mount
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
Default selection is NUV-3702-F04. Specify NUV-3702-F02, NUV-3702-F04H, or NUV-3702-F06 if a different lens or HDMI version is required.
