Description

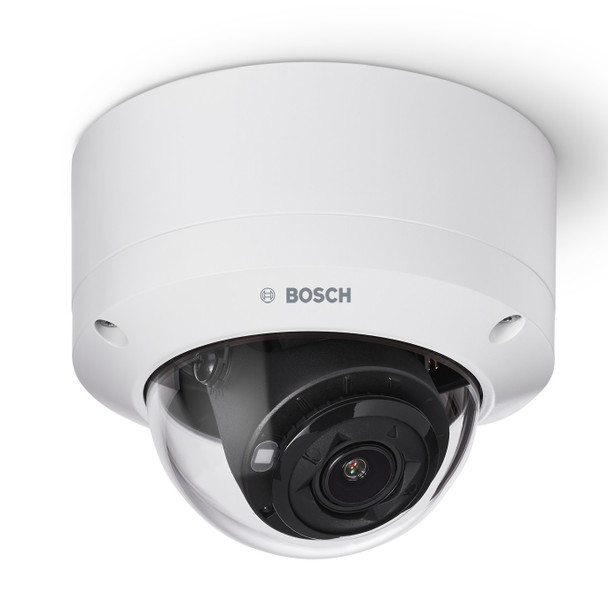

The Bosch IQsight FLEXIDOME outdoor 5100i IR NDE-5703-AL is a professional 5MP outdoor dome IP camera designed for 24/7 exterior surveillance with integrated infrared illumination, intelligent analytics, higher-resolution video, and rugged environmental protection. The NDE-5703-AL combines 5MP imaging, Bosch Starlight camera technology, a 3.2-10.5mm motorized P-iris lens, 120dB WDR, IVA Pro analytics, built-in 850nm intelligent IR up to 45m, H.265 compression, audio and alarm I/O, edge recording, and Bosch cybersecurity.
With 2688 x 1944 effective pixels and up to 30fps operation, the Bosch IQsight FLEXIDOME outdoor 5100i IR NDE-5703-AL provides more detail than 2MP models while retaining strong nighttime visibility. It is well suited for commercial buildings, schools, warehouses, parking areas, entrances, walkways, campuses, and outdoor facilities where both high-detail daytime surveillance and integrated IR night monitoring are required.
The 3.2-10.5mm motorized P-iris lens provides a 96° to 29° horizontal field of view for flexible scene coverage. Integrated intelligent IR provides up to 45m / 148ft of 850nm illumination and can adjust automatically or manually to reduce overexposure. Bosch Starlight technology and 120dB WDR help maintain usable video in low-light, backlit, and high-contrast scenes.
Bosch IQsight IVA Pro Buildings and IVA Pro Privacy come included, supporting deep-learning-based person and vehicle classification. The NDE-5703-AL supports alarm rules such as line crossing, object in field, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional IVA Pro licenses expand analytics for perimeter, traffic, appearance, PPE, license plate, vehicle make/model, dangerous goods signs, visual gun detection, and intelligent audio analytics.
The NDE-5703-AL includes an integrated digital MEMS microphone, audio line input/output, alarm input/output, analog video output for hybrid migration, USB-C wireless commissioning support, IP66 and NEMA Type 4X protection, IK10 impact resistance, an aluminum housing with dehumidifying membrane, waterproof connection area, -40°C to +55°C operation, ONVIF Profile S/G/T/M support, TPM security, secure boot, signed firmware, TLS encryption, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME outdoor 5100i IR fixed dome IP camera
• Model: NDE-5703-AL
• 5MP resolution, 2688 x 1944 effective pixels
• 3.2-10.5mm motorized P-iris lens
• Built-in intelligent IR illumination up to 45m / 148ft
• 850nm high-efficiency IR LED array
• 0 lux operation with IR
• Bosch Starlight low-light camera technology
• High Dynamic Range up to 120dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• Integrated digital MEMS microphone
• Audio line input/output
• Alarm input/output
• Analog video output for hybrid migration
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Electronic Image Stabilization
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• IP66 and NEMA Type 4X weather protection
• IK10 impact resistance
• PoE, 24VAC, and 12VDC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 5MP
• Effective Pixels: 2688 x 1944
• Sensor Type: 1/2.7" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.044 lux
• Monochrome Sensitivity: 0.010 lux
• With IR: 0 lux
• Dynamic Range: 120dB WDR
• Measured Dynamic Range: 105dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 96° to 29°
• Vertical Field of View: 71° to 22°
• Day / Night: Switchable IR-Cut Filter
Night Vision:
• IR Function: On / Off / Auto / Intelligent
• IR Distance: 45m / 148ft
• IR Wavelength: 850nm
• IR LED Array: 4 high-efficiency LEDs
• IR Intensity: Auto / Manual Adjustable
DORI Coverage:
• Detection: 48m to 200m
• Observation: 19m to 79m
• Recognition: 10m to 40m
• Identification: 5m to 20m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Camera Latency: <120ms at 5MP30
• GOP Structure: IP, IBP, IBBP
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
• Intelligent Defog: Supported
• Automatic Image Rotation: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, LPR, MMR, LPRX, DGS, Visual Gun Detection, and Intelligent Audio Analytics
Audio & I/O:
• Integrated Digital MEMS Microphone
• Audio Line Input
• Audio Line Output
• Full Duplex / Half Duplex Audio
• Alarm Input: 1
• Alarm Output: 1
• Analog Video Output: SMB connector, CVBS
• USB-C Port for Wireless Setup Dongle
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware and secure boot
Power:
• Input Voltage: PoE, 24VAC ±10%, 12VDC ±10%
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum PoE Consumption: 5.2W / 10.06W
Environmental & Mechanical:
• Weather Rating: IP66 / NEMA Type 4X
• Impact Rating: IK10
• Operating Temperature: -40°C to +55°C
• Cold Start Temperature: -20°C
• Housing Material: Aluminum with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate with anti-scratch and anti-reflection coating
• Dimensions: 148mm x 122mm
• Weight: 1130g / 2.49lb
• Color: RAL 9003
• Country of Origin: Thailand
Model:
• NDE-5703-AL – 5MP Outdoor Dome, 3.2-10.5mm Lens, IR, IP66, IK10, I/O
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-PIPW – Pendant Interface Plate with Weather Cap
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5070-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBLI – Clear Replacement Bubble for IR Models
• NDA-5070-TBLI – Tinted Bubble for IR Models
• NDA-MCSMB-03M – SMB to BNC Cable, 0.3m
• NDA-MCSMB-30M – SMB to BNC Cable, 3.0m
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS / NDA-U-PMAL – Pole Mount Adapters
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT / NDA-U-WMTG – Pendant Wall Mount Options
• NDA-U-PMT / NDA-U-PMTE / NDA-U-PMTG / NDA-U-PMTS – Pendant Pipe Mount Options
• NDA-U-RMT – Pendant Parapet Mount
• NPD-3001-WAP – Portable Wireless Installation Tool
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
