Description

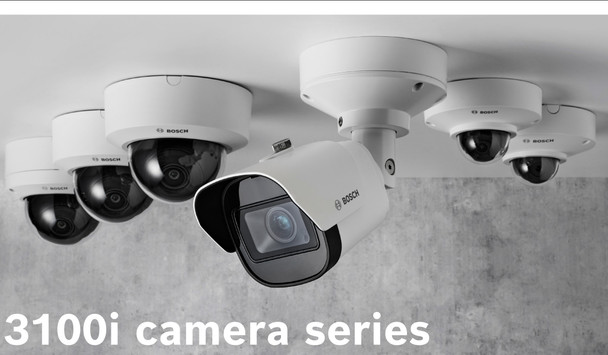

The Bosch IQsight FLEXIDOME micro 3100i outdoor 2MP camera series is a compact, rugged fixed dome IP surveillance solution designed for discreet exterior security, building entrances, walkways, outdoor public areas, small parking areas, and vandal-prone indoor or outdoor installations. This consolidated 2MP outdoor page includes NUE-3702-F02, NUE-3702-F04, and NUE-3702-F06, giving users three fixed lens options within the same Bosch IQsight FLEXIDOME micro 3100i outdoor platform.
The NUE-3702-F02 uses a 2.49mm wide-angle lens with a 137° horizontal field of view for broad outdoor scene coverage. The NUE-3702-F04 uses a 3.2mm lens with a 106° horizontal field of view for balanced exterior coverage at doors, walkways, and building perimeters. The NUE-3702-F06 uses a 6mm lens with a tighter 58.5° horizontal field of view for more focused monitoring of gates, entrances, side doors, exterior corridors, and other targeted outdoor areas.
Each Bosch IQsight FLEXIDOME micro 3100i outdoor 2MP model captures Full HD 1920 x 1080 video at up to 30fps and supports 120dB High Dynamic Range for outdoor scenes with bright sun, shade, reflections, and backlighting. The NUE-3702-F02, NUE-3702-F04, and NUE-3702-F06 are designed for compact installations where durable outdoor construction and discreet appearance are both important.
Built-in Bosch IQsight IVA Pro Buildings provides deep-learning-based detection and tracking of people and vehicles. Supported analytics include object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, objects stopping or starting to move, and tamper detection. This makes the NUE-3702-F02, NUE-3702-F04, and NUE-3702-F06 useful for intelligent exterior surveillance and event-driven recording.
The outdoor micro 3100i platform supports H.265, H.264, and M-JPEG compression with Bosch Intelligent Streaming, local microSD recording up to 2TB, Secure Element / TPM protection, signed firmware, secure boot, TLS encryption, and ONVIF Profile S/G/T/M integration.
Built with an aluminum alloy housing, dehumidifying membrane, waterproof connection area, IP66 weather protection, IK10 impact resistance, and an operating range of -30°C to +50°C, the Bosch IQsight FLEXIDOME micro 3100i outdoor 2MP series is a strong choice for compact exterior surveillance with model-specific lens selection.
Key Features:
• Bosch IQsight FLEXIDOME micro 3100i outdoor compact dome camera series
• Consolidated 2MP outdoor models: NUE-3702-F02, NUE-3702-F04, and NUE-3702-F06
• 2MP Full HD resolution, 1920 x 1080
• Multiple fixed lens options for wide, balanced, and focused outdoor views
• NUE-3702-F02 with 2.49mm lens and 137° horizontal field of view
• NUE-3702-F04 with 3.2mm lens and 106° horizontal field of view
• NUE-3702-F06 with 6mm lens and 58.5° horizontal field of view
• High Dynamic Range up to 120dB
• IVA Pro Buildings analytics included
• Deep-learning-based person and vehicle detection
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• Secure Element with TPM functionality
• Signed firmware and secure boot
• TLS 1.2 / TLS 1.3 encryption
• ONVIF Profile S, G, T, and M compliant
• IP66 weather protection
• IK10 impact protection
• Aluminum alloy outdoor housing
• Dehumidifying membrane and waterproof connection area
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.1 lux
• Dynamic Range: 120dB HDR
Lens / FOV Selection:
• NUE-3702-F02: 2.49mm lens, F1.7, 137° horizontal FOV, 72.8° vertical FOV
• NUE-3702-F04: 3.2mm lens, F1.6, 106° horizontal FOV, 56° vertical FOV
• NUE-3702-F06: 6mm lens, F1.9, 58.5° horizontal FOV, 31.3° vertical FOV
DORI Coverage:
NUE-3702-F02 / 2.49mm:
• Detection: 15m / 50ft
• Observation: 6m / 20ft
• Recognition: 3m / 10ft
• Identification: 2m / 7ft
NUE-3702-F04 / 3.2mm:
• Detection: 29m / 95ft
• Observation: 11m / 38ft
• Recognition: 6m / 20ft
• Identification: 3m / 10ft
NUE-3702-F06 / 6mm:
• Detection: 69m / 225ft
• Observation: 27m / 89ft
• Recognition: 14m / 45ft
• Identification: 7m / 23ft
Analytics:
• IVA Pro Buildings
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Tamper Detection
• Up to 16 Simultaneous Alarm Rules
Video / Network / Security:
• Compression: H.265 / H.264 / M-JPEG
• Multiple configurable streams
• Bosch Intelligent Streaming
• Camera Processing Latency: <120ms
• Signal-to-Noise Ratio: >55dB
• Ethernet: 10/100BASE-T
• ONVIF Profile S / G / T / M
• Platform: CPP14.3
• Secure Element: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Industrial SD card health monitoring support
Power / Mechanical:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Power Consumption: 3.2W typical / 4.5W maximum
• Dimensions: 123mm x 69.2mm
• Weight: 480g
• Housing: Aluminum alloy with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate with anti-scratch coating
• Color: Signal White, RAL 9003
• Operating Temperature: -30°C to +50°C
• Storage Temperature: -50°C to +70°C
• Weather Protection: IP66
• Impact Protection: IK10
• Mounting Type: Surface-mounted
• Country of Origin: Thailand
Model Variants:
• NUE-3702-F02 – 2MP Outdoor Micro Dome, 2.49mm Lens, 137° FOV, IP66, IK10
• NUE-3702-F04 – 2MP Outdoor Micro Dome, 3.2mm Lens, 106° FOV, IP66, IK10
• NUE-3702-F06 – 2MP Outdoor Micro Dome, 6mm Lens, 58.5° FOV, IP66, IK10
Lens Selection Guide:
• Choose NUE-3702-F02 for the widest 137° outdoor coverage
• Choose NUE-3702-F04 for balanced 106° exterior coverage
• Choose NUE-3702-F06 for narrower 58.5° focused outdoor views
Compatible Accessories:
• NDA-3082-PIP – Pendant Interface Plate
• NDA-5080-CMB – 45° Corner Mount Box
• NDA-5081-PLEN – In-Ceiling Plenum Rated Kit
• NDA-MCBNC-01M – Analog Cable, BNC Connector
• NDA-3083-LWMT – L-Shape Wall Mount
• NDA-U-CBBS – Conduit Back Box
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
Default selection is NUE-3702-F04. Specify NUE-3702-F02 or NUE-3702-F06 if a different lens/FOV is required.
