Description
The Bosch IQsight FLEXIDOME outdoor 5100i NDE-5702-A is a professional 2MP outdoor dome IP camera designed for demanding exterior surveillance applications that require strong low-light performance, intelligent analytics, rugged construction, and flexible installation. The NDE-5702-A combines Full HD 1080p video, Bosch Starlight camera technology, a 3.2-10.5mm motorized P-iris lens, 144dB High Dynamic Range, IVA Pro analytics, H.265 compression, two-way audio support, edge recording, and Bosch cybersecurity in a weather-resistant outdoor dome platform.
With 1920 x 1080 resolution and up to 60fps performance, the Bosch IQsight FLEXIDOME outdoor 5100i NDE-5702-A is ideal for entrances, building perimeters, walkways, schools, commercial facilities, parking areas, transportation sites, and general outdoor surveillance where smooth motion capture and dependable image quality are important. The 3.2-10.5mm motorized zoom/focus lens provides a flexible 105° to 31° horizontal field of view, allowing installers to cover wide scenes or tighten the view for more targeted monitoring.
Bosch Starlight technology helps maintain usable image detail in low-light environments, while the 2MP NDE-5702-A supports up to 144dB WDR for challenging outdoor scenes with bright sunlight, shadows, reflective surfaces, headlights, and backlighting. Automatic Varifocal lens adjustment allows zoom and focus to be configured remotely without opening the camera, improving installation efficiency and long-term serviceability.
Integrated Bosch IQsight IVA Pro Buildings and IVA Pro Privacy provide deep-learning-based detection, classification, and tracking of people and vehicles. The NDE-5702-A supports intelligent alarm rules including object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional analytics licenses can expand the camera for IVA Pro Perimeter, IVA Pro Traffic, IVA Pro Appearance, IVA Pro PPE, and IVA Pro Visual Gun Detection.
Built for outdoor reliability, the Bosch IQsight FLEXIDOME outdoor 5100i NDE-5702-A features IP66 and NEMA Type 4X ingress protection, IK10 impact resistance, an aluminum housing with dehumidifying membrane and waterproof connection area, operation from -40°C to +55°C, integrated gyro-based Electronic Image Stabilization, ONVIF Profile S/G/T/M support, local microSD recording up to 2TB, signed firmware, secure boot, TPM-based security, and NDAA compliance.
Key Features:
• Bosch IQsight FLEXIDOME outdoor 5100i fixed dome IP camera
• Model: NDE-5702-A
• 2MP Full HD resolution, 1920 x 1080
• Up to 60fps video performance
• 3.2-10.5mm motorized P-iris lens
• Bosch Starlight low-light camera technology
• High Dynamic Range up to 144dB WDR
• IVA Pro Buildings and IVA Pro Privacy included
• Person and vehicle classification
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Four independent encoder streams
• Electronic Image Stabilization
• Two-way audio support
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure boot, signed firmware, TPM, and TLS encryption
• ONVIF Profile S, G, T, and M compliant
• IP66 and NEMA Type 4X weather protection
• IK10 impact resistance
• PoE, 24VAC, and 12VDC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 60fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.021 lux
• Monochrome Sensitivity: 0.004 lux
• Dynamic Range: 144dB WDR
• Measured Dynamic Range: 105dB WDR
Lens:
• Focal Length: 3.2mm to 10.5mm
• Lens Type: P-Iris, IR-corrected
• Aperture: F1.6
• Zoom / Focus: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
• Day / Night: Switchable IR-Cut Filter
DORI Coverage:
• Detection: 31m to 138m
• Observation: 12m to 55m
• Recognition: 6m to 28m
• Identification: 3m to 14m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Camera Latency: <70ms at 1080p60
• GOP Structure: IP, IBP, IBBP
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Privacy Masks: 8
• Electronic Image Stabilization: Supported
• Intelligent Defog: Supported
• Automatic Image Rotation: Supported
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Classification
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Audio Detection
• Optional IVA Pro Perimeter, Traffic, Appearance, PPE, and Visual Gun Detection
Storage:
• microSDHC / microSDXC support
• Local Storage: Up to 2TB
• 5-second pre-alarm recording
• Continuous, ring, alarm, event, and schedule recording
• Industrial SD card health monitoring support
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: AES/CBC 256-bit, RSA 4096-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Video Authentication: Checksum, MD5, SHA-1, SHA-256
• Firmware Protection: Signed firmware and secure boot
Audio & I/O:
• Audio Line Input
• Audio Line Output
• Two-Way Audio: Full duplex / half duplex
• Audio Compression: G.711, L16, AAC-LC
• USB-C Port for Wireless Setup Dongle
Power:
• Input Voltage: PoE, 24VAC ±10%, 12VDC ±10%
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Typical / Maximum PoE Consumption: 4.8W / 6W
Environmental & Mechanical:
• Weather Rating: IP66 / NEMA Type 4X
• Impact Rating: IK10
• Operating Temperature: -40°C to +55°C
• Cold Start Temperature: -20°C
• Housing Material: Aluminum with dehumidifying membrane and waterproof connection area
• Bubble: Clear polycarbonate with anti-scratch coating

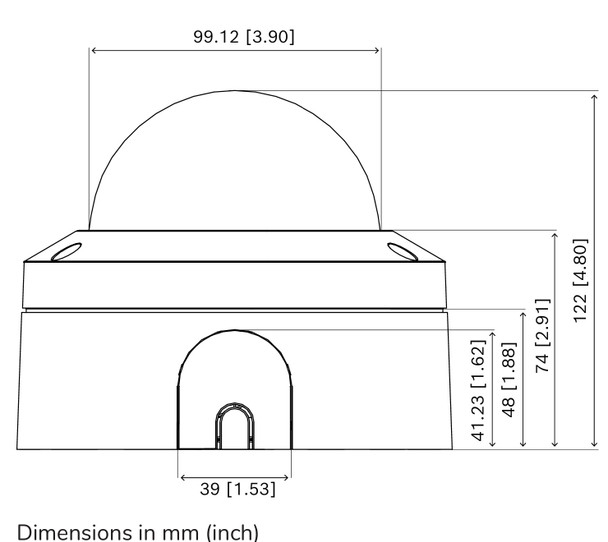

• Dimensions: 148mm x 122mm
• Weight: 1130g / 2.49lb
• Color: RAL 9003
• Mounting: Surface mount, 4-inch square junction box, single/double gang box, 1/4-inch 20 UNC thread
• Conduit: 3/4-inch NPT (M25) and 1/2-inch NPT (M20)
• Country of Origin: Thailand
Model:
• NDE-5702-A – 2MP Outdoor Dome, 3.2-10.5mm Lens, IP66, IK10, Non-IR
Compatible Accessories:
• NDA-5070-IC – In-Ceiling Mount Kit
• NDA-5070-PLEN – In-Ceiling Plenum Kit
• NDA-5070-PIPW – Pendant Interface Plate with Weather Cap
• NDA-5070-LWMT – L-Shape Wall Mount
• NDA-5070-PIP – Pendant Interface Plate
• NDA-5070-PC – Paintable Cover
• NDA-5070-CBL – Clear Replacement Bubble
• NDA-5070-TBL – Tinted Bubble
• NDA-U-CBB – Conduit Back Box
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-WMTG – Pendant Wall Mount, Gang Box
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTE – Pendant Pipe Extension, 20"
• NDA-U-PMTG – Pendant Pipe Mount, Gang Box
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-RMT – Pendant Parapet Mount
• NDA-U-PA0 / NDA-U-PA1 / NDA-U-PA2 – Surveillance Cabinet Options
• NPD-3001-WAP – Portable Wireless Installation Tool
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
