Description

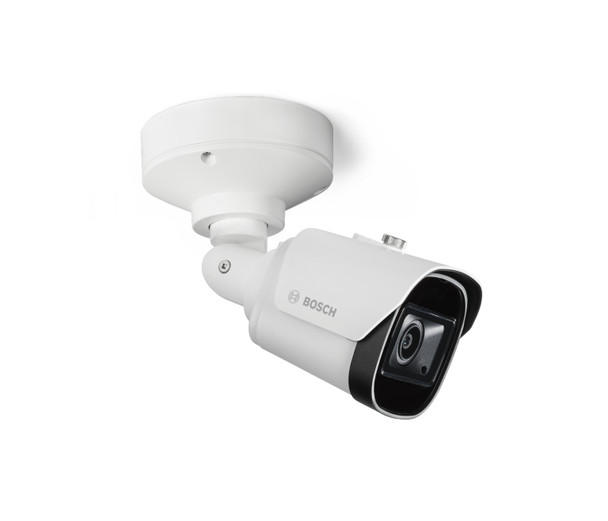

The Bosch IQsight DINION 3100i IR NBE-3702-AL is a compact 2MP outdoor bullet IP camera designed for reliable general-purpose surveillance in commercial, institutional, retail, education, warehouse, parking, perimeter, and building security applications. Built with a 3.3-10.2mm motorized varifocal lens, High Dynamic Range, IVA Pro Buildings analytics, H.265 compression, TPM-based security, integrated 850nm IR illumination, IP66 weather protection, and IK10 impact resistance, the NBE-3702-AL provides a strong balance of image quality, intelligent detection, and outdoor durability.
The NBE-3702-AL captures Full HD 1920 x 1080 video at up to 30fps using a 1/2.8" CMOS sensor. Its motorized 3.3-10.2mm lens allows installers to adjust the field of view from wide coverage to tighter scene monitoring without changing camera models. With a 106° to 31° horizontal field of view, the Bosch IQsight DINION 3100i IR NBE-3702-AL is well suited for entrances, exterior doors, walkways, loading areas, corridors, drive lanes, service areas, and general outdoor monitoring.
Integrated IR illumination provides up to 30m / 98ft of night vision using 850nm infrared light. The camera supports 0 lux operation with IR, helping maintain surveillance in areas where ambient lighting is limited or unavailable. IR intensity is manually adjustable, allowing installers to tune illumination for the scene.
Built-in Bosch IQsight IVA Pro Buildings provides deep-learning-based detection and tracking of persons and vehicles. The NBE-3702-AL supports intelligent alarm rules such as object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. The analytics are designed to reduce false alerts from challenging outdoor conditions such as rain, wind, snow, hail, water reflections, shadows, bugs, and moving trees.
The Bosch IQsight DINION 3100i IR NBE-3702-AL supports H.265, H.264, and M-JPEG video compression with Bosch Intelligent Streaming to reduce bandwidth and storage use. Local edge recording supports microSD cards up to 2TB, and the built-in Secure Element with TPM functionality protects certificates and encryption keys. The camera also supports ONVIF Profile S, G, T, and M, signed firmware, secure boot, TLS encryption, XTS-AES local storage encryption, Bosch Remote Portal, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 3100i IR outdoor bullet IP camera
• Model: NBE-3702-AL
• 2MP Full HD resolution, 1920 x 1080
• 3.3-10.2mm motorized varifocal lens
• 106° to 31° horizontal field of view
• High Dynamic Range up to 120dB
• Built-in 850nm IR illumination
• IR distance up to 30m / 98ft
• 0 lux operation with IR
• IVA Pro Buildings analytics included
• Deep-learning-based person and vehicle detection
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• Secure Element with TPM functionality
• Signed firmware and secure boot
• ONVIF Profile S, G, T, and M compliant
• IP66 weather protection
• IK10 impact resistance
• Shielded RJ45 Ethernet connection
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.06 lux
• Monochrome Sensitivity: 0.016 lux
• Minimum Illumination with IR: 0 lux
• High Dynamic Range: 120dB HDR
Lens:
• Lens Type: Motorized varifocal
• Focal Length: 3.3mm to 10.2mm
• Aperture: F1.6
• Iris Control: DC-iris
• IR Corrected: Yes
• Zoom / Focus Control: Motorized
• Day / Night: Switchable IR cut-filter
• Horizontal Field of View: 106° to 31°
• Vertical Field of View: 55° to 18°
Night Vision:
• IR Function: On / Off / Auto
• Built-In IR Distance: 30m / 98ft
• IR Wavelength: 850nm
• IR Intensity: Manually adjustable
DORI Coverage:
2MP / 3.3-10.2mm Lens:
• Detection: 29m to 138m / 95ft to 453ft
• Observation: 12m to 55m / 38ft to 179ft
• Recognition: 6m to 28m / 20ft to 92ft
• Identification: 3m to 14m / 10ft to 46ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Bosch Intelligent Streaming: Supported
• Camera Processing Latency: <120ms
• GOP Structure: IP
• Signal-to-Noise Ratio: >55dB
• Video Resolutions: 1920 x 1080 down to selectable lower resolutions
• Privacy Masks: 8
• Camera Functions: Mirror image, rotation 90°, rotation 180°, backlight compensation, sharpness enhancement, intelligent defog, pixel counter, saturation, brightness, video watermarking, display stamping, location
• White Balance Range: 2000K to 10000K
• Shutter: Automatic Electronic Shutter, 1/15000 max, 1/25 [30] min
Analytics:
• IVA Pro Buildings
• Person and Vehicle Object Classes
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Object Filters: Duration, size, aspect ratio, direction, color
• Tracking Mode: Base tracking 2D
• Tamper Detection
• Up to 16 Simultaneous Alarm Rules
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDHC / microSDXC / microSD
• Local Storage: Up to 2TB
• Industrial SD Card Health Monitoring: Supported
• Recording Modes: Continuous ring, scheduled, alarm, event
Network & Security:
• Ethernet: 10/100BASE-T
• Connector: Shielded RJ45
• ONVIF Profiles: S, G, T, M
• Platform: CPP14.3
• Secure Element: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: XTS-AES
• Video Authentication: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot
• Bosch Remote Portal: Supported
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Power Consumption: 2.6W typical / 7.72W maximum
Environmental & Mechanical:
• Camera Type: Outdoor bullet IP camera

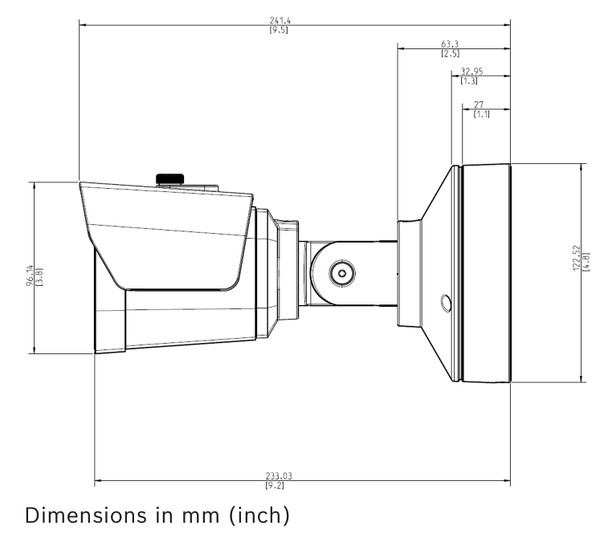

• Dimensions: 123mm x 97mm
• Weight: 3.08lb
• Housing Material: Plastic / metal
• Hinge Material: Metal
• Color: Signal White, RAL 9003
• Operating Temperature: -30°C to +50°C continuous operation
• Maximum Dry Heat Temperature: +60°C with IR on
• Cold Start Temperature: -20°C
• Storage Temperature: -50°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK10
• IP Rating: IP66
• Sustainability: PVC free
• Country of Origin: Thailand
Model:
• NBE-3702-AL – 2MP DINION 3100i IR Bullet Camera, 3.3-10.2mm Lens, IP66, IK10, NDAA compliant
Compatible Accessories:
• NDA-U-CBBS – Conduit Back Box for DINION 3100i IR and FLEXIDOME micro 3100i outdoor
