Description

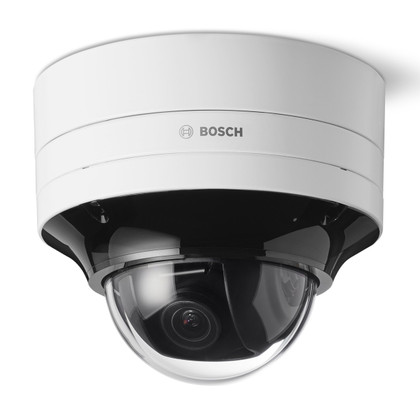

The Bosch IQsight FLEXIDOME 8100i X 4MP 4.4-10mm PTRZ dome camera provides higher-resolution outdoor surveillance while maintaining wide-angle installation flexibility, advanced IVA Pro analytics, Starlight X imaging, and rugged Bosch reliability. Available as NDE-8703-RX with standard clear bubble and NDE-8703-RX-H with hydrophilic bubble, this model is a strong choice for facilities that need more image detail than 2MP while retaining broad coverage from a flexible 4.4-10mm motorized lens.
The 4MP sensor captures 2688 x 1520 video and uses Bosch Starlight X technology for excellent low-light performance. HDR X up to 141dB helps preserve detail in high-contrast scenes with bright highlights, deep shadows, glass doors, headlights, and mixed lighting. The 4.4-10mm lens provides a broad 110° to 48° horizontal field of view, making it ideal for entrances, plazas, campuses, transportation facilities, retail areas, warehouses, building perimeters, and general outdoor coverage.
Remote PTRZ commissioning allows the camera to be adjusted remotely for pan, tilt, roll, zoom, and focus using a PC, web interface, Configuration Manager, or Bosch Project Assistant app. This reduces installation time and enables later adjustments without physically accessing the camera, which is especially useful across large sites and multi-camera deployments.
Bosch IQsight IVA Pro analytics provide deep-learning-based detection and classification of persons and vehicles. Included analytics packages include IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer. The camera supports object detection, object classification, line crossing, loitering, occupancy analytics, people counting, crowd density estimation, similarity search, flow/counter-flow, and advanced forensic search workflows. Optional licenses expand the system for traffic analytics, appearance search, PPE detection, license plate recognition, vehicle make/model, dangerous goods signs, visual gun detection, and intelligent audio analytics.
Designed for demanding indoor and outdoor environments, the FLEXIDOME 8100i X 4MP camera features aluminum construction, clear polycarbonate bubble, IP66/IP67/IP6K9K protection, IK11 impact resistance, NEMA Type 4X protection, dual microSD edge recording, secure boot, signed firmware, TPM security, and operation from -50°C to +60°C. The hydrophilic bubble version, NDE-8703-RX-H, is ideal when enhanced water behavior on the dome bubble is desired for exterior deployments.
Key Features:
• Bosch IQsight FLEXIDOME 8100i X fixed dome IP camera
• Available models: NDE-8703-RX and NDE-8703-RX-H
• 4MP resolution, 2688 x 1520
• 4.4-10mm motorized PTRZ lens
• Starlight X low-light imaging
• HDR X wide dynamic range up to 141dB
• Remote pan, tilt, roll, zoom, and focus commissioning
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy included
• Camera Trainer machine-learning analytics
• Optional IVA Pro licenses supported
• Electronic Image Stabilization
• Bosch Intelligent Streaming
• H.265 / H.264 / M-JPEG compression
• Dual microSD card support up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure boot, signed firmware, TPM, TLS 1.3
• IP66 / IP67 / IP6K9K weather protection
• IK11 impact protection
• Optional hydrophilic bubble model available
• NDAA and TAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 4MP
• Effective Pixels: 2688 x 1520
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 2.9μm
• Low-Light Technology: Starlight X
• Minimum Illumination:
- Color: 0.009 lux at F1.3
- Monochrome: 0.0007 lux at F1.3
• Dynamic Range: HDR X up to 141dB
Lens:
• Focal Length: 4.4mm to 10mm
• Aperture: F1.3 to F1.97
• Horizontal Field of View: 110° to 48°
• Vertical Field of View: 56° to 27°
• Iris Control: P-Iris
• Zoom / Focus: Motorized
• Field of View Adjustment: Motorized Pan, Tilt, Roll, Autofocus
DORI Coverage:
• Detection: 38m to 121m
• Observation: 15m to 48m
• Recognition: 8m to 24m
• Identification: 4m to 12m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Frame Rate: 1 to 60fps
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Signal-to-Noise Ratio: >55dB
• Scene Modes: Traffic, Night Optimized, Vibrant, Low Bitrate, Sports & Gaming, Retail, Intelligent AE, Indoor, Outdoor, License Plate Recognition
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• 3D Auto Calibration
• Object Detection and Classification
• Line Crossing
• Enter / Leave Field
• Loitering
• Occupancy and People Counting
• Crowd Density Estimation
• Similarity Search
• Flow / Counter Flow
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Storage:
• Dual microSDHC / microSDXC card slots
• Dual microSD support up to 2TB
• Mirrored, Failover, Extended, and Automatic Network Replenishment modes
• 5-second pre-alarm recording
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Encryption: TLS 1.2, TLS 1.3, AES 128/256
• TPM / Secure Element: Supported
• Secure Boot and Signed Firmware
• Local Storage Encryption: XTS-AES
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC or 12-26VDC
• Typical / Maximum PoE Consumption: 7W / 12.95W
• Redundant Power: PoE and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Housing Material: Aluminum
• Bubble Material: Clear Polycarbonate
• Impact Protection: IK11
• Weather Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -50°C to +60°C
• Dimensions: 175mm x 148mm
• Weight: 2.30kg
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
Model Variants:
• NDE-8703-RX – 4MP, 4.4-10mm lens, standard clear bubble
• NDE-8703-RX-H – 4MP, 4.4-10mm lens, hydrophilic bubble
Compatible Accessories:
• NDA-8000-CND – Conduit Adapter, 4 pcs
• NDA-8000-CBL – Clear Replacement Bubble
• NDA-8000-TBL – Tinted Bubble
• NDA-8000-HCBL – Hydrophilic Bubble
• NDA-8000-WP – On-Camera Weather Protector
• NDA-8000-PIP – Pendant Interface Plate, Indoor
• NDA-8000-PIPW – Pendant Interface Plate, Outdoor
• NDA-8002-PLEN – In-Ceiling Plenum Rated Kit
• NDA-8002-IC – In-Ceiling Mount Kit
• NDA-8000-SP – In-Ceiling Mount Support Kit
• NDA-8000-PC – Paintable Cover, 4 pcs
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-RMT – Pendant Parapet Mount
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is the standard clear bubble model. Specify hydrophilic bubble version if required.
