Description

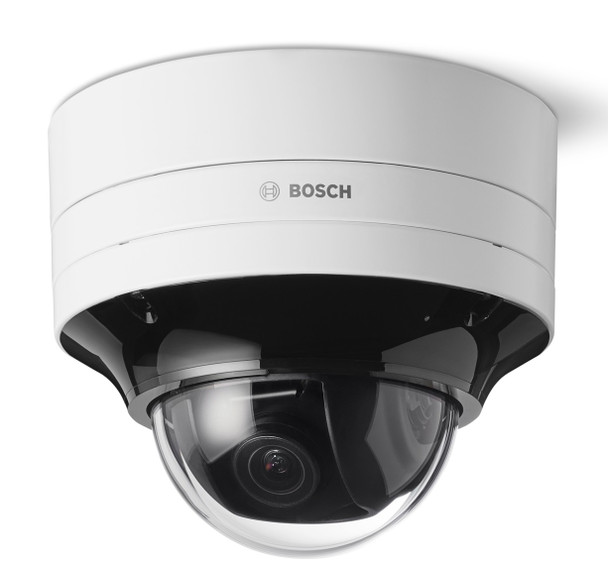

The Bosch IQsight FLEXIDOME 8100i IR X 4MP 4.4-10mm PTRZ dome camera provides higher-resolution outdoor surveillance with integrated infrared illumination, Bosch Starlight X imaging, HDR X, IVA Pro analytics, remote PTRZ commissioning, and rugged vandal-resistant construction. Available as NDE-8703-RXL with standard clear bubble and NDE-8703-RXL-H with hydrophilic bubble, this model is well suited for professional security applications that require more image detail than 2MP while retaining wide scene coverage and strong nighttime visibility.
The 4MP sensor captures 2688 x 1520 video, while the 4.4-10mm motorized lens provides a flexible 110° to 48° horizontal field of view. This makes the NDE-8703-RXL and NDE-8703-RXL-H ideal for entrances, parking areas, schools, warehouses, building perimeters, campuses, retail environments, transportation sites, government facilities, and general outdoor surveillance. The split IR design provides intelligent 850nm infrared illumination up to 50m / 164ft for improved nighttime monitoring.
Bosch IQsight Starlight X technology helps deliver highly detailed images in low-light environments, while HDR X up to 141dB preserves detail in high-contrast scenes with headlights, shadows, glass reflections, bright entrances, and mixed lighting. The integrated IR system gives the camera added nighttime capability where visible light is limited or unavailable.
Remote PTRZ commissioning allows installers to remotely pan, tilt, roll, zoom, and focus the camera without opening the camera or manually adjusting the lens. This reduces installation time, improves setup efficiency, and makes later adjustments easier across large sites or difficult mounting locations.
Bosch IQsight IVA Pro analytics provide deep-learning-based detection, classification, tracking, counting, and forensic search. Included analytics packages include IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer. Optional licenses expand capabilities for IVA Pro Traffic, Appearance, PPE detection, License Plate, Vehicle Make Model, Dangerous Good Signs, Visual Gun Detection, and Intelligent Audio Analytics.
Built for severe indoor and outdoor conditions, the FLEXIDOME 8100i IR X 4MP camera features aluminum construction, a clear polycarbonate bubble, IP66/IP67/IP6K9K weather protection, IK11 impact resistance, NEMA Type 4X protection, dual microSD edge recording, built-in microphone, secure boot, signed firmware, TPM security, and operation from -50°C to +60°C. The NDE-8703-RXL-H hydrophilic bubble version is ideal for outdoor deployments where rain, moisture, or water behavior on the dome bubble is an important visibility factor.
Key Features:
• Bosch IQsight FLEXIDOME 8100i IR X fixed dome IP camera
• Available models: NDE-8703-RXL and NDE-8703-RXL-H
• 4MP resolution, 2688 x 1520
• 4.4-10mm motorized PTRZ lens
• Integrated split IR design
• Intelligent IR illumination up to 50m / 164ft
• 850nm infrared wavelength
• Starlight X low-light imaging technology
• HDR X wide dynamic range up to 141dB
• Remote pan, tilt, roll, zoom, and focus commissioning
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy included
• Camera Trainer machine-learning analytics
• Optional IVA Pro analytics licenses supported
• Electronic Image Stabilization (EIS)
• Built-in microphone
• H.265 / H.264 / M-JPEG video compression
• Bosch Intelligent Streaming
• Dual microSD card support up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure boot, signed firmware, TPM, and TLS 1.3 support
• IP66 / IP67 / IP6K9K weather protection
• IK11 impact-resistant housing
• Optional hydrophilic bubble model available
• NDAA and TAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 4MP
• Effective Pixels: 2688 x 1520
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 2.9μm
• Low-Light Technology: Starlight X
• Minimum Illumination:
- Color: 0.0090 lux at F1.3
- Monochrome: 0.0007 lux at F1.3
• Dynamic Range: HDR X up to 141dB
Lens:
• Focal Length: 4.4mm to 10mm
• Aperture: F1.3 to F1.97
• Horizontal Field of View: 110° to 48°
• Vertical Field of View: 56° to 27°
• Iris Control: P-Iris
• Zoom / Focus: Motorized
• Field of View Adjustment: Motorized Pan, Tilt, Roll, Autofocus
Night Vision:
• IR Function: On / Off / Auto / Intelligent IR
• IR Intensity: Manual / Automatic / Intelligent intensity
• Built-In IR Distance: 50m / 164ft
• IR Wavelength: 850nm
• IR Design: Split IR
DORI Coverage:
• Detection: 38m to 121m
• Observation: 15m to 48m
• Recognition: 8m to 24m
• Identification: 4m to 12m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Frame Rate: 1 to 60fps
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Signal-to-Noise Ratio: >55dB
• Scene Modes: Traffic, Night Optimized, Vibrant, Low Bitrate, Sports & Gaming, Retail, Intelligent AE, Indoor, Outdoor, License Plate Recognition
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• 3D Auto Calibration
• Object Detection and Classification
• Line Crossing
• Enter / Leave Field
• Loitering
• Occupancy and People Counting
• Crowd Density Estimation
• Similarity Search
• Flow / Counter Flow
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Storage:
• Dual microSDHC / microSDXC card slots
• Dual microSD support up to 2TB
• Mirrored, Failover, Extended, and Automatic Network Replenishment modes
• 5-second pre-alarm recording
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Encryption: TLS 1.2, TLS 1.3, AES 128/256
• TPM / Secure Element: Supported
• Secure Boot and Signed Firmware
• Local Storage Encryption: XTS-AES
Power:
• PoE+: IEEE 802.3at Type 2, Class 4
• Auxiliary Power: 24VAC or 12-26VDC
• Typical / Maximum PoE Consumption: 7W / 25.5W
• Redundant Power: PoE+ and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Housing Material: Aluminum
• Bubble Material: Clear Polycarbonate
• Impact Protection: IK11
• Weather Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -50°C to +60°C

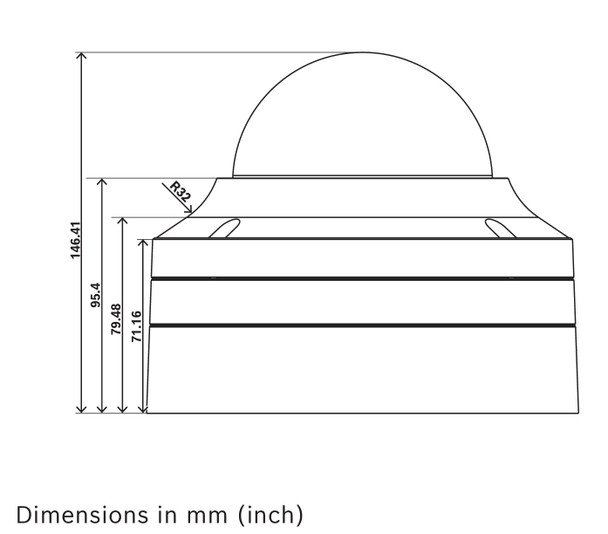

• Dimensions: 175mm x 148mm
• Weight: 2.30kg
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
Model Variants:
• NDE-8703-RXL – 4MP, 4.4-10mm lens, integrated IR, standard clear bubble
• NDE-8703-RXL-H – 4MP, 4.4-10mm lens, integrated IR, hydrophilic bubble
Compatible Accessories:
• NDA-8000-CND – Conduit Adapter, 4 pcs
• NDA-8000-CBL – Clear Replacement Bubble
• NDA-8000-TBL – Tinted Bubble
• NDA-8000-HCBL – Hydrophilic Bubble

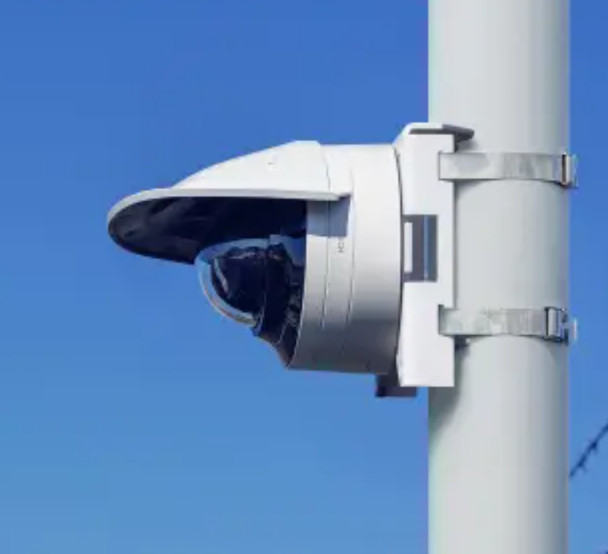

• NDA-8000-WPIR – On-Camera Weather Protector IR
• NDA-8000-PIPWIR – Pendant Interface Plate, Outdoor IR
• NDA-8002-PLEN – In-Ceiling Plenum Rated Kit
• NDA-8002-IC – In-Ceiling Mount Kit
• NDA-8000-SP – In-Ceiling Mount Support Kit
• NDA-8000-PCIR – Paintable Cover, 4 pcs, IR
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-RMT – Pendant Parapet Mount
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is the standard clear bubble model. Specify hydrophilic bubble version if required.
