Description

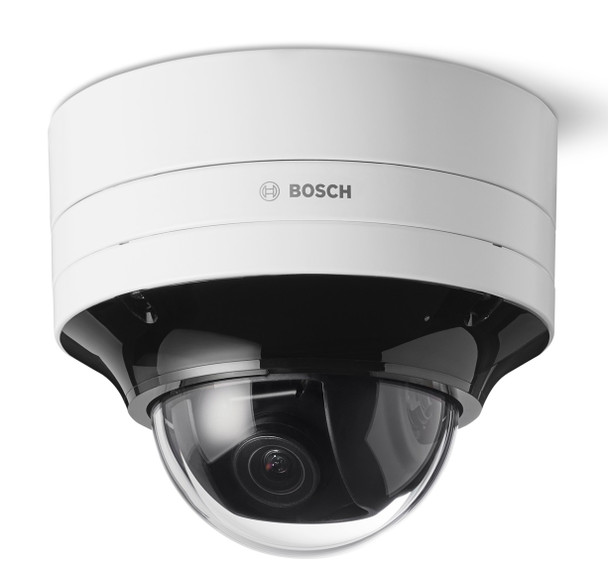

The Bosch IQsight FLEXIDOME 8100i IR X 2MP 4.4-10mm PTRZ dome camera is a rugged outdoor IP security camera designed for demanding surveillance applications that require strong low-light performance, integrated IR illumination, intelligent analytics, and fast remote commissioning. Available as NDE-8702-RXL with standard clear bubble and NDE-8702-RXL-H with hydrophilic bubble, this FLEXIDOME 8100i IR X model combines Bosch Starlight X imaging, HDR X wide dynamic range, split IR illumination, remote PTRZ positioning, IVA Pro analytics, and rugged IP66/IP67/IP6K9K protection in a professional fixed dome platform.
The 2MP Full HD sensor delivers 1920 x 1080 video resolution with excellent low-light sensitivity, while the 4.4-10mm motorized lens provides a flexible wide-to-standard field of view for entrances, building perimeters, campuses, schools, retail spaces, parking areas, transportation facilities, city surveillance, and general outdoor security applications. The integrated 850nm split IR system provides intelligent infrared illumination up to 50m / 164ft, improving nighttime visibility while helping reduce overexposure and uneven IR coverage.
Bosch IQsight Starlight X technology improves image performance in challenging low-light conditions, while HDR X helps preserve details in both bright and dark areas of the scene without the motion blur and artifacts commonly associated with standard HDR technologies. The 2MP NDE-8702-RXL and NDE-8702-RXL-H models support HDR X performance up to 141dB, making them well suited for scenes with headlights, reflections, entrances, shadows, and mixed indoor/outdoor lighting.
Remote PTRZ commissioning allows installers to remotely pan, tilt, roll, zoom, and focus the camera using a PC, web interface, Bosch Configuration Manager, or Bosch Project Assistant app. This reduces ladder time, speeds up installation, and allows adjustments after installation without physically opening the camera or touching the lens. The motorized zoom/focus system helps ensure accurate field-of-view alignment and focus.
Integrated Bosch IQsight IVA Pro analytics bring deep-learning-based detection and classification of people and vehicles, including IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer. The camera supports advanced alarm rules such as line crossing, loitering, entering/leaving field, occupancy, people counting, crowd density estimation, flow/counter-flow, object classification, and forensic search workflows. Optional IVA Pro licenses can expand analytics for traffic, appearance search, PPE detection, license plate recognition, vehicle make/model detection, dangerous goods signs, visual gun detection, and intelligent audio analytics.
Built for indoor and outdoor operation, the Bosch IQsight FLEXIDOME 8100i IR X 2MP camera features a rugged aluminum housing, clear polycarbonate bubble, IK11 impact protection, IP66/IP67/IP6K9K weather resistance, NEMA Type 4X protection, dual microSD edge recording, built-in microphone, secure boot, signed firmware, TPM security, and operation from -50°C to +60°C. The NDE-8702-RXL-H hydrophilic bubble version is recommended for outdoor locations where rain and water behavior on the dome bubble are important for clear viewing.
Key Features:
• Bosch IQsight FLEXIDOME 8100i IR X fixed dome IP camera
• Available models: NDE-8702-RXL and NDE-8702-RXL-H
• 2MP Full HD resolution, 1920 x 1080
• 4.4-10mm motorized PTRZ lens
• Integrated split IR design
• Intelligent IR illumination up to 50m / 164ft
• 850nm infrared wavelength
• Starlight X low-light imaging technology
• HDR X wide dynamic range up to 141dB
• Remote pan, tilt, roll, zoom, and focus commissioning
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy included
• Camera Trainer machine-learning analytics
• Optional IVA Pro analytics licenses supported
• Electronic Image Stabilization (EIS)
• Built-in microphone
• H.265 / H.264 / M-JPEG video compression
• Bosch Intelligent Streaming
• Dual microSD card support up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure boot, signed firmware, TPM, and TLS 1.3 support
• IP66 / IP67 / IP6K9K weather protection
• IK11 impact-resistant housing
• Optional hydrophilic bubble model available
• NDAA and TAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 4.1μm
• Low-Light Technology: Starlight X
• Minimum Illumination:
- Color: 0.0090 lux at F1.3
- Monochrome: 0.0007 lux at F1.3
• Dynamic Range: HDR X up to 141dB
Lens:
• Focal Length: 4.4mm to 10mm
• Aperture: F1.3 to F1.97
• Horizontal Field of View: 110° to 48°
• Vertical Field of View: 56° to 27°
• Iris Control: P-Iris
• Zoom / Focus: Motorized
• Field of View Adjustment: Motorized Pan, Tilt, Roll, Autofocus
Night Vision:
• IR Function: On / Off / Auto / Intelligent IR
• IR Intensity: Manual / Automatic / Intelligent intensity
• Built-In IR Distance: 50m / 164ft
• IR Wavelength: 850nm
• IR Design: Split IR
DORI Coverage:
• Detection: 27m to 86m
• Observation: 11m to 34m
• Recognition: 5m to 17m
• Identification: 3m to 9m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Frame Rate: 1 to 60fps
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Signal-to-Noise Ratio: >55dB
• Scene Modes: Traffic, Night Optimized, Vibrant, Low Bitrate, Sports & Gaming, Retail, Intelligent AE, Indoor, Outdoor, License Plate Recognition
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• 3D Auto Calibration
• Object Detection and Classification
• Line Crossing
• Enter / Leave Field
• Loitering
• Occupancy and People Counting
• Crowd Density Estimation
• Similarity Search
• Flow / Counter Flow
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Storage:
• Dual microSDHC / microSDXC card slots
• Dual microSD support up to 2TB
• Mirrored, Failover, Extended, and Automatic Network Replenishment modes
• 5-second pre-alarm recording
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Encryption: TLS 1.2, TLS 1.3, AES 128/256
• TPM / Secure Element: Supported
• Secure Boot and Signed Firmware
• Local Storage Encryption: XTS-AES
Power:
• PoE+: IEEE 802.3at Type 2, Class 4
• Auxiliary Power: 24VAC or 12-26VDC
• Typical / Maximum PoE Consumption: 7W / 25.5W
• Redundant Power: PoE+ and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Housing Material: Aluminum
• Bubble Material: Clear Polycarbonate
• Impact Protection: IK11
• Weather Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -50°C to +60°C

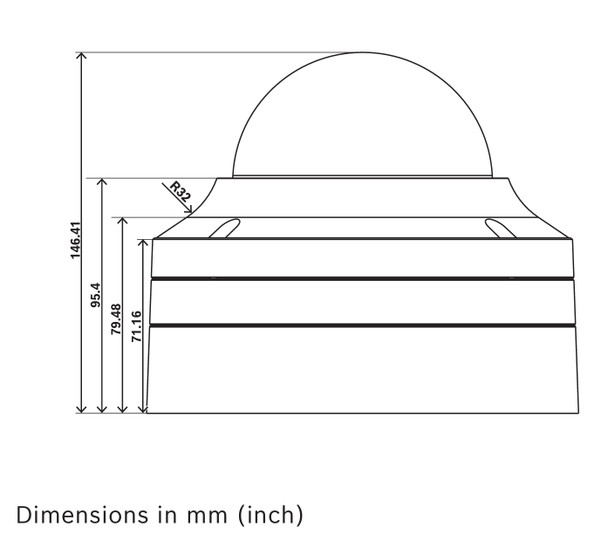

• Dimensions: 175mm x 148mm
• Weight: 2.30kg
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
Model Variants:
• NDE-8702-RXL – 2MP, 4.4-10mm lens, integrated IR, standard clear bubble
• NDE-8702-RXL-H – 2MP, 4.4-10mm lens, integrated IR, hydrophilic bubble
Compatible Accessories:
• NDA-8000-CND – Conduit Adapter, 4 pcs
• NDA-8000-CBL – Clear Replacement Bubble
• NDA-8000-TBL – Tinted Bubble
• NDA-8000-HCBL – Hydrophilic Bubble
• NDA-8000-WPIR – On-Camera Weather Protector IR
• NDA-8000-PIPWIR – Pendant Interface Plate, Outdoor IR
• NDA-8002-PLEN – In-Ceiling Plenum Rated Kit
• NDA-8002-IC – In-Ceiling Mount Kit
• NDA-8000-SP – In-Ceiling Mount Support Kit
• NDA-8000-PCIR – Paintable Cover, 4 pcs, IR
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB

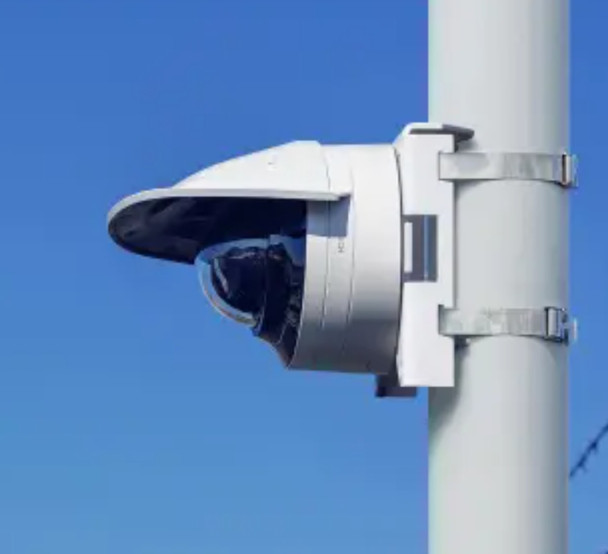

• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-RMT – Pendant Parapet Mount
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is the standard clear bubble model. Specify hydrophilic bubble version if required.
