Description

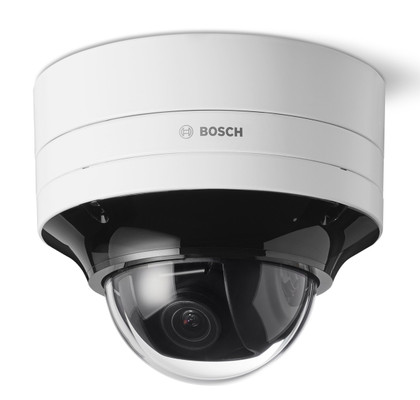

The Bosch IQsight FLEXIDOME 8100i X 4MP 12-38mm PTRZ dome camera is built for professional surveillance applications requiring higher detail and longer-range optical coverage from a rugged fixed dome platform. Available as NDE-8703-RXT with standard clear bubble and NDE-8703-RXT-H with hydrophilic bubble, this model combines 4MP resolution, a 12-38mm telephoto lens, Bosch Starlight X, HDR X, IVA Pro analytics, Electronic Image Stabilization, and remote PTRZ commissioning.
The 12-38mm motorized lens provides a narrower field of view and stronger distance performance than the 4.4-10mm versions, making this camera ideal for gates, fence lines, drive lanes, loading areas, long corridors, parking entrances, perimeter checkpoints, transportation infrastructure, and other locations where a tighter image is needed. The 4MP sensor delivers more detail than 2MP models while the telephoto lens allows targeted surveillance over longer distances.
Bosch IQsight Starlight X technology helps maintain usable image detail in low-light scenes, while HDR X up to 141dB improves visibility in high-contrast environments. The camera is designed to capture usable video in areas affected by headlights, entrance lighting, glass reflections, shadows, backlighting, and changing outdoor light conditions.
Remote PTRZ commissioning simplifies installation by allowing pan, tilt, roll, zoom, and focus adjustments through the network without opening the camera. Installers can align the field of view using a PC, web interface, Configuration Manager, or Bosch Project Assistant app, making this model especially useful where physical access is difficult or future repositioning may be required.
Integrated Bosch IQsight IVA Pro analytics support intelligent detection, classification, tracking, counting, and forensic search. Included analytics packages include IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer. Optional analytics licenses can expand capabilities for traffic, appearance search, PPE detection, license plate recognition, vehicle make/model, dangerous goods signs, visual gun detection, and intelligent audio analytics.
The FLEXIDOME 8100i X 4MP 12-38mm camera is protected by a rugged aluminum housing, clear polycarbonate bubble, IK11 impact rating, IP66/IP67/IP6K9K weather protection, NEMA Type 4X rating, secure boot, signed firmware, TPM hardware security, and dual microSD edge recording. The NDE-8703-RXT-H hydrophilic bubble model is recommended for outdoor installations where rain, water behavior, and dome visibility are key considerations.
Key Features:
• Bosch IQsight FLEXIDOME 8100i X fixed dome IP camera
• Available models: NDE-8703-RXT and NDE-8703-RXT-H
• 4MP resolution, 2688 x 1520
• 12-38mm motorized telephoto PTRZ lens
• Long-range optical coverage for targeted surveillance
• Starlight X low-light imaging
• HDR X wide dynamic range up to 141dB
• Remote pan, tilt, roll, zoom, and focus commissioning
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy included
• Camera Trainer machine-learning analytics
• Optional IVA Pro licenses supported
• Electronic Image Stabilization
• Bosch Intelligent Streaming
• H.265 / H.264 / M-JPEG compression
• Dual microSD card support up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure boot, signed firmware, TPM, TLS 1.3
• IP66 / IP67 / IP6K9K weather protection
• IK11 impact protection
• Optional hydrophilic bubble model available
• NDAA and TAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 4MP
• Effective Pixels: 2688 x 1520
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 2.9μm
• Low-Light Technology: Starlight X
• Minimum Illumination:
- Color: 0.0252 lux at telephoto lens setting
- Monochrome: 0.0022 lux at telephoto lens setting
• Dynamic Range: HDR X up to 141dB
Lens:
• Focal Length: 12mm to 38mm
• Aperture: F2.05 to F2.25
• Horizontal Field of View: 36° to 12°
• Vertical Field of View: 20° to 7°
• Iris Control: P-Iris
• Zoom / Focus: Motorized
• Field of View Adjustment: Motorized Pan, Tilt, Roll, Autofocus
DORI Coverage:
• Detection: 162m to 479m
• Observation: 64m to 190m
• Recognition: 32m to 96m
• Identification: 16m to 48m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Frame Rate: 1 to 60fps
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Signal-to-Noise Ratio: >55dB
• Scene Modes: Traffic, Night Optimized, Vibrant, Low Bitrate, Sports & Gaming, Retail, Intelligent AE, Indoor, Outdoor, License Plate Recognition
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• 3D Auto Calibration
• Object Detection and Classification
• Line Crossing
• Enter / Leave Field
• Loitering
• Occupancy and People Counting
• Crowd Density Estimation
• Similarity Search
• Flow / Counter Flow
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Storage:
• Dual microSDHC / microSDXC card slots
• Dual microSD support up to 2TB
• Mirrored, Failover, Extended, and Automatic Network Replenishment modes
• 5-second pre-alarm recording
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Encryption: TLS 1.2, TLS 1.3, AES 128/256
• TPM / Secure Element: Supported
• Secure Boot and Signed Firmware
• Local Storage Encryption: XTS-AES
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC or 12-26VDC
• Typical / Maximum PoE Consumption: 7W / 12.95W
• Redundant Power: PoE and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Housing Material: Aluminum
• Bubble Material: Clear Polycarbonate
• Impact Protection: IK11
• Weather Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -50°C to +60°C

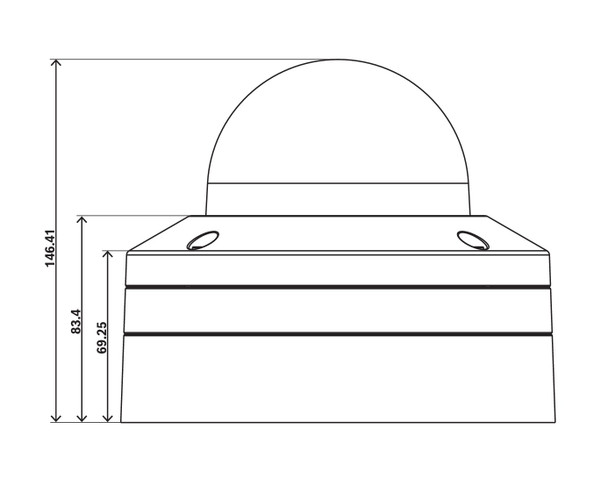

• Dimensions: 175mm x 148mm
• Weight: 2.30kg
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
Model Variants:
• NDE-8703-RXT – 4MP, 12-38mm lens, standard clear bubble
• NDE-8703-RXT-H – 4MP, 12-38mm lens, hydrophilic bubble
Compatible Accessories:
• NDA-8000-CND – Conduit Adapter, 4 pcs
• NDA-8000-CBL – Clear Replacement Bubble
• NDA-8000-TBL – Tinted Bubble
• NDA-8000-HCBL – Hydrophilic Bubble
• NDA-8000-WP – On-Camera Weather Protector
• NDA-8000-PIP – Pendant Interface Plate, Indoor
• NDA-8000-PIPW – Pendant Interface Plate, Outdoor
• NDA-8002-PLEN – In-Ceiling Plenum Rated Kit
• NDA-8002-IC – In-Ceiling Mount Kit
• NDA-8000-SP – In-Ceiling Mount Support Kit
• NDA-8000-PC – Paintable Cover, 4 pcs
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB

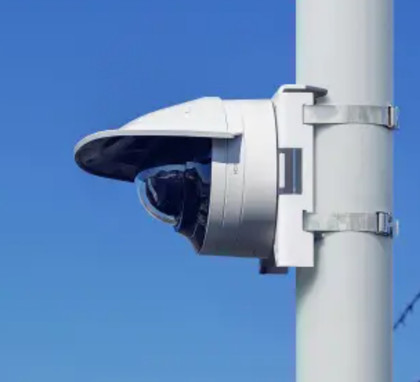

• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-RMT – Pendant Parapet Mount
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is the standard clear bubble model. Specify hydrophilic bubble version if required.
