Description

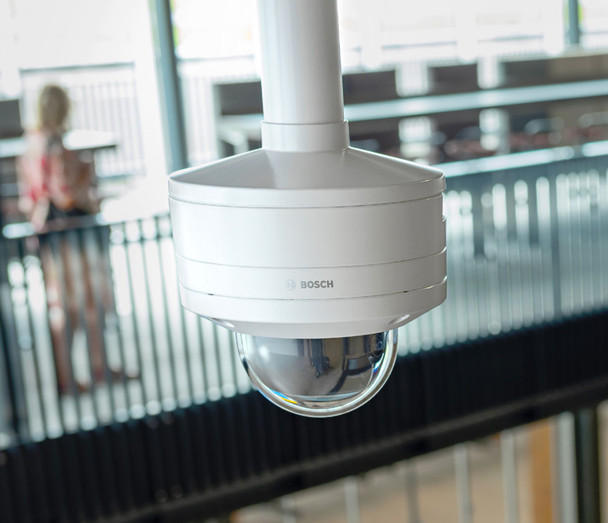

The Bosch IQsight FLEXIDOME 8100i X 2MP 12-38mm PTRZ dome camera is designed for professional surveillance applications requiring tighter fields of view, longer scene reach, and precise remote commissioning. Available as NDE-8702-RXT with standard clear bubble and NDE-8702-RXT-H with hydrophilic bubble, this model combines Bosch Starlight X low-light performance, HDR X imaging, IVA Pro analytics, Electronic Image Stabilization, and rugged outdoor construction in a fixed dome form factor.
The 12-38mm motorized telephoto lens makes this version ideal for corridors, gates, parking entrances, perimeter choke points, drive lanes, approach roads, loading areas, transportation facilities, city surveillance, and applications where a narrow field of view or longer identification distance is preferred over wide-area coverage. Compared with the 4.4-10mm version, the 12-38mm model provides significantly stronger DORI reach for long-distance monitoring.
The 2MP Full HD imager delivers 1920 x 1080 resolution and Bosch IQsight Starlight X sensitivity for reliable low-light performance. HDR X technology provides up to 144dB dynamic range on this 2MP telephoto model, helping preserve detail in bright and dark areas while reducing unwanted motion artifacts common to traditional HDR imaging.
Remote PTRZ functionality allows installers and operators to pan, tilt, roll, zoom, and focus the camera remotely without opening the housing or touching the lens. This is especially valuable for telephoto applications where exact field-of-view alignment is critical. The camera can be commissioned using a PC, browser interface, Bosch Configuration Manager, or the Bosch Project Assistant app.
Integrated IVA Pro analytics provide deep-learning-based detection and classification of people and vehicles. IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer are included, with additional optional analytics licenses available for traffic, appearance, PPE detection, license plate recognition, vehicle make/model, dangerous goods signs, visual gun detection, and intelligent audio analytics.
The Bosch IQsight FLEXIDOME 8100i X 2MP 12-38mm camera is built for harsh indoor and outdoor environments with IP66/IP67/IP6K9K weather protection, IK11 impact resistance, NEMA Type 4X protection, aluminum housing, secure boot, signed firmware, TPM security, and dual microSD edge recording. The NDE-8702-RXT-H hydrophilic bubble version is recommended where rain, moisture, or outdoor visibility through the bubble is a major consideration.
Key Features:
• Bosch IQsight FLEXIDOME 8100i X fixed dome IP camera
• Available models: NDE-8702-RXT and NDE-8702-RXT-H
• 2MP Full HD resolution, 1920 x 1080
• 12-38mm motorized telephoto PTRZ lens
• Longer-range coverage than 4.4-10mm models
• Starlight X low-light imaging
• HDR X wide dynamic range up to 144dB
• Remote pan, tilt, roll, zoom, and focus commissioning
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy included
• Camera Trainer machine-learning analytics
• Optional IVA Pro licenses supported
• Electronic Image Stabilization
• Bosch Intelligent Streaming
• H.265 / H.264 / M-JPEG compression
• Dual microSD card support up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure boot, signed firmware, TPM, TLS 1.3
• IP66 / IP67 / IP6K9K weather protection
• IK11 impact protection
• Optional hydrophilic bubble model available
• NDAA and TAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 4.1μm
• Low-Light Technology: Starlight X
• Minimum Illumination:
- Color: 0.0252 lux at F2.3
- Monochrome: 0.0022 lux at F2.3
• Dynamic Range: HDR X up to 144dB
Lens:
• Focal Length: 12mm to 38mm
• Aperture: F2.3
• Horizontal Field of View: 36° to 12°
• Vertical Field of View: 20° to 7°
• Iris Control: P-Iris
• Zoom / Focus: Motorized
• Field of View Adjustment: Motorized Pan, Tilt, Roll, Autofocus
DORI Coverage:
• Detection: 115m to 342m
• Observation: 46m to 136m
• Recognition: 23m to 69m
• Identification: 12m to 34m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Frame Rate: 1 to 60fps
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Signal-to-Noise Ratio: >55dB
• Scene Modes: Traffic, Night Optimized, Vibrant, Low Bitrate, Sports & Gaming, Retail, Intelligent AE, Indoor, Outdoor, License Plate Recognition
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• 3D Auto Calibration
• Object Detection and Classification
• Line Crossing
• Enter / Leave Field
• Loitering
• Occupancy and People Counting
• Crowd Density Estimation
• Similarity Search
• Flow / Counter Flow
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Storage:
• Dual microSDHC / microSDXC card slots
• Dual microSD support up to 2TB
• Mirrored, Failover, Extended, and Automatic Network Replenishment modes
• 5-second pre-alarm recording
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Encryption: TLS 1.2, TLS 1.3, AES 128/256
• TPM / Secure Element: Supported
• Secure Boot and Signed Firmware
• Local Storage Encryption: XTS-AES
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC or 12-26VDC
• Typical / Maximum PoE Consumption: 7W / 12.95W
• Redundant Power: PoE and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Housing Material: Aluminum
• Bubble Material: Clear Polycarbonate
• Impact Protection: IK11
• Weather Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -50°C to +60°C
• Dimensions: 175mm x 148mm
• Weight: 2.30kg
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
Model Variants:
• NDE-8702-RXT – 2MP, 12-38mm lens, standard clear bubble
• NDE-8702-RXT-H – 2MP, 12-38mm lens, hydrophilic bubble
Compatible Accessories:
• NDA-8000-CND – Conduit Adapter, 4 pcs
• NDA-8000-CBL – Clear Replacement Bubble
• NDA-8000-TBL – Tinted Bubble
• NDA-8000-HCBL – Hydrophilic Bubble
• NDA-8000-WP – On-Camera Weather Protector
• NDA-8000-PIP – Pendant Interface Plate, Indoor
• NDA-8000-PIPW – Pendant Interface Plate, Outdoor
• NDA-8002-PLEN – In-Ceiling Plenum Rated Kit
• NDA-8002-IC – In-Ceiling Mount Kit
• NDA-8000-SP – In-Ceiling Mount Support Kit
• NDA-8000-PC – Paintable Cover, 4 pcs
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-RMT – Pendant Parapet Mount
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is the standard clear bubble model. Specify hydrophilic bubble version if required.
