Description

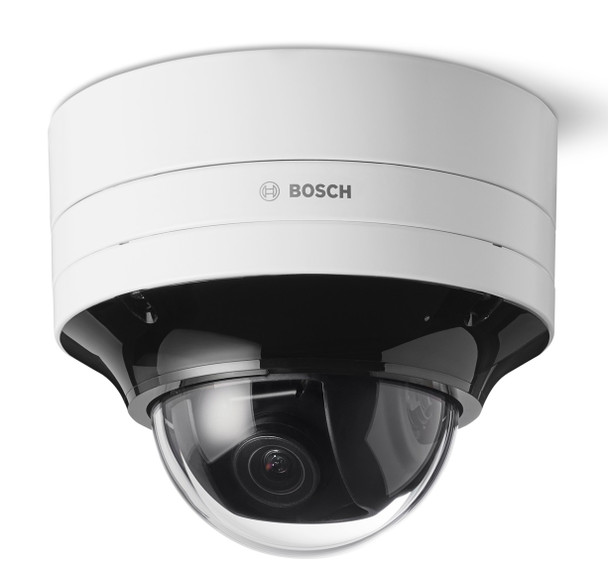

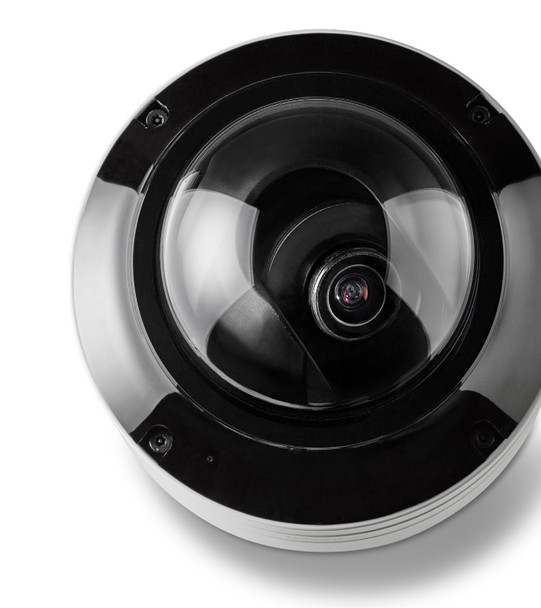

The Bosch IQsight FLEXIDOME 8100i IR X 8MP 5.9-13mm PTRZ dome camera delivers 4K UHD surveillance performance with integrated IR illumination, Bosch Starlight X imaging, HDR X, IVA Pro analytics, remote PTRZ commissioning, and rugged outdoor protection. Available as NDE-8704-RXL with standard clear bubble and NDE-8704-RXL-H with hydrophilic bubble, this model is the highest-resolution IR camera in the FLEXIDOME 8100i IR X series and is ideal for applications requiring greater scene detail, wide forensic coverage, and reliable nighttime monitoring.
The 8MP model uses a larger 1/1.2" CMOS sensor and captures up to 3840 x 2160 resolution. Its 5.9-13mm motorized lens provides a flexible 110° to 48° horizontal field of view, making it suitable for entrances, plazas, campuses, parking areas, public spaces, city surveillance, transportation facilities, government sites, retail environments, and critical infrastructure applications where 4K image detail is preferred. Integrated 850nm intelligent IR illumination reaches up to 50m / 164ft for improved nighttime performance without relying on external light sources.
Bosch IQsight Starlight X technology helps maintain strong image quality in low-light scenes, while HDR X up to 128dB improves visibility in scenes with both bright and dark areas. The integrated split IR design gives the camera strong day/night performance, making the NDE-8704-RXL and NDE-8704-RXL-H suitable for 24/7 surveillance applications requiring both high-resolution image detail and infrared nighttime coverage.
Remote PTRZ commissioning allows installers to remotely pan, tilt, roll, zoom, and focus the camera without opening the housing or physically adjusting the lens. This simplifies installation, speeds commissioning, and enables later optimization across multi-camera sites or difficult-to-access mounting locations.
Integrated Bosch IQsight IVA Pro analytics provide deep-learning-based detection and classification of people and vehicles. Included analytics packages include IVA Pro Buildings, IVA Pro Perimeter, IVA Pro Privacy, and Camera Trainer, with optional licenses available for traffic analytics, appearance search, PPE detection, license plate recognition, vehicle make/model, dangerous goods signs, visual gun detection, and intelligent audio analytics.
The Bosch IQsight FLEXIDOME 8100i IR X 8MP camera is designed for demanding indoor and outdoor environments with an aluminum housing, clear polycarbonate bubble, IP66/IP67/IP6K9K weather protection, IK11 impact resistance, NEMA Type 4X protection, Electronic Image Stabilization, built-in microphone, secure boot, signed firmware, TPM security, TLS 1.3 encryption, and dual microSD edge recording. The NDE-8704-RXL-H hydrophilic bubble model is recommended for outdoor deployments where rain and water behavior on the dome bubble are important for visibility.
Key Features:
• Bosch IQsight FLEXIDOME 8100i IR X fixed dome IP camera
• Available models: NDE-8704-RXL and NDE-8704-RXL-H
• 8MP / 4K UHD resolution, 3840 x 2160
• Large 1/1.2" CMOS sensor
• 5.9-13mm motorized PTRZ lens
• Integrated split IR design
• Intelligent IR illumination up to 50m / 164ft
• 850nm infrared wavelength
• Starlight X low-light imaging technology
• HDR X wide dynamic range up to 128dB
• Remote pan, tilt, roll, zoom, and focus commissioning
• IVA Pro Buildings, IVA Pro Perimeter, and IVA Pro Privacy included
• Camera Trainer machine-learning analytics
• Optional IVA Pro analytics licenses supported
• Electronic Image Stabilization (EIS)
• Built-in microphone
• H.265 / H.264 / M-JPEG video compression
• Bosch Intelligent Streaming
• Dual microSD card support up to 2TB
• ONVIF Profile S, G, T, and M compliant
• Secure boot, signed firmware, TPM, and TLS 1.3 support
• IP66 / IP67 / IP6K9K weather protection
• IK11 impact-resistant housing
• Optional hydrophilic bubble model available
• NDAA and TAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 8MP / 4K UHD
• Effective Pixels: 3840 x 2160
• Sensor Type: 1/1.2" CMOS
• Pixel Size: 2.9μm
• Low-Light Technology: Starlight X
• Minimum Illumination:
- Color: 0.011 lux at F1.6
- Monochrome: 0.002 lux at F1.6
• Dynamic Range: HDR X up to 128dB
Lens:
• Focal Length: 5.9mm to 13mm
• Aperture: F1.3 to F1.97
• Horizontal Field of View: 110° to 48°
• Vertical Field of View: 56° to 27°
• Iris Control: P-Iris
• Zoom / Focus: Motorized
• Field of View Adjustment: Motorized Pan, Tilt, Roll, Autofocus
Night Vision:
• IR Function: On / Off / Auto / Intelligent IR
• IR Intensity: Manual / Automatic / Intelligent intensity
• Built-In IR Distance: 50m / 164ft
• IR Wavelength: 850nm
• IR Design: Split IR
Video:
• Compression: H.265 / H.264 / M-JPEG
• Frame Rate: 1 to 30fps
• Maximum Resolution: 3840 x 2160
• Streaming: Multiple configurable streams
• Intelligent Streaming: Supported
• Signal-to-Noise Ratio: >55dB
• Upright Mode: Supported
• Scene Modes: Traffic, Night Optimized, Vibrant, Low Bitrate, Sports & Gaming, Retail, Intelligent AE, Indoor, Outdoor, License Plate Recognition
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• IVA Pro Privacy
• Camera Trainer
• 3D Auto Calibration
• Object Detection and Classification
• Line Crossing
• Enter / Leave Field
• Loitering
• Occupancy and People Counting
• Crowd Density Estimation
• Similarity Search
• Flow / Counter Flow
• Objects Stopping or Starting to Move
• Up to 16 Simultaneous Alarm Rules
Storage:
• Dual microSDHC / microSDXC card slots
• Dual microSD support up to 2TB
• Mirrored, Failover, Extended, and Automatic Network Replenishment modes
• 5-second pre-alarm recording
Network & Security:
• Ethernet: 10/100/1000BASE-T
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Encryption: TLS 1.2, TLS 1.3, AES 128/256
• TPM / Secure Element: Supported
• Secure Boot and Signed Firmware
• Local Storage Encryption: XTS-AES
Power:
• PoE+: IEEE 802.3at Type 2, Class 4
• Auxiliary Power: 24VAC or 12-26VDC
• Typical / Maximum PoE Consumption: 7W / 25.5W
• Redundant Power: PoE+ and auxiliary power can be connected simultaneously
Environmental & Mechanical:
• Housing Material: Aluminum
• Bubble Material: Clear Polycarbonate
• Impact Protection: IK11
• Weather Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Operating Temperature: -50°C to +60°C

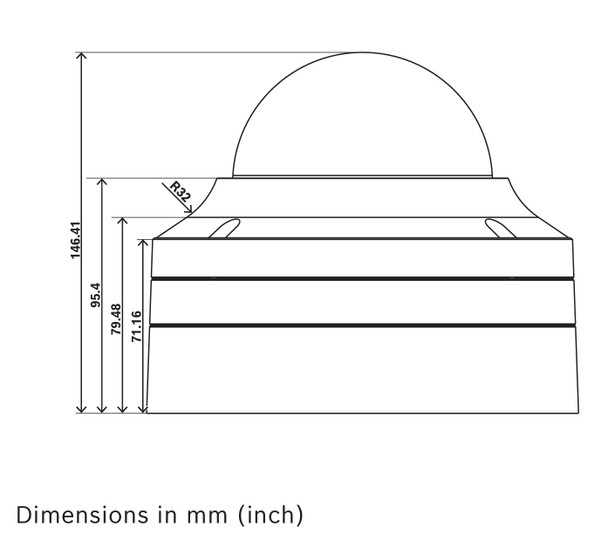

• Dimensions: 175mm x 148mm
• Weight: 2.30kg
• Color: Signal White, RAL 9003
• Mounting Type: Surface-mounted
Model Variants:
• NDE-8704-RXL – 8MP, 5.9-13mm lens, integrated IR, standard clear bubble
• NDE-8704-RXL-H – 8MP, 5.9-13mm lens, integrated IR, hydrophilic bubble
Compatible Accessories:
• NDA-8000-CND – Conduit Adapter, 4 pcs
• NDA-8000-CBL – Clear Replacement Bubble
• NDA-8000-TBL – Tinted Bubble
• NDA-8000-HCBL – Hydrophilic Bubble

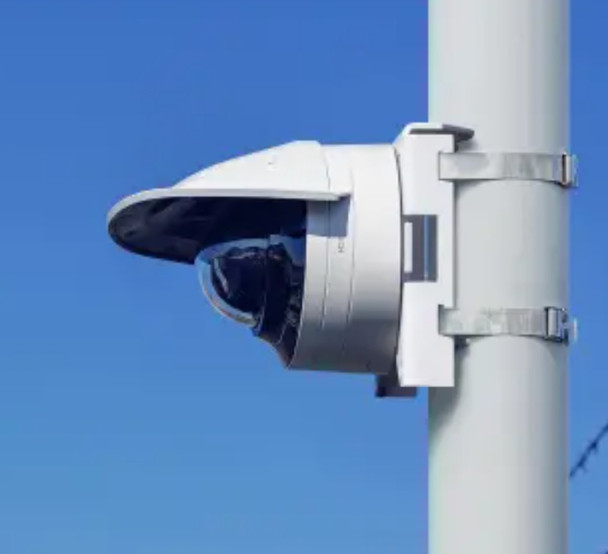

• NDA-8000-WPIR – On-Camera Weather Protector IR
• NDA-8000-PIPWIR – Pendant Interface Plate, Outdoor IR
• NDA-8002-PLEN – In-Ceiling Plenum Rated Kit
• NDA-8002-IC – In-Ceiling Mount Kit
• NDA-8000-SP – In-Ceiling Mount Support Kit
• NDA-8000-PCIR – Paintable Cover, 4 pcs, IR
• NDA-U-WMT – Pendant Wall Mount
• NDA-U-PMT – Pendant Pipe Mount, 12"
• NDA-U-PMTS – Pendant Pipe Mount, 4"
• NDA-U-PSMB – Pendant Wall/Ceiling Mount SMB
• NDA-U-PMAS – Pole Mount Adapter, Small
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-RMT – Pendant Parapet Mount
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is the standard clear bubble model. Specify hydrophilic bubble version if required.
