Description

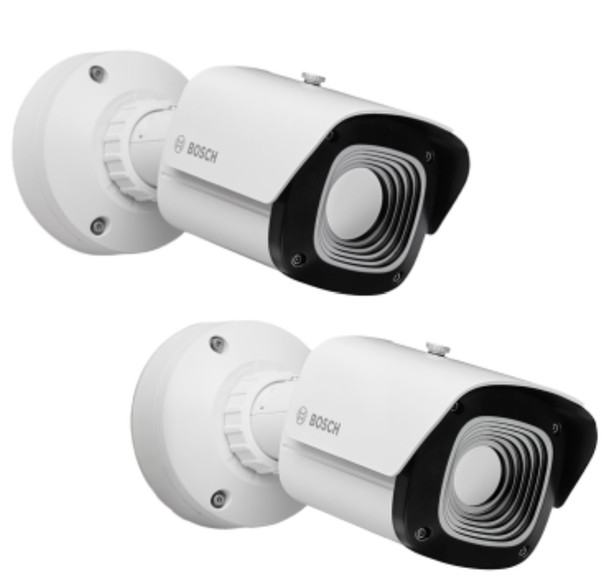

The Bosch IQsight DINION thermal 8100i NBT-8701-F06VF is a high-resolution VGA thermal bullet IP camera designed for wide-area thermal detection and perimeter surveillance in mission-critical outdoor environments. With 640 x 480 thermal resolution, 30Hz imaging, IVA Pro Perimeter, rugged construction, and strong cybersecurity, the NBT-8701-F06VF is suited for sites that need better thermal image detail than QVGA models while retaining a wide field of view.
This NBT-8701-F06VF model uses a 6mm fixed athermalized lens with a 70° horizontal field of view and 53° vertical field of view. It is the widest VGA model in the DINION thermal 8100i family, making it ideal for broad scene coverage around perimeters, industrial facilities, utilities, transportation sites, critical infrastructure, open yards, parking areas, and exterior approaches.
The 640 x 480 VGA thermal sensor uses uncooled VOx microbolometer technology with 12μm pixel pitch, 8μm to 14μm spectral range, and <30mK NETD sensitivity. Built-in IVA Pro Buildings and IVA Pro Perimeter provide intelligent object detection and tracking for person, bike, car, and truck classes, helping detect intrusions while reducing nuisance alarms caused by rain, wind, vegetation, shadows, reflections, and small animals.
Maximum IVA Pro Perimeter detection range for the 70° VGA lens is approximately 77m / 253ft for upright persons, 46m / 151ft for crawling persons, and 138m / 453ft for frontal vehicles under optimal conditions. The camera supports H.265/H.264/M-JPEG compression, four configurable streams, 12 thermal color modes, dual microSD recording, alarm I/O, audio I/O, fiber media converter support, and ONVIF Profile S/G/T/M.
The Bosch IQsight DINION thermal 8100i NBT-8701-F06VF includes an aluminum housing, germanium glass window, automatic window defroster, automatic interior heater, IP66/IP67 weather protection, IK10 impact resistance excluding front window, UL50 Type 4X protection, -40°C to +55°C operation, PoE or auxiliary power, TPM security, signed firmware, secure boot, and NDAA/TAA compliance.
Key Features:
• Bosch IQsight DINION thermal 8100i VGA thermal bullet camera
• Model: NBT-8701-F06VF
• 640 x 480 VGA thermal resolution
• 30Hz thermal imaging
• 6mm fixed athermalized lens
• 70° horizontal field of view
• 53° vertical field of view
• Wide VGA thermal coverage
• Uncooled VOx microbolometer
• <30mK thermal sensitivity
• IVA Pro Buildings and IVA Pro Perimeter included
• AI-based autocalibration
• Person, bike, car, and truck object classes
• H.265 / H.264 / M-JPEG compression
• Four configurable streams
• Dual microSD recording up to 2TB
• Germanium glass window
• Automatic window defroster
• Automatic interior heater
• IP66 / IP67 weather protection
• IK10 impact protection excluding front window
• UL50 Type 4X protection
• PoE, 24VAC, and 12VDC support
• NDAA and TAA compliant
Technical Specifications Summary:
• Resolution: VGA, 640 x 480
• Sensor Type: Uncooled microbolometer / VOx
• Spectral Range: 8μm to 14μm
• Pixel Pitch: 12μm
• Frame Rate: 1fps to 30fps
• Thermal Sensitivity: <30mK at 25°C
• Lens: 6mm, F0.8
• Focus: Fixed focus, athermalized
• Minimum Focus Distance: 2m
• Horizontal FOV: 70°
• Vertical FOV: 53°
Maximum IVA Pro Perimeter Detection Range:
• Upright Person: 77m / 253ft
• Crawling Person: 46m / 151ft
• Frontal Vehicle: 138m / 453ft
Shared Specifications:
• Analytics: MOTION+, IVA Pro Buildings, IVA Pro Perimeter
• Object Classes: Person, Bike, Car, Truck
• Compression: H.265 / H.264 / M-JPEG
• Streaming: 4 configurable streams
• Thermal Color Mapping: 12 selectable modes
• Storage: Dual microSD card slots up to 2TB
• Network: RJ45 and punch-down connector
• ONVIF: Profile S, G, T, M
• Power: PoE Class 3, 24VAC, or 12VDC–26VDC

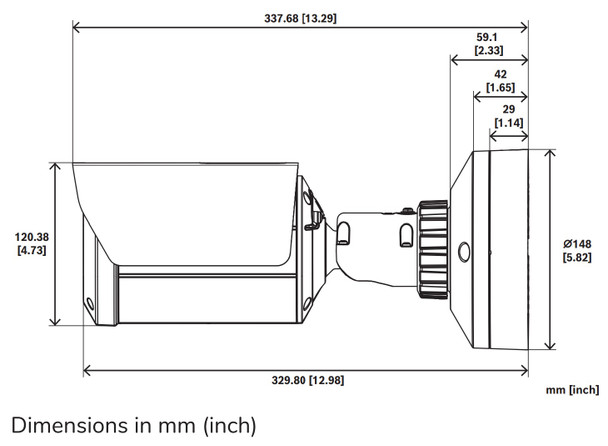

• Dimensions: 148mm x 352mm
• Weight: 2.95kg / 6.50lb
• Housing: Aluminum with dehumidifying membrane and waterproof connection area
• Window Material: Germanium glass
• Operating Temperature: -40°C to +55°C
• IP Rating: IP66 / IP67
• Impact Protection: IK10 excluding front window
• Degree of Protection: UL50 Type 4X
Model:
• NBT-8701-F06VF – DINION Thermal 8100i VGA Bullet Camera, 6mm Lens, 70° FOV, 30Hz
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-CBB – Conduit Back Box, 148mm
• NBA-7070-PA0 / PA1 / PA2 – Direct-Mount Surveillance Cabinet Options
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• NCA-WLAN-NA – Wireless Installation Dongle, North America
