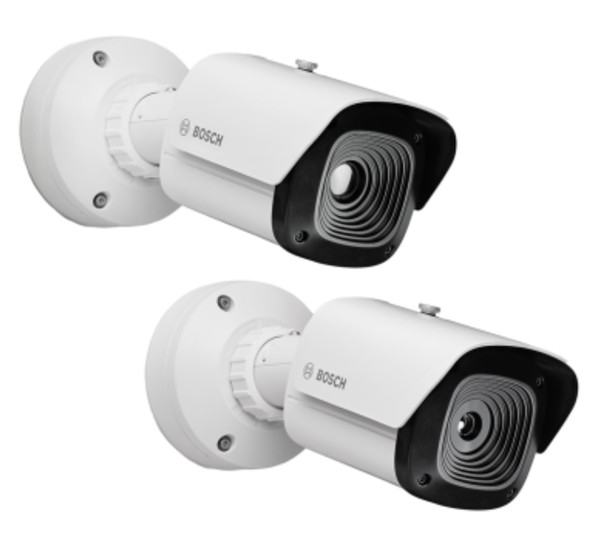

Name: Bosch IQsight DINION Thermal 8100i NBT-8700-F05QF – QVGA 45° 5mm Bullet IP Camera
Brand: Bosch
SKU: NBT-8700-F05QF
Availability: OutOfStock

Bosch IQsight DINION Thermal 8100i NBT-8700-F05QF – QVGA 45° 5mm Bullet IP Camera

Write a Review

SKU:

NBT-8700-F05QF

Description

Description

The Bosch IQsight DINION thermal 8100i NBT-8700-F05QF is a QVGA thermal bullet IP camera designed for perimeter detection, outdoor intrusion monitoring, and 24/7 thermal surveillance without relying on visible light. The NBT-8700-F05QF uses heat-based imaging to identify people, vehicles, and objects in darkness, fog, smoke, glare, and visually complex environments where standard visible-light cameras may struggle.

This model uses a 5mm fixed athermalized thermal lens with a 45° horizontal field of view and 34° vertical field of view. It provides a balanced QVGA thermal view for medium-width perimeter scenes, making it well suited for fence lines, gates, building perimeters, substations, utility yards, transportation areas, industrial sites, and outdoor security zones where users need more reach than the 80° model but wider coverage than the 24° or 12° models.

The NBT-8700-F05QF captures 320 x 240 QVGA thermal video at up to 30Hz using an uncooled VOx microbolometer with <30mK NETD sensitivity. Built-in IVA Pro Buildings and IVA Pro Perimeter provide deep-learning-based object detection and classification for person, bike, car, and truck classes. These analytics help reduce false alarms from rain, wind, vegetation, shadows, reflections, and small animals.

Maximum IVA Pro Perimeter detection range for the 45° QVGA lens is approximately 64m / 210ft for upright persons, 38m / 125ft for crawling persons, and 115m / 377ft for frontal vehicles under optimal conditions. The camera supports H.265 compression, four configurable streams, 12 thermal color modes, dual microSD recording, RJ45 and punch-down Ethernet, alarm I/O, audio I/O, TPM cybersecurity, signed firmware, secure boot, and ONVIF Profile S/G/T/M.

The Bosch IQsight DINION thermal 8100i NBT-8700-F05QF is built for harsh outdoor environments with IP66/IP67 weather protection, IK10 impact resistance, UL50 Type 4X protection, aluminum housing, automatic interior heater, -40°C to +55°C operation, PoE or auxiliary power, and NDAA/TAA compliance.

Key Features:

• Bosch IQsight DINION thermal 8100i QVGA thermal bullet camera

• Model: NBT-8700-F05QF

• 320 x 240 QVGA thermal resolution

• 30Hz thermal imaging

• 5mm fixed athermalized lens

• 45° horizontal field of view

• 34° vertical field of view

• Balanced QVGA thermal coverage for medium-width perimeter scenes

• Uncooled VOx microbolometer

• <30mK thermal sensitivity

• IVA Pro Buildings and IVA Pro Perimeter included

• AI-based autocalibration

• Person, bike, car, and truck object classes

• H.265 / H.264 / M-JPEG compression

• Four configurable video streams

• Dual microSD card slots up to 2TB

• Audio and alarm I/O

• RJ45 and punch-down network connection

• USB-C wireless commissioning

• IP66 / IP67 weather protection

• IK10 impact protection

• UL50 Type 4X protection

• PoE, 24VAC, and 12VDC support

• NDAA and TAA compliant

Technical Specifications Summary:

• Resolution: QVGA, 320 x 240

• Sensor Type: Uncooled microbolometer / VOx

• Spectral Range: 8μm to 14μm

• Pixel Pitch: 12μm

• Frame Rate: 1fps to 30fps

• Thermal Sensitivity: <30mK at 25°C

• Lens: 5mm, F0.8

• Focus: Fixed focus, athermalized

• Minimum Focus Distance: 1.25m

• Horizontal FOV: 45°

• Vertical FOV: 34°

Maximum IVA Pro Perimeter Detection Range:

• Upright Person: 64m / 210ft

• Crawling Person: 38m / 125ft

• Frontal Vehicle: 115m / 377ft

Video / Analytics / Storage:

• Compression: H.265 / H.264 / M-JPEG

• Streaming: 4 configurable streams

• Privacy Masks: 8

• Thermal Color Mapping: 12 selectable modes

• Analytics: MOTION+, IVA Pro Buildings, IVA Pro Perimeter

• Alarm Triggers: object in field, line crossing, enter / leave field, loitering, follow route, idle / removed object, occupancy, objects stopping or starting to move

• Object Classes: Person, Bike, Car, Truck

• Dual microSD card slots up to 2TB

• Mirror, failover, extend, and Automatic Network Replenishment modes

Network / Power / Environmental:

• Ethernet: 10/100BASE-T, RJ45 and punch-down

• ONVIF Profile S, G, T, M

• TPM: RSA 4096-bit, AES/CBC 256-bit

• Encryption: TLS 1.2 / TLS 1.3, AES 128/256

• PoE: IEEE 802.3af / 802.3at Type 1, Class 3

• Auxiliary Power: 24VAC or 12VDC–26VDC

• Dimensions: 148mm x 352mm

• Weight: 2.95kg / 6.50lb
