Description

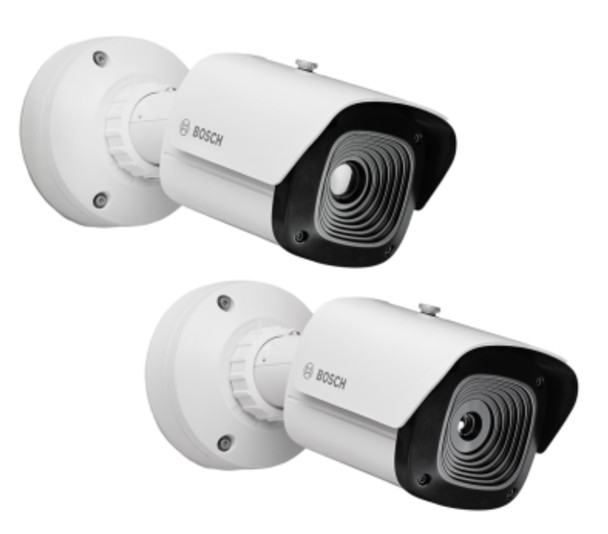

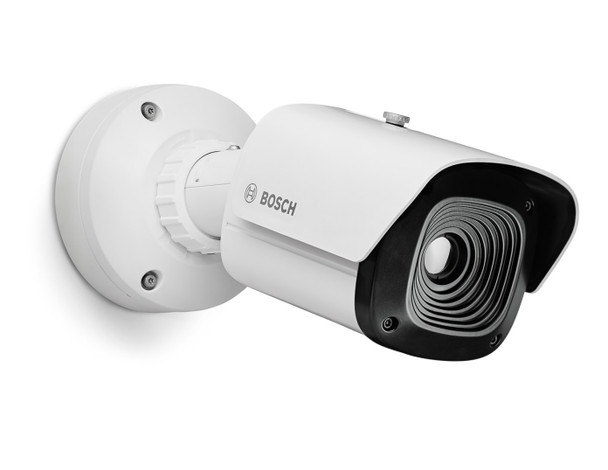

The Bosch IQsight DINION thermal 8100i NBT-8700-F09QF is a QVGA thermal bullet IP camera designed for longer perimeter detection than the wider QVGA models while maintaining reliable thermal performance in darkness, fog, smoke, glare, shadows, and harsh outdoor environments. By detecting heat signatures instead of visible light, the NBT-8700-F09QF supports dependable 24/7 intrusion detection for critical security applications.
This model uses a 9mm fixed athermalized thermal lens with a 24° horizontal field of view and 18° vertical field of view. It is a strong choice for longer fence lines, perimeter lanes, restricted zones, utility sites, transportation corridors, industrial yards, remote gates, and infrastructure applications where a narrower QVGA thermal view is preferred for increased detection distance.
The NBT-8700-F09QF uses a 320 x 240 thermal sensor with 30Hz frame rate, 12μm pixel pitch, and <30mK NETD sensitivity. Built-in IVA Pro Buildings and IVA Pro Perimeter provide intelligent detection and tracking of persons, bikes, cars, and trucks, helping reduce false alarms in environments affected by rain, wind, vegetation, reflections, and small animals.
Maximum IVA Pro Perimeter detection range for the 24° QVGA lens is approximately 124m / 407ft for upright persons, 75m / 246ft for crawling persons, and 224m / 735ft for frontal vehicles under optimal conditions. The camera includes H.265/H.264/M-JPEG compression, four configurable streams, thermal color mapping, dual microSD recording, audio I/O, alarm I/O, USB-C wireless commissioning, optional fiber support, ONVIF Profile S/G/T/M, TPM cybersecurity, and NDAA/TAA compliance.
With aluminum outdoor construction, IP66/IP67 ingress protection, IK10 impact resistance, UL50 Type 4X protection, automatic interior heater, and -40°C to +55°C operation, the Bosch IQsight DINION thermal 8100i NBT-8700-F09QF is built for demanding perimeter and infrastructure surveillance.
Key Features:
• Bosch IQsight DINION thermal 8100i QVGA thermal bullet camera
• Model: NBT-8700-F09QF
• 320 x 240 QVGA thermal resolution
• 30Hz thermal imaging
• 9mm fixed athermalized lens
• 24° horizontal field of view
• 18° vertical field of view
• Longer-range QVGA thermal detection
• Uncooled VOx microbolometer
• <30mK thermal sensitivity
• IVA Pro Buildings and IVA Pro Perimeter included
• AI-based autocalibration
• Person, bike, car, and truck object classes
• H.265 / H.264 / M-JPEG compression
• Four configurable video streams
• 12 selectable thermal color modes
• Dual microSD recording up to 2TB
• Audio and alarm I/O
• RJ45 and punch-down network connection
• USB-C wireless commissioning
• IP66 / IP67 / IK10 / UL50 Type 4X
• PoE, 24VAC, and 12VDC power support
• NDAA and TAA compliant
Technical Specifications Summary:
• Resolution: QVGA, 320 x 240
• Sensor Type: Uncooled microbolometer / VOx
• Spectral Range: 8μm to 14μm
• Pixel Pitch: 12μm
• Frame Rate: 1fps to 30fps
• Thermal Sensitivity: <30mK at 25°C
• Lens: 9mm, F0.8
• Focus: Fixed focus, athermalized
• Minimum Focus Distance: 4.2m
• Horizontal FOV: 24°
• Vertical FOV: 18°
Maximum IVA Pro Perimeter Detection Range:
• Upright Person: 124m / 407ft
• Crawling Person: 75m / 246ft
• Frontal Vehicle: 224m / 735ft
Shared Specifications:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: 4 configurable streams
• Analytics: MOTION+, IVA Pro Buildings, IVA Pro Perimeter
• Object Classes: Person, Bike, Car, Truck
• Storage: Dual microSDHC / microSDXC slots up to 2TB
• Network: 10/100BASE-T, RJ45 and punch-down
• ONVIF: Profile S, G, T, M
• Security: TPM, TLS 1.2 / 1.3, AES encryption, signed firmware, secure boot
• Power: PoE Class 3, 24VAC, or 12VDC–26VDC

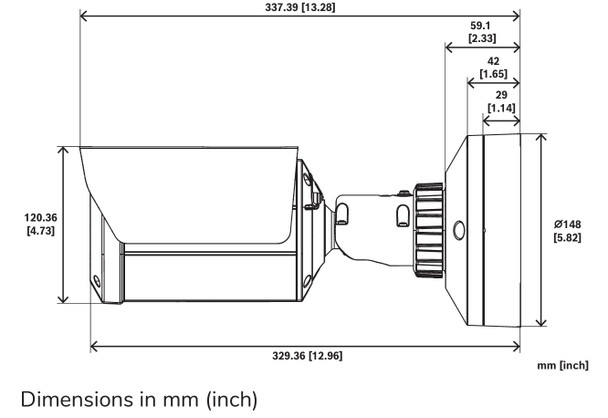

• Dimensions: 148mm x 352mm
• Weight: 2.95kg / 6.50lb
• Operating Temperature: -40°C to +55°C
• IP Rating: IP66 / IP67
• Impact Protection: IK10
• Degree of Protection: UL50 Type 4X
Model:
• NBT-8700-F09QF – DINION Thermal 8100i QVGA Bullet Camera, 9mm Lens, 24° FOV, 30Hz
Compatible Accessories:

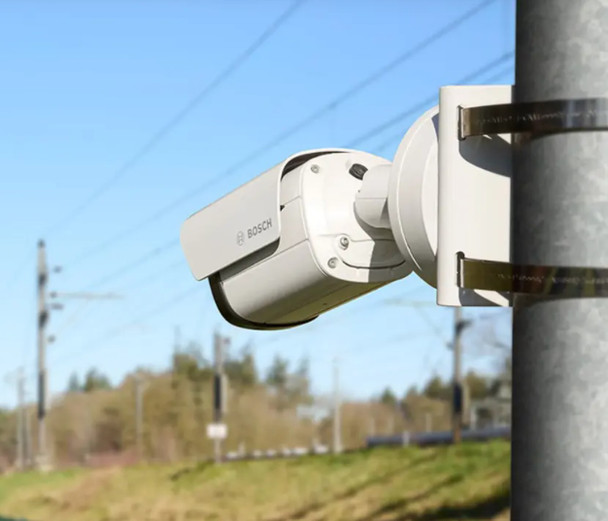

• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-CBB – Conduit Back Box, 148mm
• NBA-7070-PA0 / PA1 / PA2 – Direct-Mount Surveillance Cabinet Options
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• NCA-WLAN-NA – Wireless Installation Dongle, North America
