Description
The Bosch IQsight DINION thermal 8100i NBT-8701-F25VF is a long-range VGA thermal bullet IP camera designed for professional perimeter intrusion detection and mission-critical outdoor surveillance. With a 25mm fixed athermalized lens, 640 x 480 VGA thermal imaging, IVA Pro Perimeter, and rugged construction, the NBT-8701-F25VF is built for applications where detection distance is more important than wide scene coverage.
This model provides a 17° horizontal field of view and 13° vertical field of view, making it suitable for long fence lines, roadway monitoring, industrial sites, critical infrastructure, utility corridors, transportation perimeters, border-style perimeter views, and remote gates. The thermal imager detects heat signatures in zero lux conditions and remains effective where visible-light cameras may be impacted by smoke, fog, darkness, glare, headlights, or shadows.
The NBT-8701-F25VF captures 640 x 480 thermal video at up to 30Hz with an uncooled VOx microbolometer, 12μm pixel pitch, and <30mK NETD sensitivity. IVA Pro Buildings and IVA Pro Perimeter support object detection and classification for persons, bikes, cars, and trucks, with map-based, measurement-based, and AI-based autocalibration.
Maximum IVA Pro Perimeter detection range for the 17° VGA lens is approximately 353m / 1158ft for upright persons, 207m / 679ft for crawling persons, and 622m / 2041ft for frontal vehicles under optimal conditions. The camera also includes H.265 compression, four configurable streams, 12 thermal color modes, dual microSD recording, RJ45 and punch-down Ethernet, audio I/O, alarm I/O, optional fiber support, ONVIF Profile S/G/T/M, TPM cybersecurity, signed firmware, and secure boot.
The Bosch IQsight DINION thermal 8100i NBT-8701-F25VF is housed in an aluminum outdoor enclosure with germanium glass window, automatic window defroster, automatic interior heater, IP66/IP67 protection, IK10 impact protection excluding front window, UL50 Type 4X protection, -40°C to +55°C operation, and NDAA/TAA compliance.
Key Features:
• Bosch IQsight DINION thermal 8100i VGA thermal bullet camera
• Model: NBT-8701-F25VF
• 640 x 480 VGA thermal resolution
• 30Hz thermal imaging
• 25mm fixed athermalized lens
• 17° horizontal field of view
• 13° vertical field of view
• Long-range VGA thermal perimeter detection
• Upright person detection up to 353m under optimal IVA conditions
• Frontal vehicle detection up to 622m under optimal IVA conditions
• IVA Pro Buildings and IVA Pro Perimeter included
• AI-based autocalibration
• H.265 / H.264 / M-JPEG compression
• Four configurable streams
• Dual microSD card slots up to 2TB
• Audio and alarm I/O
• RJ45 and punch-down Ethernet
• Automatic window defroster and interior heater
• IP66 / IP67 / IK10 / UL50 Type 4X
• PoE, 24VAC, and 12VDC power support
• NDAA and TAA compliant
Technical Specifications Summary:
• Resolution: VGA, 640 x 480
• Sensor Type: Uncooled VOx microbolometer
• Spectral Range: 8μm to 14μm
• Pixel Pitch: 12μm
• Frame Rate: 1fps to 30fps
• Thermal Sensitivity: <30mK at 25°C
• Lens: 25mm, F0.8
• Focus: Fixed focus, athermalized
• Minimum Focus Distance: 32m
• Horizontal FOV: 17°
• Vertical FOV: 13°
Maximum IVA Pro Perimeter Detection Range:
• Upright Person: 353m / 1158ft
• Crawling Person: 207m / 679ft
• Frontal Vehicle: 622m / 2041ft
Shared Specifications:
• Analytics: MOTION+, IVA Pro Buildings, IVA Pro Perimeter
• Object Classes: Person, Bike, Car, Truck
• Compression: H.265 / H.264 / M-JPEG
• Thermal Color Mapping: 12 selectable modes
• Storage: Dual microSD card slots up to 2TB
• Network: RJ45 and punch-down connector
• ONVIF: Profile S, G, T, M
• Security: TPM, TLS 1.2 / 1.3, AES encryption, XTS-AES local storage encryption, signed firmware, secure boot
• Power: PoE Class 3, 24VAC, or 12VDC–26VDC

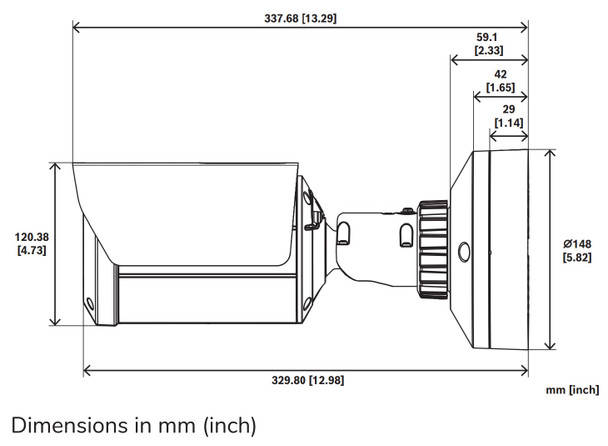

• Dimensions: 148mm x 352mm
• Weight: 2.95kg / 6.50lb
• Window Material: Germanium glass
• Operating Temperature: -40°C to +55°C
• IP Rating: IP66 / IP67
• Impact Protection: IK10 excluding front window
• Degree of Protection: UL50 Type 4X
Model:
• NBT-8701-F25VF – DINION Thermal 8100i VGA Bullet Camera, 25mm Lens, 17° FOV, 30Hz
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-CBB – Conduit Back Box, 148mm
• NBA-7070-PA0 / PA1 / PA2 – Direct-Mount Surveillance Cabinet Options
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• NCA-WLAN-NA – Wireless Installation Dongle, North America
