Description
The Bosch IQsight DINION thermal 8100i NBT-8700-F18QF is the longest-range QVGA model in the DINION thermal 8100i family. Designed for perimeter intrusion detection and long-distance thermal monitoring, the NBT-8700-F18QF uses heat-based imaging to detect people and vehicles without visible light, making it effective in complete darkness, smoke, fog, glare, shadows, and challenging outdoor conditions.
This model features an 18mm fixed athermalized lens with a narrow 12° horizontal field of view and 9° vertical field of view. It is best suited for long fence lines, remote gates, border-style perimeter views, industrial sites, transportation corridors, utility infrastructure, and high-security applications where longer-range QVGA thermal detection is needed.
The NBT-8700-F18QF captures 320 x 240 QVGA thermal video at up to 30Hz using an uncooled VOx microbolometer with 12μm pixel pitch and <30mK NETD sensitivity. Built-in IVA Pro Buildings and IVA Pro Perimeter provide intelligent classification for persons, bikes, cars, and trucks, while AI-based autocalibration simplifies setup.
Maximum IVA Pro Perimeter detection range for the 12° QVGA lens is approximately 250m / 820ft for upright persons, 149m / 489ft for crawling persons, and 447m / 1467ft for frontal vehicles under optimal conditions. The camera supports H.265 video compression, four streams, thermal color mapping, dual microSD recording, audio I/O, alarm I/O, RJ45 and punch-down Ethernet, optional fiber support, ONVIF Profile S/G/T/M, TPM security, signed firmware, secure boot, and NDAA/TAA compliance.
Built for mission-critical environments, the Bosch IQsight DINION thermal 8100i NBT-8700-F18QF includes IP66/IP67 weather protection, IK10 impact resistance, UL50 Type 4X protection, aluminum construction, automatic heater, -40°C to +55°C operating range, and flexible PoE / 24VAC / 12VDC power support.
Key Features:
• Bosch IQsight DINION thermal 8100i QVGA thermal bullet camera
• Model: NBT-8700-F18QF
• 320 x 240 QVGA thermal resolution
• 30Hz thermal imaging
• 18mm fixed athermalized lens
• 12° horizontal field of view
• 9° vertical field of view
• Longest-range QVGA DINION thermal 8100i model
• Upright person detection up to 250m under optimal IVA conditions
• Frontal vehicle detection up to 447m under optimal IVA conditions
• IVA Pro Buildings and IVA Pro Perimeter included
• H.265 / H.264 / M-JPEG compression
• Dual microSD slots up to 2TB
• Audio and alarm I/O
• IP66 / IP67 / IK10 / UL50 Type 4X
• PoE, 24VAC, and 12VDC power support
• NDAA and TAA compliant
Technical Specifications Summary:
• Resolution: QVGA, 320 x 240
• Sensor Type: Uncooled VOx microbolometer
• Spectral Range: 8μm to 14μm
• Pixel Pitch: 12μm
• Frame Rate: 1fps to 30fps
• Thermal Sensitivity: <30mK at 25°C
• Lens: 18mm, F0.8
• Focus: Fixed focus, athermalized
• Minimum Focus Distance: 16m
• Horizontal FOV: 12°
• Vertical FOV: 9°
Maximum IVA Pro Perimeter Detection Range:
• Upright Person: 250m / 820ft
• Crawling Person: 149m / 489ft
• Frontal Vehicle: 447m / 1467ft
Shared Specifications:
• Analytics: MOTION+, IVA Pro Buildings, IVA Pro Perimeter
• Object Classes: Person, Bike, Car, Truck
• Compression: H.265 / H.264 / M-JPEG
• Streaming: 4 configurable streams
• Storage: Dual microSD card slots up to 2TB
• Network: 10/100BASE-T, RJ45 and punch-down connector
• ONVIF: Profile S, G, T, M
• Security: TPM, TLS encryption, local storage encryption, signed firmware, secure boot
• Power: PoE Class 3, 24VAC, or 12VDC–26VDC

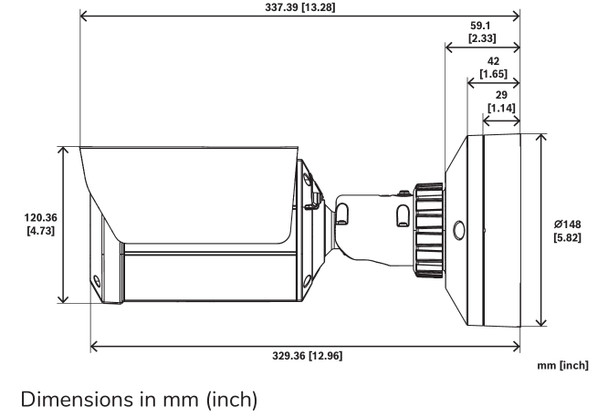

• Dimensions: 148mm x 352mm
• Weight: 2.95kg / 6.50lb
• Operating Temperature: -40°C to +55°C
• IP Rating: IP66 / IP67
• Impact Protection: IK10
• Degree of Protection: UL50 Type 4X
Model:
• NBT-8700-F18QF – DINION Thermal 8100i QVGA Bullet Camera, 18mm Lens, 12° FOV, 30Hz
Compatible Accessories:

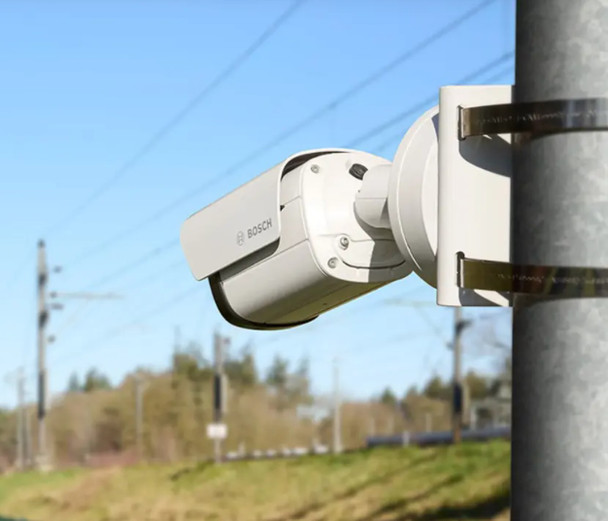

• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-CBB – Conduit Back Box, 148mm
• NBA-7070-PA0 / PA1 / PA2 – Direct-Mount Surveillance Cabinet Options
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• NCA-WLAN-NA – Wireless Installation Dongle, North America
