Description

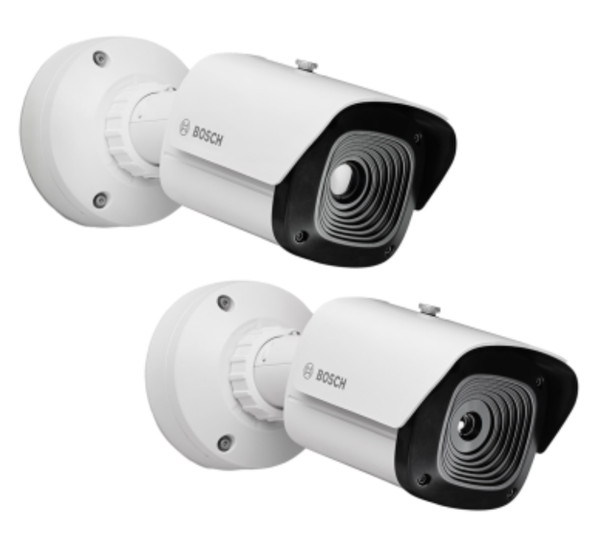

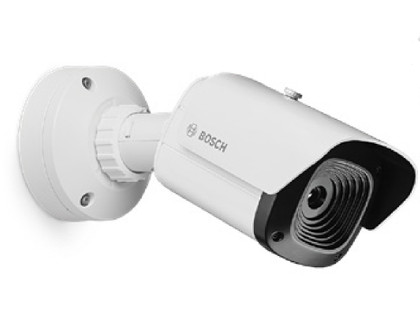

The Bosch IQsight DINION thermal 8100i NBT-8700-F03QF is a QVGA thermal bullet IP camera designed for wide-area thermal detection in mission-critical outdoor surveillance applications. Using thermal imaging rather than visible light, the NBT-8700-F03QF detects heat signatures from people, vehicles, and objects, making it effective in complete darkness, smoke, fog, glare, shadows, and challenging perimeter environments.
This NBT-8700-F03QF model features a 3mm fixed athermalized lens with an 80° horizontal field of view and 58° vertical field of view, making it the widest QVGA lens option in the DINION thermal 8100i family. It is best suited for shorter-range, wide-area perimeter coverage, entrances, fence lines, open yards, industrial facilities, utility sites, parking areas, and other locations where broad thermal awareness is more important than long-distance reach.
The QVGA thermal sensor captures 320 x 240 thermal video at up to 30Hz with a 12μm pixel pitch and <30mK NETD sensitivity. The NBT-8700-F03QF supports IVA Pro Buildings and IVA Pro Perimeter, enabling intelligent detection and tracking of persons, bikes, cars, and trucks while reducing false alarms caused by rain, wind, moving trees, reflections, shadows, and small animals.
Maximum IVA Pro Perimeter detection range for the 80° QVGA lens is approximately 32m / 105ft for upright persons, 19m / 62ft for crawling persons, and 58m / 190ft for frontal vehicles under optimal conditions. The camera also supports H.265/H.264/M-JPEG compression, four configurable video streams, thermal color mapping, dual microSD recording, audio I/O, alarm I/O, USB-C wireless commissioning, and fiber support via optional media converter.
Built for rugged outdoor use, the Bosch IQsight DINION thermal 8100i NBT-8700-F03QF includes IP66/IP67 weather protection, IK10 impact resistance, UL50 Type 4X protection, aluminum housing with dehumidifying membrane, automatic interior heater, -40°C to +55°C operating range, PoE or auxiliary power, TPM cybersecurity, TLS encryption, signed firmware, secure boot, ONVIF Profile S/G/T/M, and NDAA/TAA compliance.
Key Features:
• Bosch IQsight DINION thermal 8100i QVGA thermal bullet camera
• Model: NBT-8700-F03QF
• 320 x 240 QVGA thermal resolution
• 30Hz thermal imaging
• 3mm fixed athermalized lens
• 80° horizontal field of view
• 58° vertical field of view
• Wide-area thermal detection for short-range perimeter coverage
• Uncooled VOx microbolometer thermal sensor
• 8μm to 14μm spectral range
• <30mK thermal sensitivity
• IVA Pro Buildings and IVA Pro Perimeter included
• Person, bike, car, and truck object classes
• AI-based autocalibration
• H.265 / H.264 / M-JPEG compression
• Four configurable streams
• 12 selectable thermal color modes
• Dual microSD card slots up to 2TB
• Audio line input/output
• Alarm input/output
• RJ45 and punch-down network connection
• USB-C wireless commissioning support
• Optional fiber optic media converter support
• IP66 / IP67 weather protection
• IK10 impact protection
• UL50 Type 4X protection
• PoE, 24VAC, and 12VDC power support
• NDAA and TAA compliant
Technical Specifications Summary:
Camera / Thermal Sensor:
• Resolution: QVGA, 320 x 240
• Sensor Type: Uncooled microbolometer / VOx
• Spectral Range: 8μm to 14μm
• Pixel Pitch: 12μm
• Frame Rate: 1fps to 30fps
• Thermal Sensitivity: <30mK at 25°C
Lens:
• Focal Length: 3mm
• Lens Aperture: F0.8
• Focus: Fixed focus, athermalized
• Minimum Focus Distance: 0.5m
• Horizontal Field of View: 80°
• Vertical Field of View: 58°
Maximum IVA Pro Perimeter Detection Range:
• Upright Person: 32m / 105ft
• Crawling Person: 19m / 62ft
• Frontal Vehicle: 58m / 190ft
Analytics:
• MOTION+
• IVA Pro Buildings
• IVA Pro Perimeter
• Alarm Rules: object in field, line crossing, enter / leave field, loitering, follow route, idle / removed object, occupancy, objects stopping or starting to move
• Object Classes: Person, Bike, Car, Truck
• Calibration: Map-based, measurement-based, autocalibration
• Tamper Detection: Supported
Video / Storage / Network:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: 4 configurable streams
• GOP Structure: IP, IBP, IBBP
• Privacy Masks: 8
• Thermal Color Mapping: 12 selectable modes
• Memory Card Slots: 2 microSDHC / microSDXC slots, up to 2TB
• Recording Modes: Mirror, failover, extend, Automatic Network Replenishment
• Ethernet: 10/100BASE-T, RJ45 and punch-down connector
• ONVIF Profile S, G, T, M
• Platform: CPP14
Power / Mechanical / Environmental:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC–26VDC ±10%
• PoE Power Consumption: 12.9W
• Dimensions: 148mm x 352mm
• Weight: 2.95kg / 6.50lb
• Housing: Aluminum with dehumidifying membrane and waterproof connection area
• Color: RAL 9003 Signal White
• Operating Temperature: -40°C to +55°C
• Storage Temperature: -40°C to +70°C
• IP Rating: IP66 / IP67
• Impact Protection: IK10
• Degree of Protection: UL50 Type 4X
• Interior Heater: Auto
Model:
• NBT-8700-F03QF – DINION Thermal 8100i QVGA Bullet Camera, 3mm Lens, 80° FOV, 30Hz
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CMT – Corner Mount Adapter
• NDA-U-CBB – Conduit Back Box, 148mm
• NBA-7070-PA0 – Direct-Mount Surveillance Cabinet, 24VAC
• NBA-7070-PA1 – Direct-Mount Surveillance Cabinet, 120VAC
• NBA-7070-PA2 – Direct-Mount Surveillance Cabinet, 230VAC
• VG4-SFPSCKT – Ethernet to SFP Interface Kit
• NCA-WLAN-NA – Wireless Installation Dongle, North America
