Description

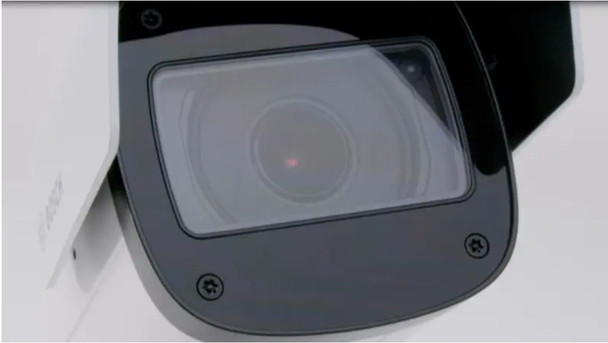

The Bosch IQsight DINION 7100i IR 8MP 4K bullet camera series is designed for high-detail outdoor surveillance in demanding environments such as transportation, traffic monitoring, critical infrastructure, perimeter security, parking areas, logistics facilities, campuses, and commercial sites. This consolidated 8MP HDR page includes NBE-7704-AL and NBE-7704-ALT, giving users a choice between a wide 4.4-10mm 4K model and a long-range 12-38mm telephoto 4K model.
The NBE-7704-AL uses a 4.4-10mm motorized P-iris lens with a 108° to 44° horizontal field of view, making it suitable for broad 4K scene coverage. The NBE-7704-ALT uses a 12-38mm motorized P-iris lens with a 35.8° to 12.1° horizontal field of view for long-range surveillance of roads, lanes, gates, distant perimeter points, and targeted outdoor scenes.
Both models capture 3840 x 2160 4K UHD video at up to 30fps from a 1/1.8" CMOS sensor. The NBE-7704-AL and NBE-7704-ALT use Bosch Starlight low-light technology and 120dB HDR to provide strong image quality in challenging lighting conditions. These models are best suited where 4K resolution and rugged outdoor durability are required, while the separate NBE-7704-ALX page is better for users who specifically need Starlight X and HDR X.
The smart IR system uses exchangeable illumination modules, with 850nm IR standard, optional 940nm invisible IR, and optional white light modules. The NBE-7704-AL wide variant provides up to 60m / 197ft 850nm IR, while the NBE-7704-ALT tele variant provides up to 120m / 394ft 850nm IR. Optional 940nm invisible IR supports up to 45m / 148ft on wide 8MP variants and up to 80m / 262ft on tele 8MP variants.
IVA Pro Buildings and IVA Pro Perimeter are included, providing deep-learning-based detection and tracking for people, vehicles, perimeter applications, traffic-related scenes, and crowded environments. Optional licenses can add IVA Pro Traffic, Appearance, PPE, License Plate, Vehicle Make Model, Dangerous Good Signs, Visual Gun Detection, and Gunshot Detection.
The NBE-7704-AL and NBE-7704-ALT include electronic image stabilization, dual microSD recording, audio line input/output, two alarm inputs, one alarm output, punch-down and shielded RJ45 network connections, USB-C wireless commissioning, H.265 compression, ONVIF Profile S/G/T/M support, Secure Element / TPM cybersecurity, IP66 / IP67 / IP6K9K protection, NEMA Type 4X, IK10 impact resistance, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 7100i IR 8MP 4K outdoor bullet camera series
• Models: NBE-7704-AL and NBE-7704-ALT
• 8MP / 4K UHD resolution, 3840 x 2160
• Starlight low-light technology
• High Dynamic Range up to 120dB
• NBE-7704-AL with 4.4-10mm wide lens
• NBE-7704-ALT with 12-38mm telephoto lens
• 850nm smart IR standard
• Up to 60m IR on NBE-7704-AL
• Up to 120m IR on NBE-7704-ALT
• Optional 940nm invisible IR modules
• Optional white light modules
• IVA Pro Buildings and IVA Pro Perimeter included
• Advanced analytics with optional IVA Pro licenses
• Electronic image stabilization
• H.265 / H.264 / M-JPEG compression
• Dual microSD card slots
• Audio and alarm I/O
• Punch-down and shielded RJ45 Ethernet connection
• IP66 / IP67 / IP6K9K, NEMA Type 4X, IK10
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 8MP / 4K UHD
• Effective Pixels: 3840 x 2160
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 2.0μm
• Low-Light Technology: Starlight
• Frame Rate: 1fps to 30fps
• HDR: 120dB
• NBE-7704-AL Color Sensitivity: 0.037 lux at F1.6
• NBE-7704-AL Monochrome Sensitivity: 0.0098 lux at F1.6, 0 lux with IR
• NBE-7704-ALT Color Sensitivity: 0.0899 lux
• NBE-7704-ALT Monochrome Sensitivity: 0.0095 lux, 0 lux with IR
Lens Options:
• NBE-7704-AL: 4.4-10mm motorized P-iris lens
• NBE-7704-AL Horizontal FOV: 108° to 44°
• NBE-7704-AL Vertical FOV: 58° to 24°
• NBE-7704-ALT: 12-38mm motorized P-iris lens
• NBE-7704-ALT Horizontal FOV: 35.8° to 12.1°
• NBE-7704-ALT Vertical FOV: 19.8° to 6.9°
Night Vision:
• IR Function: On / Off / Auto / Intelligent IR
• Default Illumination: 850nm
• Optional Illumination: 940nm invisible IR or white light
• 850nm IR Distance, NBE-7704-AL: 60m / 197ft
• 850nm IR Distance, NBE-7704-ALT: 120m / 394ft
• Optional 940nm IR Distance, NBE-7704-AL: 45m / 148ft
• Optional 940nm IR Distance, NBE-7704-ALT: 80m / 262ft
DORI Coverage:
NBE-7704-AL / 4.4-10mm:
• Detection: 55m to 172m
• Observation: 22m to 68m
• Recognition: 11m to 34m
• Identification: 5m to 17m
NBE-7704-ALT / 12-38mm:
• Detection: 237m to 724m
• Observation: 94m to 287m
• Recognition: 47m to 144m
• Identification: 23m to 72m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Sensor Modes: 25fps HDR, 30fps HDR, 3840 x 2160
• Resolution Options: 4K UHD, 6MP, 4.1MP, 1080p, 720p, SD, 512 x 288
• Camera Latency: <120ms at 30fps
• Image Stabilization: Electronic
• Privacy Masks: 8
• Scene Modes: Standard, sodium lighting, vibrant, sports & gaming, retail, fast movement, sensitivity boost, color only, LPR, backlight
Model Variants:
• NBE-7704-AL – 8MP 4K DINION 7100i IR Bullet Camera, 4.4-10mm Lens, Wide IR
• NBE-7704-ALT – 8MP 4K DINION 7100i IR Bullet Camera, 12-38mm Lens, Tele IR
Lens Selection Guide:
• Choose NBE-7704-AL for wide 8MP / 4K outdoor coverage
• Choose NBE-7704-ALT for long-range 8MP / 4K telephoto surveillance
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CBB – Conduit Back Box, 148mm
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• NPD-3001-WAP – Portable Installation Tool
• NBA-7070-LI – 940nm Invisible IR Module, Wide
• NBA-7070-LIT – 940nm Invisible IR Module, Tele
• NBA-7070-LW – White Light Illuminator Kit, Wide
• NBA-7070-LWT – White Light Illuminator Kit, Tele
• NBA-7070-PFT – Polarizing Filter Kit, Tele
• NBA-7070-PA0 / PA1 / PA2 – Surveillance Cabinet Options
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is NBE-7704-AL. Specify NBE-7704-ALT for long-range telephoto coverage.
