Description

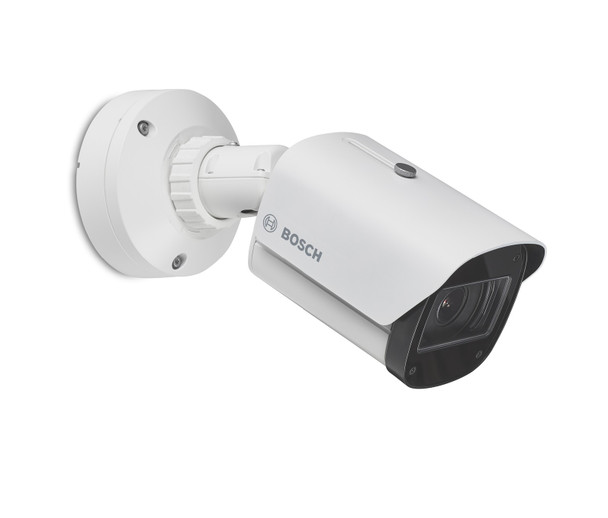

The Bosch IQsight DINION 7100i IR NBE-7704-ALX is the premium 8MP HDR X model in the DINION 7100i IR bullet camera family, designed for demanding outdoor applications that require 4K UHD detail, Starlight X low-light performance, HDR X imaging, intelligent analytics, and rugged mission-critical construction. Unlike the standard 8MP HDR models, the NBE-7704-ALX uses a larger 1/1.2" CMOS sensor with 2.9μm pixels, helping deliver improved low-light performance and HDR X imaging at 8MP resolution.
The NBE-7704-ALX captures 3840 x 2160 4K UHD video at up to 30fps with Starlight X technology and 128dB HDR X. Its 5.9-13mm motorized P-iris lens provides a 110° to 48° horizontal field of view, making it useful for wide-to-medium outdoor coverage where users want high-resolution image detail without sacrificing low-light performance. Applications include critical infrastructure, commercial facilities, transportation sites, parking areas, perimeter views, public spaces, loading areas, and security-sensitive outdoor locations.
HDR X technology helps preserve detail in both bright and dark areas of the scene while reducing HDR motion blur and artifacts. Combined with Starlight X technology, the NBE-7704-ALX is especially suited for scenes with moving vehicles, pedestrians, headlights, shadows, reflective surfaces, and mixed lighting.
The integrated smart IR system uses 850nm IR as standard and supports optional 940nm invisible IR or white light modules. As an 8MP wide variant, the NBE-7704-ALX provides up to 60m / 197ft of 850nm IR and up to 45m / 148ft with optional 940nm invisible IR. Intelligent IR intensity helps reduce overexposure and improve nighttime image balance.
IVA Pro Buildings and IVA Pro Perimeter are included, giving the NBE-7704-ALX advanced deep-learning-based detection and tracking of people and vehicles. The camera supports object in field, line crossing, enter / leave field, loitering, follow route, idle / removed object, counting, occupancy, crowd density estimation, condition change, similarity search, perimeter tracking, traffic tracking, people tracking, and automatic calibration. Optional software licenses add IVA Pro Traffic, Appearance, PPE, License Plate, Vehicle Make Model, Dangerous Good Signs, Visual Gun Detection, and Gunshot Detection.
Built for harsh outdoor deployment, the Bosch IQsight NBE-7704-ALX includes IP66 / IP67 / IP6K9K ingress protection, NEMA Type 4X protection, IK10 impact resistance, aluminum housing with dehumidifying membrane, electronic image stabilization, dual microSD recording, audio I/O, alarm I/O, punch-down and shielded RJ45 Ethernet, USB-C wireless commissioning, TPM cybersecurity, signed firmware, secure boot, software sealing, ONVIF Profile S/G/T/M, PoE or auxiliary power, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 7100i IR 8MP HDR X outdoor bullet camera
• Model: NBE-7704-ALX
• 8MP / 4K UHD resolution, 3840 x 2160
• Larger 1/1.2" CMOS sensor
• Starlight X low-light technology
• HDR X with up to 128dB dynamic range
• 5.9-13mm motorized P-iris lens
• 110° to 48° horizontal field of view
• 850nm smart IR up to 60m / 197ft
• Optional 940nm invisible IR up to 45m / 148ft
• Optional white light illumination module
• IVA Pro Buildings and IVA Pro Perimeter included
• Advanced deep-learning analytics and automatic calibration
• Electronic image stabilization
• H.265 / H.264 / M-JPEG compression
• Dual microSD card slots up to 2TB
• Audio line input/output
• Two alarm inputs and one alarm output
• Punch-down and shielded RJ45 Ethernet
• Secure Element / TPM cybersecurity
• ONVIF Profile S, G, T, and M compliant
• IP66 / IP67 / IP6K9K, NEMA Type 4X, IK10
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 8MP / 4K UHD
• Effective Pixels: 3840 x 2160
• Sensor Type: 1/1.2" CMOS
• Pixel Size: 2.9μm
• Low-Light Technology: Starlight X
• Frame Rate: 1fps to 30fps
• HDR: HDR X, 128dB
• Color Sensitivity: 0.011 lux
• Monochrome Sensitivity: 0.002 lux, 0 lux with IR
Lens:
• Lens Type: Motorized P-iris varifocal
• Focal Length: 5.9mm to 13mm
• Aperture: F1.6 to F2.9
• IR Corrected: Yes
• Zoom / Focus Control: Motorized
• Horizontal Field of View: 110° to 48°
• Vertical Field of View: 59° to 27°
Night Vision:
• IR Function: On / Off / Auto / Intelligent IR
• Default Illumination: 850nm
• Optional Illumination: 940nm invisible IR or white light
• 850nm IR Distance: 60m / 197ft
• Optional 940nm IR Distance: 45m / 148ft
• Illumination Intensity: Manual / Intelligent
DORI Coverage:
NBE-7704-ALX / 5.9-13mm:
• Detection: 53m to 172m
• Observation: 21m to 68m
• Recognition: 10m to 34m
• Identification: 5m to 17m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Sensor Modes: 25fps HDR, 30fps HDR, 3840 x 2160
• Resolution Options: 4K UHD, 6MP, 4.1MP, 1080p, 720p, SD, 512 x 288
• Camera Latency: <120ms at 30fps
• WDR Modes: HDR X, HDR X Motion Optimized, HDR X Optimized DR, HDR X Extreme DR
• Image Stabilization: Electronic
• Privacy Masks: 8
• Scene Modes: Standard, sodium lighting, vibrant, sports & gaming, retail, fast movement, sensitivity boost, color only, LPR, backlight
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• Person and Vehicle Detection
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Crowd Density Estimation
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Perimeter Tracking 2D / 3D
• People Tracking 3D
• Traffic Tracking 3D
• Ship Tracking
• Museum Mode
• Automatic Calibration
• 16 Simultaneous Alarm Rules
• Tamper Detection
Storage:
• Dual microSDHC / microSDXC card slots
• Up to 2TB local storage
• 5-second pre-alarm recording
• Mirror, failover, extend, and Automatic Network Replenishment modes
• Industrial SD card health monitoring support
Audio / I/O:
• Audio Line In: 10kΩ typical, max 1Vrms
• Audio Line Out: 1.5kΩ typical, 1Vrms
• Audio Streaming: Full duplex / half duplex
• Alarm Inputs: 2
• Alarm Output: 1
• Power Output: 12VDC, max 50mA
• Ethernet: Shielded RJ45 and punch-down connector
• USB: USB 2.0 Type-C for wireless setup dongle
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot, software sealing
• IEC 62443 Industrial Cyber Security Capability
• UL CAP Cybersecurity Assurance Program
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC–26VDC ±10%
• PoE Power Consumption: 7W typical / 12.95W maximum
• VAC Power Consumption: 7.10W typical / 13W maximum
• VDC Power Consumption: 7.50W typical / 16W maximum
Environmental & Mechanical:
• Housing: Aluminum with dehumidifying membrane and waterproof connection area
• Dimensions: 148mm x 115mm
• Weight: 2.95kg / 6.50lb
• Color: RAL 9003 Signal White
• Mounting Type: Surface-mounted
• Operating Temperature:
- -40°C to +60°C with PoE
- -50°C to +60°C with 12VDC / 24VAC
• Storage Temperature: -40°C to +70°C
• IP Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Impact Rating: IK10
Model:
• NBE-7704-ALX – 8MP / 4K HDR X DINION 7100i IR Bullet Camera, 5.9-13mm Lens, Starlight X, IP67, IK10
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CBB – Conduit Back Box, 148mm
• NCA-WLAN-EU – Wireless Installation Dongle, EU
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• NPD-3001-WAP – Portable Installation Tool
• NBA-7070-LI – 940nm Invisible IR Module, Wide
• NBA-7070-LW – White Light Illuminator Kit, Wide
• NCA-U-PIG / NCA-U-PIGS / NCA-U-PIGL – Push-In Grommet Options
• NBA-7070-PA0 / PA1 / PA2 – Surveillance Cabinet Options
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
