Description

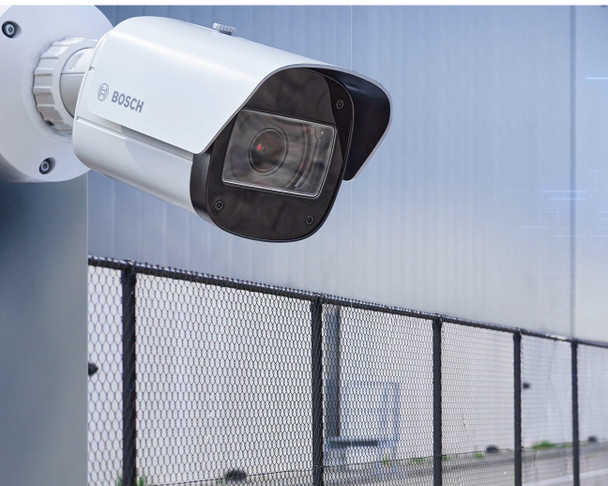

The Bosch IQsight DINION 7100i IR 2MP HDR X bullet camera series is built for demanding outdoor surveillance applications where extreme low-light performance, advanced HDR, long-range IR illumination, rugged construction, and reliable video analytics are required. This consolidated 2MP series includes NBE-7702-ALX and NBE-7702-ALXT, giving users a choice between a wide-angle 4.7-10mm lens model and a long-range 10.5-47mm telephoto model.
The NBE-7702-ALX uses a 4.7-10mm motorized P-iris lens with a 103° to 49° horizontal field of view, making it ideal for wide outdoor coverage, entrances, building approaches, perimeters, industrial yards, transportation areas, and critical infrastructure sites. The NBE-7702-ALXT uses a 10.5-47mm motorized P-iris telephoto lens with a 41.6° to 9.3° horizontal field of view for longer-distance monitoring of gates, lanes, perimeter lines, roads, restricted areas, and targeted security zones.
Both Bosch IQsight DINION 7100i IR 2MP models use Starlight X technology for exceptional low-light performance and HDR X for improved detail in bright and dark areas without the motion blur and artifacts common to traditional multi-exposure HDR. With 1920 x 1080 resolution, up to 60fps performance, and 144dB HDR, the NBE-7702-ALX and NBE-7702-ALXT are strong choices where smooth motion, nighttime visibility, and reliable image detail matter more than maximum pixel count.
The integrated smart IR system uses exchangeable illumination modules with 850nm IR standard, optional 940nm invisible IR, and optional white light modules. The NBE-7702-ALX wide model supports up to 80m / 262ft 850nm IR, while the NBE-7702-ALXT tele model supports up to 140m / 459ft 850nm IR. Optional 940nm invisible IR supports up to 60m / 197ft on wide variants and up to 100m / 328ft on tele variants.
IVA Pro Buildings and IVA Pro Perimeter are pre-installed, supporting deep-learning-based person and vehicle detection, object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, crowd density estimation, similarity search, and advanced perimeter tracking. Optional analytics licenses support IVA Pro Traffic, Appearance, PPE, License Plate, Vehicle Make Model, Dangerous Good Signs, Visual Gun Detection, and Gunshot Detection.
Built for mission-critical outdoor applications, the NBE-7702-ALX and NBE-7702-ALXT include IP66 / IP67 / IP6K9K ingress protection, NEMA Type 4X protection, IK10 impact resistance, corrosion-resistant aluminum construction, electronic image stabilization, dual microSD recording, punch-down or RJ45 network connection, audio I/O, alarm I/O, Secure Element / TPM cybersecurity, signed firmware, secure boot, software sealing, PoE or auxiliary power, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 7100i IR 2MP HDR X outdoor bullet camera series
• Models: NBE-7702-ALX and NBE-7702-ALXT
• 2MP Full HD resolution, 1920 x 1080
• Starlight X low-light performance
• HDR X with up to 144dB dynamic range
• Up to 60fps performance
• NBE-7702-ALX with 4.7-10mm wide lens
• NBE-7702-ALXT with 10.5-47mm telephoto lens
• 850nm smart IR standard
• Up to 80m IR on NBE-7702-ALX
• Up to 140m IR on NBE-7702-ALXT
• Optional 940nm invisible IR modules
• Optional white light modules
• IVA Pro Buildings and IVA Pro Perimeter included
• Optional IVA Pro Traffic, Appearance, PPE, LPR, MMR, DGS, VGD, and gunshot detection
• Electronic image stabilization
• H.265 / H.264 / M-JPEG compression
• Four configurable streams
• Dual microSD card slots up to 2TB
• Mirror, failover, extend, and Automatic Network Replenishment storage modes
• Audio line input/output
• Two alarm inputs and one alarm output
• Shielded RJ45 and punch-down network connection
• USB-C wireless commissioning support
• Secure Element / TPM cybersecurity
• ONVIF Profile S, G, T, and M compliant
• IP66 / IP67 / IP6K9K, NEMA Type 4X, IK10
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/1.8" CMOS
• Pixel Size: 2.9μm
• Low-Light Technology: Starlight X
• Frame Rate: 1fps to 60fps
• HDR: HDR X, up to 144dB
• Color Sensitivity: 0.0061 lux
• Monochrome Sensitivity:
- NBE-7702-ALX: 0.0010 lux, 0 lux with IR
- NBE-7702-ALXT: 0.0011 lux, 0 lux with IR
Lens Options:
• NBE-7702-ALX: 4.7-10mm motorized P-iris lens
• NBE-7702-ALX Horizontal FOV: 103° to 49°
• NBE-7702-ALX Vertical FOV: 53° to 27°
• NBE-7702-ALXT: 10.5-47mm motorized P-iris lens
• NBE-7702-ALXT Horizontal FOV: 41.6° to 9.3°
• NBE-7702-ALXT Vertical FOV: 23.9° to 5.3°
• IR Corrected: Yes
Night Vision:
• IR Function: On / Off / Auto / Intelligent IR
• Default Illumination: 850nm
• Optional Illumination: 940nm invisible IR or white light
• 850nm IR Distance, NBE-7702-ALX: 80m / 262ft
• 850nm IR Distance, NBE-7702-ALXT: 140m / 459ft
• Optional 940nm IR Distance, NBE-7702-ALX: 60m / 197ft
• Optional 940nm IR Distance, NBE-7702-ALXT: 100m / 328ft
• Illumination Intensity: Manual / Intelligent
DORI Coverage:
NBE-7702-ALX / 4.7-10mm:
• Detection: 31m to 84m
• Observation: 12m to 33m
• Recognition: 6m to 17m
• Identification: 3m to 8m
NBE-7702-ALXT / 10.5-47mm:
• Detection: 100m to 488m
• Observation: 40m to 194m
• Recognition: 20m to 98m
• Identification: 10m to 49m
Video:
• Compression: H.265 / H.264 / M-JPEG
• Sensor Modes: 25fps HDR X, 30fps HDR X, 50fps, 60fps
• Resolution Options: 1920 x 1080, 1536 x 864, 1280 x 1024, 1280 x 720, 768 x 432, 720 x 480, 640 x 480
• Camera Latency: <67ms at 60fps
• GOP Structure: IP, IBP, IBBP
• Signal-to-Noise Ratio: >55dB
• WDR Modes: HDR X, HDR X Motion Optimized, HDR X Optimized DR, HDR X Extreme DR
• Image Stabilization: Electronic
• Privacy Masks: 8
• Scene Modes: Standard, sodium lighting, vibrant, sports & gaming, retail, fast movement, sensitivity boost, color only, LPR, backlight
Analytics:
• IVA Pro Buildings
• IVA Pro Perimeter
• Person and Vehicle Detection
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Idle / Removed Object
• Counting
• Occupancy
• Crowd Density Estimation
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Perimeter Tracking 2D / 3D
• People Tracking 3D
• Traffic Tracking 3D
• Ship Tracking
• Museum Mode
• Automatic Calibration
• 16 Simultaneous Alarm Rules
• Tamper Detection
Storage:
• Dual microSDHC / microSDXC card slots
• Up to 2TB local storage
• 5-second pre-alarm recording
• Mirror, failover, extend, and Automatic Network Replenishment modes
• Industrial SD card health monitoring support
Audio / I/O:
• Audio Line In: 10kΩ typical, max 1Vrms
• Audio Line Out: 1.5kΩ typical, 1Vrms
• Audio Streaming: Full duplex / half duplex
• Alarm Inputs: 2
• Alarm Output: 1
• Power Output: 12VDC, max 50mA
• Ethernet: Shielded RJ45 and punch-down connector
• USB: USB 2.0 Type-C for wireless setup dongle
Network & Security:
• Ethernet: 10/100BASE-T
• ONVIF Profile S, G, T, M
• Platform: CPP14
• TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2 / TLS 1.3, AES 128/256
• Local Storage Encryption: XTS-AES
• Firmware Protection: Signed firmware, secure boot, software sealing
• IEC 62443 Industrial Cyber Security Capability
• UL CAP Cybersecurity Assurance Program
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC–26VDC ±10%
• PoE Power Consumption: 7W typical / 12.95W maximum
• VAC Power Consumption: 7.10W typical / 13W maximum
• VDC Power Consumption: 7.50W typical / 16W maximum
Environmental & Mechanical:
• Housing: Aluminum with dehumidifying membrane and waterproof connection area
• Dimensions: 148mm x 115mm
• Weight: 2.95kg / 6.50lb
• Color: RAL 9003 Signal White
• Mounting Type: Surface-mounted
• Operating Temperature:
- -40°C to +60°C with PoE
- -50°C to +60°C with 12VDC / 24VAC
• Storage Temperature: -40°C to +70°C
• IP Rating: IP66 / IP67 / IP6K9K
• Degree of Protection: NEMA Type 4X
• Impact Rating: IK10
Model Variants:
• NBE-7702-ALX – 2MP HDR X DINION 7100i IR Bullet Camera, 4.7-10mm Lens, Wide IR
• NBE-7702-ALXT – 2MP HDR X DINION 7100i IR Bullet Camera, 10.5-47mm Lens, Tele IR
Lens Selection Guide:
• Choose NBE-7702-ALX for wide 2MP Starlight X coverage
• Choose NBE-7702-ALXT for long-range 2MP Starlight X telephoto monitoring
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NDA-U-CBB – Conduit Back Box, 148mm
• NCA-WLAN-EU – Wireless Installation Dongle, EU
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• NPD-3001-WAP – Portable Installation Tool
• NBA-7070-LI – 940nm Invisible IR Module, Wide
• NBA-7070-LIT – 940nm Invisible IR Module, Tele
• NBA-7070-LW – White Light Illuminator Kit, Wide
• NBA-7070-LWT – White Light Illuminator Kit, Tele
• NBA-7070-PFT – Polarizing Filter Kit, Tele
• NBA-7070-PA0 / PA1 / PA2 – Surveillance Cabinet Options
• MSD-064G / MSD-128G / MSD-256G – Industrial microSD Cards
Optional Software & Licensing:
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-DGS – IVA Pro Dangerous Good Signs
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
• MVC-IVA-VGD – IVA Pro Visual Gun Detection
• MVC-IAA-GUN – Gunshot Detector License
Default selection is NBE-7702-ALX. Specify NBE-7702-ALXT for long-range telephoto coverage.
