Description
The Bosch IQsight DINION 5100i IR NBE-5702-AL is a professional 2MP outdoor bullet IP camera designed for demanding surveillance applications that require strong low-light performance, intelligent analytics, integrated infrared illumination, rugged construction, and flexible installation. Built with Bosch Starlight camera technology, 144dB Wide Dynamic Range, a 3.2-10.5mm motorized P-iris lens, IVA Pro Buildings analytics, IVA Pro Privacy, H.265 compression, audio and alarm I/O, edge recording, and built-in 850nm intelligent IR up to 60m / 197ft, the NBE-5702-AL is well suited for commercial, institutional, perimeter, parking, transportation, education, warehouse, and general outdoor security applications.
The NBE-5702-AL captures 1920 x 1080 Full HD video at up to 60fps, making it a strong choice where smooth motion capture is important. The motorized 3.2-10.5mm lens provides a flexible 105° to 31° horizontal field of view, allowing installers to cover wide exterior scenes or focus more tightly on entrances, gates, loading docks, walkways, drive lanes, and perimeter areas. Automatic Varifocal zoom/focus support helps simplify setup by allowing lens adjustment without opening the camera.
Bosch Starlight technology helps deliver usable video in low-light conditions, while 144dB WDR improves visibility in scenes with bright sunlight, shadows, headlights, reflections, and backlit entrances. The built-in intelligent IR system provides 850nm infrared illumination up to 60m / 197ft with automatic or manual intensity control, helping the camera operate effectively in dark outdoor scenes.
The Bosch IQsight DINION 5100i IR NBE-5702-AL includes IVA Pro Buildings and IVA Pro Privacy, providing deep-learning-based person and vehicle detection with alarm rules for object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional analytics licenses support IVA Pro Perimeter, Traffic, Appearance, PPE, License Plate, Vehicle Make Model, Dangerous Good Signs, and Visual Gun Detection.
Built for outdoor deployment, the NBE-5702-AL features an aluminum housing, sunshield, IP66/IP67 weather protection, NEMA Type 4X protection, IK10 impact resistance, -40°C to +55°C continuous operating temperature, audio line input/output, alarm input/output, USB-C wireless commissioning support, local microSD recording up to 2TB, ONVIF Profile S/G/T/M interoperability, Secure Element / TPM cybersecurity, signed firmware, secure boot, TLS encryption, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 5100i IR outdoor bullet IP camera
• Model: NBE-5702-AL
• 2MP Full HD resolution, 1920 x 1080
• Up to 60fps video performance
• 3.2-10.5mm motorized P-iris lens
• Bosch Starlight low-light camera technology
• 144dB Wide Dynamic Range / HDR
• Built-in intelligent 850nm IR illumination
• IR distance up to 60m / 197ft
• IVA Pro Buildings and IVA Pro Privacy included
• Deep-learning-based person and vehicle detection
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Four independent encoder streams
• Electronic Image Stabilization, gyro-based
• Two-way audio support
• Audio line input/output
• Alarm input/output
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure Element / TPM cybersecurity
• Signed firmware and secure boot
• ONVIF Profile S, G, T, and M compliant
• IP66 / IP67 weather protection
• NEMA Type 4X protection
• IK10 impact resistance
• PoE, 12VDC, and 24VAC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 2MP Full HD
• Effective Pixels: 1920 x 1080
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 60fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.021 lux
• Monochrome Sensitivity: 0.004 lux
• Minimum Illumination with IR: 0 lux
• Wide Dynamic Range: 144dB
• Measured Dynamic Range: 105dB
Lens:
• Lens Type: Motorized P-iris varifocal
• Focal Length: 3.2mm to 10.5mm
• F-Stop: F1.6
• IR Corrected: Yes
• Zoom / Focus Control: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
Night Vision:
• IR Function: On / Off / Auto / Intelligent
• Built-In IR Distance: 60m / 197ft
• IR Wavelength: 850nm
• IR Intensity: Manually adjustable / automatic
DORI Coverage:
2MP / 3.2-10.5mm Lens:
• Detection: 31m to 138m / 102ft to 453ft
• Observation: 12m to 55m / 39ft to 180ft
• Recognition: 6m to 28m / 20ft to 92ft
• Identification: 3m to 14m / 10ft to 46ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Encoder Streams: Four independent streams
• Bosch Intelligent Streaming: Supported
• Camera Processing Latency: <70ms at 1080p60
• GOP Structure: IP / IBP / IBBP
• Signal-to-Noise Ratio: >55dB
• Video Resolution: 1080p HD 1920 x 1080, upright mode 1080 x 1920, 720p, SD, and selectable lower resolutions
• Privacy Masks: 8
• Scene Modes: Multiple default modes
• Camera Functions: Mirror image, rotation 90° / 180° / 270°, flip image, upright mode, BLC, sharpness enhancement, intelligent defog, pixel counter, saturation, brightness, video watermarking, display stamping, location, gyro-based EIS
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Object Classes
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Object Filters: Duration, size, direction, color, object class
• Optional Object Classes with IVA Pro: Bicycle, motorcycle, truck, bus
• Optional Licensed Analytics: IVA Pro Perimeter, IVA Pro Traffic, IVA Pro Appearance, IVA Pro PPE, IVA Pro Visual Gun Detection, IVA Pro License Plate, IVA Pro Vehicle Make Model, IVA Pro Dangerous Good Signs
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDHC / microSDXC
• Local Storage Capacity: 32GB microSDHC / up to 2TB microSDXC
• Industrial SD Card Health Monitoring: Supported when available
• Recording Modes: Continuous ring, scheduled, alarm, event
Audio & I/O:
• Audio Line Input: 0.6Vrms max, 40kΩ typical
• Audio Line Output: 1.0Vrms at 10kΩ typical
• Audio Input: Line-in / mic-level input
• Audio Output: Line-out
• Audio Streaming: Full duplex / half duplex
• Audio Compression: G.711, L16, AAC-LC
• Alarm Input: 1
• Alarm Output: 1
• Alarm Output: 40VDC, max 1A
• Ethernet: Shielded RJ45
• USB: USB 2.0 Type-C for wireless setup dongle
Network & Security:
• Ethernet: 10/100BASE-T, auto-sensing, full / half duplex
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Crypto Coprocessor / TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: AES-XTS
• Video Authentication: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot
• Bosch Remote Portal: Supported
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC ±10%
• PoE Power Consumption: 6.79W typical / 10.73W maximum
• VDC Power Consumption: 6.63W typical / 11.1W maximum
• VAC Power Consumption: 6.32W typical / 10.47W maximum
Environmental & Mechanical:
• Camera Type: Outdoor bullet IP camera

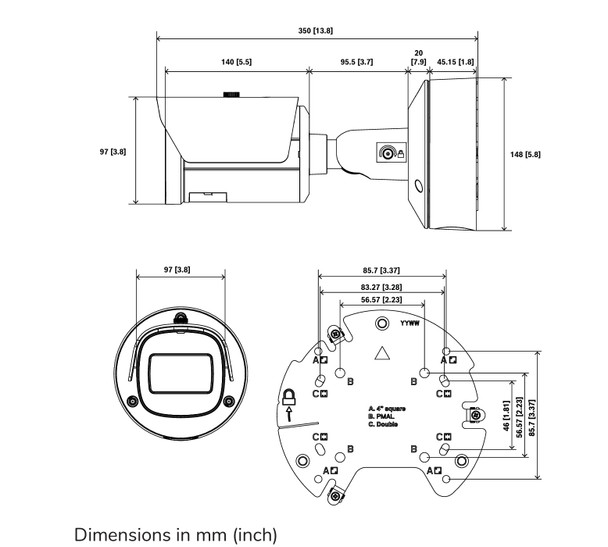

• Dimensions: 148mm x 97mm
• Weight: 2.50kg / 5.51lb
• Housing Material: Aluminum
• Sunshield / SD Cover: Plastic
• Color: Signal White, RAL 9003
• Conduit: 3/4-inch NPT (M25) and 1/2-inch NPT (M20) side entry
• Operating Temperature: -40°C to +55°C continuous operation
• High Temperature Operation: Up to 74°C per NEMA TS2-2003 test profile
• Cold Start Temperature: -20°C
• Storage Temperature: -30°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK10
• Weather Rating: IP66 / IP67
• Degree of Protection: NEMA Type 4X
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NBE-5702-AL – 2MP DINION 5100i IR Bullet Camera, 3.2-10.5mm Lens, 60m IR, IP66/IP67, IK10, NDAA compliant
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NBA-7070-PA0 – Direct-Mount Surveillance Cabinet, 24VAC
• NBA-7070-PA1 – Direct-Mount Surveillance Cabinet, 120VAC
• NBA-7070-PA2 – Direct-Mount Surveillance Cabinet, 230VAC
• NDA-U-CBB – Conduit Back Box, 148mm
• NCA-WLAN-EU – Wireless Installation Dongle, EU
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
