Description

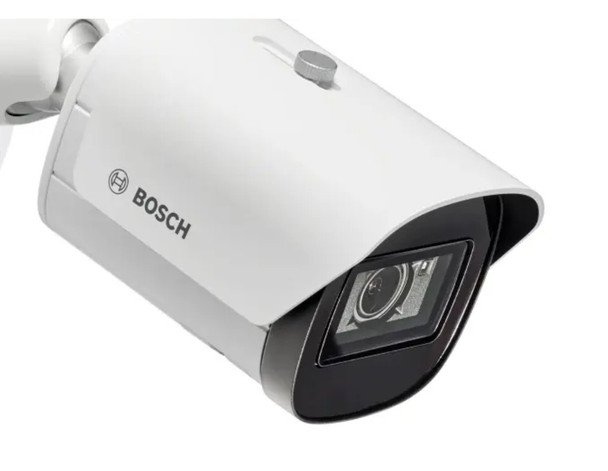

The Bosch IQsight DINION 5100i IR NBE-5704-AL is a professional 8MP / 4K outdoor bullet IP camera designed for high-detail exterior surveillance where image clarity, night vision, intelligent analytics, and rugged environmental protection are critical. The NBE-5704-AL combines 4K UHD video, Bosch Starlight camera technology, a 3.2-10.5mm motorized P-iris lens, 120dB Wide Dynamic Range, IVA Pro Buildings, IVA Pro Privacy, H.265 compression, audio and alarm I/O, edge recording, and integrated 850nm intelligent IR up to 45m / 148ft.
With 3864 x 2192 effective pixels and 4K UHD output up to 3840 x 2160, the NBE-5704-AL provides the highest image detail in the DINION 5100i IR bullet series. It is ideal for commercial facilities, parking areas, campuses, transportation sites, warehouses, retail exteriors, entrances, loading areas, perimeter lines, and high-value outdoor locations where 4K forensic detail and integrated IR coverage are required.
The 3.2-10.5mm motorized P-iris lens provides a 105° to 31° horizontal field of view, allowing installers to cover wide scenes or tighten the view for more focused monitoring. Bosch Starlight technology improves low-light image usability, while 120dB WDR helps preserve detail in high-contrast scenes with glare, sunlight, headlights, reflections, shadows, and backlighting.
Unlike the 2MP and 5MP versions, the 8MP NBE-5704-AL provides up to 45m / 148ft of integrated 850nm IR illumination. The intelligent IR system supports On, Off, Auto, and Intelligent modes with automatic or manual intensity adjustment to help balance nighttime scenes and reduce overexposure.
The Bosch IQsight DINION 5100i IR NBE-5704-AL includes IVA Pro Buildings and IVA Pro Privacy with deep-learning-based person and vehicle detection. It supports object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional licenses support IVA Pro Perimeter, Traffic, Appearance, PPE, License Plate, Vehicle Make Model, Dangerous Good Signs, and Visual Gun Detection.
The NBE-5704-AL also supports H.265/H.264/M-JPEG compression, Bosch Intelligent Streaming, four independent encoder streams, local microSD recording up to 2TB, audio line input/output, alarm input/output, USB-C wireless commissioning, ONVIF Profile S/G/T/M, Secure Element / TPM cybersecurity, signed firmware, secure boot, TLS encryption, 12VDC / 24VAC / PoE power, IP66/IP67 weather protection, NEMA Type 4X protection, IK10 impact resistance, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 5100i IR outdoor bullet IP camera
• Model: NBE-5704-AL
• 8MP / 4K UHD resolution
• 3864 x 2192 effective pixels
• 4K UHD output up to 3840 x 2160
• 3.2-10.5mm motorized P-iris lens
• Bosch Starlight low-light camera technology
• High Dynamic Range up to 120dB
• Built-in intelligent 850nm IR illumination
• IR distance up to 45m / 148ft
• IVA Pro Buildings and IVA Pro Privacy included
• Deep-learning-based person and vehicle detection
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Four independent encoder streams
• Electronic Image Stabilization, gyro-based
• Two-way audio support
• Audio line input/output
• Alarm input/output
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure Element / TPM cybersecurity
• Signed firmware and secure boot
• ONVIF Profile S, G, T, and M compliant
• IP66 / IP67 weather protection
• NEMA Type 4X protection
• IK10 impact resistance
• PoE, 12VDC, and 24VAC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 8MP / 4K UHD
• Effective Pixels: 3864 x 2192
• Sensor Type: 1/2.8" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.046 lux
• Monochrome Sensitivity: 0.015 lux
• Minimum Illumination with IR: 0 lux
• Wide Dynamic Range: 120dB
• Measured Dynamic Range: 103dB
Lens:
• Lens Type: Motorized P-iris varifocal
• Focal Length: 3.2mm to 10.5mm
• F-Stop: F1.6
• IR Corrected: Yes
• Zoom / Focus Control: Motorized
• Horizontal Field of View: 105° to 31°
• Vertical Field of View: 57° to 18°
Night Vision:
• IR Function: On / Off / Auto / Intelligent
• Built-In IR Distance: 45m / 148ft
• IR Wavelength: 850nm
• IR Intensity: Manually adjustable / automatic
DORI Coverage:
8MP / 3.2-10.5mm Lens:
• Detection: 62m to 275m / 203ft to 902ft
• Observation: 25m to 109m / 82ft to 358ft
• Recognition: 12m to 55m / 39ft to 180ft
• Identification: 6m to 28m / 20ft to 92ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Encoder Streams: Four independent streams
• Bosch Intelligent Streaming: Supported
• Camera Processing Latency: <120ms at 8MP30
• GOP Structure: IP / IBP / IBBP
• Signal-to-Noise Ratio: >55dB
• Video Resolution: 4K UHD 3840 x 2160, upright 4K UHD, 6MP, 4MP, 1080p, 720p, SD, and selectable lower resolutions
• Privacy Masks: 8
• Scene Modes: Multiple default modes
• Camera Functions: Mirror image, rotation 90° / 180° / 270°, flip image, upright mode, BLC, sharpness enhancement, intelligent defog, pixel counter, saturation, brightness, video watermarking, display stamping, location, gyro-based EIS
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Object Classes
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Object Filters: Duration, size, direction, color, object class
• Optional Object Classes with IVA Pro: Bicycle, motorcycle, truck, bus
• Optional Licensed Analytics: IVA Pro Perimeter, IVA Pro Traffic, IVA Pro Appearance, IVA Pro PPE, IVA Pro Visual Gun Detection, IVA Pro License Plate, IVA Pro Vehicle Make Model, IVA Pro Dangerous Good Signs
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDHC / microSDXC
• Local Storage Capacity: 32GB microSDHC / up to 2TB microSDXC
• Industrial SD Card Health Monitoring: Supported when available
• Recording Modes: Continuous ring, scheduled, alarm, event
Audio & I/O:
• Audio Line Input: 0.6Vrms max, 40kΩ typical
• Audio Line Output: 1.0Vrms at 10kΩ typical
• Audio Input: Line-in / mic-level input
• Audio Output: Line-out
• Audio Streaming: Full duplex / half duplex
• Audio Compression: G.711, L16, AAC-LC
• Alarm Input: 1
• Alarm Output: 1
• Alarm Output: 40VDC, max 1A
• Ethernet: Shielded RJ45
• USB: USB 2.0 Type-C for wireless setup dongle
Network & Security:
• Ethernet: 10/100BASE-T, auto-sensing, full / half duplex
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Crypto Coprocessor / TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: AES-XTS
• Video Authentication: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot
• Bosch Remote Portal: Supported
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC ±10%
• PoE Power Consumption: 6.62W typical / 10.59W maximum
• VDC Power Consumption: 6.16W typical / 10.23W maximum
• VAC Power Consumption: 6.31W typical / 10.76W maximum
Environmental & Mechanical:
• Camera Type: Outdoor bullet IP camera
• Dimensions: 148mm x 97mm
• Weight: 2.50kg / 5.51lb
• Housing Material: Aluminum
• Sunshield / SD Cover: Plastic
• Color: Signal White, RAL 9003
• Conduit: 3/4-inch NPT (M25) and 1/2-inch NPT (M20) side entry
• Operating Temperature: -40°C to +55°C continuous operation
• High Temperature Operation: Up to 74°C per NEMA TS2-2003 test profile
• Cold Start Temperature: -20°C
• Storage Temperature: -30°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK10
• Weather Rating: IP66 / IP67
• Degree of Protection: NEMA Type 4X
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NBE-5704-AL – 8MP / 4K DINION 5100i IR Bullet Camera, 3.2-10.5mm Lens, 45m IR, IP66/IP67, IK10, NDAA compliant
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NBA-7070-PA0 – Direct-Mount Surveillance Cabinet, 24VAC
• NBA-7070-PA1 – Direct-Mount Surveillance Cabinet, 120VAC
• NBA-7070-PA2 – Direct-Mount Surveillance Cabinet, 230VAC
• NDA-U-CBB – Conduit Back Box, 148mm
• NCA-WLAN-EU – Wireless Installation Dongle, EU
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
