Description

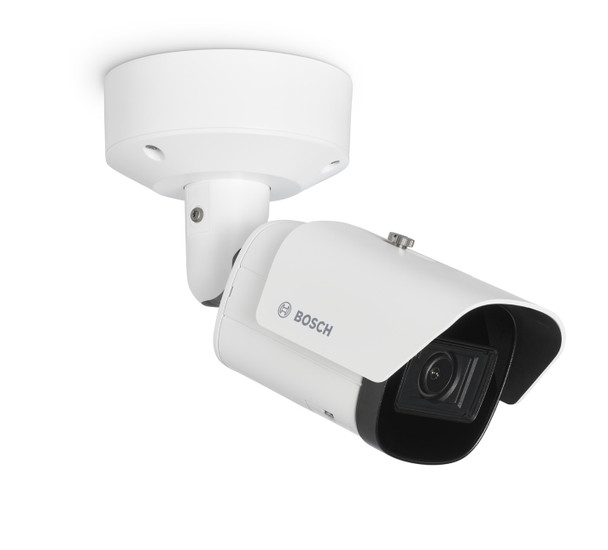

The Bosch IQsight DINION 5100i IR NBE-5703-AL is a professional 5MP outdoor bullet IP camera designed for high-detail exterior surveillance with integrated infrared illumination, Starlight low-light performance, intelligent analytics, and rugged all-weather protection. The NBE-5703-AL combines a 5MP CMOS sensor, 3.2-10.5mm motorized P-iris lens, 120dB Wide Dynamic Range, IVA Pro Buildings, IVA Pro Privacy, H.265 compression, audio and alarm I/O, USB-C wireless commissioning, local edge recording, and 850nm intelligent IR illumination up to 60m / 197ft.
With 2688 x 1944 effective pixels and up to 30fps performance, the NBE-5703-AL provides more image detail than 2MP models while maintaining the same DINION 5100i IR bullet platform. The 3.2-10.5mm lens provides a 96° to 29° horizontal field of view, making this camera well suited for entrances, perimeters, schools, parking areas, commercial properties, warehouses, drive lanes, exterior corridors, and outdoor areas requiring both wide coverage and tighter scene monitoring.
Bosch Starlight technology helps preserve usable images in low-light scenes, while 120dB WDR improves detail in high-contrast outdoor conditions with bright sunlight, glare, reflections, headlights, and shadowed areas. The integrated intelligent IR system reaches up to 60m / 197ft and supports automatic or manual intensity adjustment to help reduce overexposure of nearby objects.
The Bosch IQsight DINION 5100i IR NBE-5703-AL includes IVA Pro Buildings and IVA Pro Privacy for deep-learning-based detection and classification of people and vehicles. The camera supports object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. Optional licenses extend analytics to perimeter, traffic, appearance search, PPE, license plate, vehicle make/model, dangerous goods signs, and visual gun detection.
The NBE-5703-AL supports H.265/H.264/M-JPEG video, Bosch Intelligent Streaming, four independent encoder streams, ONVIF Profile S/G/T/M, local microSD storage up to 2TB, Secure Element / TPM cybersecurity, signed firmware, secure boot, TLS encryption, Bosch Remote Portal, 12VDC / 24VAC / PoE power, IP66/IP67 weather protection, NEMA Type 4X protection, IK10 impact resistance, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 5100i IR outdoor bullet IP camera
• Model: NBE-5703-AL
• 5MP resolution, 2688 x 1944 effective pixels
• 3.2-10.5mm motorized P-iris lens
• Bosch Starlight low-light camera technology
• High Dynamic Range up to 120dB
• Built-in intelligent 850nm IR illumination
• IR distance up to 60m / 197ft
• IVA Pro Buildings and IVA Pro Privacy included
• Deep-learning-based person and vehicle detection
• Optional IVA Pro analytics licenses supported
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Four independent encoder streams
• Electronic Image Stabilization, gyro-based
• Two-way audio support
• Audio line input/output
• Alarm input/output
• USB-C wireless commissioning support
• Edge recording to microSD up to 2TB
• Secure Element / TPM cybersecurity
• Signed firmware and secure boot
• ONVIF Profile S, G, T, and M compliant
• IP66 / IP67 weather protection
• NEMA Type 4X protection
• IK10 impact resistance
• PoE, 12VDC, and 24VAC power support
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 5MP
• Effective Pixels: 2688 x 1944
• Sensor Type: 1/2.7" CMOS
• Frame Rate: 1fps to 30fps
• Low-Light Technology: Starlight
• Color Sensitivity: 0.044 lux
• Monochrome Sensitivity: 0.01 lux
• Minimum Illumination with IR: 0 lux
• Wide Dynamic Range: 120dB
• Measured Dynamic Range: 105dB
Lens:
• Lens Type: Motorized P-iris varifocal
• Focal Length: 3.2mm to 10.5mm
• F-Stop: F1.6
• IR Corrected: Yes
• Zoom / Focus Control: Motorized
• Horizontal Field of View: 96° to 29°
• Vertical Field of View: 71° to 22°
Night Vision:
• IR Function: On / Off / Auto / Intelligent
• Built-In IR Distance: 60m / 197ft
• IR Wavelength: 850nm
• IR Intensity: Manually adjustable / automatic
DORI Coverage:
5MP / 3.2-10.5mm Lens:
• Detection: 48m to 200m / 147ft to 656ft
• Observation: 19m to 79m / 62ft to 259ft
• Recognition: 10m to 40m / 33ft to 131ft
• Identification: 5m to 20m / 16ft to 66ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Encoder Streams: Four independent streams
• Bosch Intelligent Streaming: Supported
• Camera Processing Latency: <120ms at 5MP30
• GOP Structure: IP / IBP / IBBP
• Signal-to-Noise Ratio: >55dB
• Video Resolution: 5MP 2592 x 1944, 4MP, 2.8MP, 3.8MP 16:9, 1080p, 720p, upright modes, and selectable lower resolutions
• Privacy Masks: 8
• Scene Modes: Multiple default modes
• Camera Functions: Mirror image, rotation 90° / 180° / 270°, flip image, upright mode, BLC, sharpness enhancement, intelligent defog, pixel counter, saturation, brightness, video watermarking, display stamping, location, gyro-based EIS
Analytics:
• IVA Pro Buildings
• IVA Pro Privacy
• Person and Vehicle Object Classes
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Object Filters: Duration, size, direction, color, object class
• Optional Object Classes with IVA Pro: Bicycle, motorcycle, truck, bus
• Optional Licensed Analytics: IVA Pro Perimeter, IVA Pro Traffic, IVA Pro Appearance, IVA Pro PPE, IVA Pro Visual Gun Detection, IVA Pro License Plate, IVA Pro Vehicle Make Model, IVA Pro Dangerous Good Signs
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDHC / microSDXC
• Local Storage Capacity: 32GB microSDHC / up to 2TB microSDXC
• Industrial SD Card Health Monitoring: Supported when available
• Recording Modes: Continuous ring, scheduled, alarm, event
Audio & I/O:
• Audio Line Input: 0.6Vrms max, 40kΩ typical
• Audio Line Output: 1.0Vrms at 10kΩ typical
• Audio Input: Line-in / mic-level input
• Audio Output: Line-out
• Audio Streaming: Full duplex / half duplex
• Audio Compression: G.711, L16, AAC-LC
• Alarm Input: 1
• Alarm Output: 1
• Alarm Output: 40VDC, max 1A
• Ethernet: Shielded RJ45
• USB: USB 2.0 Type-C for wireless setup dongle
Network & Security:
• Ethernet: 10/100BASE-T, auto-sensing, full / half duplex
• ONVIF Profiles: S, G, T, M
• Platform: CPP14
• Crypto Coprocessor / TPM: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: AES-XTS
• Video Authentication: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot
• Bosch Remote Portal: Supported
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Auxiliary Power: 24VAC ±10% or 12VDC ±10%
• PoE Power Consumption: 6.5W typical / 10.57W maximum
• VDC Power Consumption: 6.58W typical / 10.9W maximum
• VAC Power Consumption: 6.42W typical / 10.86W maximum
Environmental & Mechanical:
• Camera Type: Outdoor bullet IP camera
• Dimensions: 148mm x 97mm
• Weight: 2.50kg / 5.51lb
• Housing Material: Aluminum
• Sunshield / SD Cover: Plastic
• Color: Signal White, RAL 9003
• Conduit: 3/4-inch NPT (M25) and 1/2-inch NPT (M20) side entry
• Operating Temperature: -40°C to +55°C continuous operation
• High Temperature Operation: Up to 74°C per NEMA TS2-2003 test profile
• Cold Start Temperature: -20°C
• Storage Temperature: -30°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK10
• Weather Rating: IP66 / IP67
• Degree of Protection: NEMA Type 4X
• Sustainability: PVC-free
• Country of Origin: Thailand
Model:
• NBE-5703-AL – 5MP DINION 5100i IR Bullet Camera, 3.2-10.5mm Lens, 60m IR, IP66/IP67, IK10, NDAA compliant
Compatible Accessories:
• NDA-U-PMAL – Pole Mount Adapter, Large
• NBA-7070-PA0 – Direct-Mount Surveillance Cabinet, 24VAC
• NBA-7070-PA1 – Direct-Mount Surveillance Cabinet, 120VAC
• NBA-7070-PA2 – Direct-Mount Surveillance Cabinet, 230VAC
• NDA-U-CBB – Conduit Back Box, 148mm
• NCA-WLAN-EU – Wireless Installation Dongle, EU
• NCA-WLAN-NA – Wireless Installation Dongle, North America
• MSD-064G – 64GB Industrial microSD Card
• MSD-128G – 128GB Industrial microSD Card
• MSD-256G – 256GB Industrial microSD Card
Optional Software & Licensing:
• MVC-IVA-PER – IVA Pro Perimeter
• MVC-IVA-TRA – IVA Pro Traffic
• MVC-IVA-PPE – IVA Pro PPE
• MVC-IVA-APC – IVA Pro Appearance
• MVC-IVA-LPR – IVA Pro License Plate
• MVC-IVA-MMR – IVA Pro Vehicle Make Model
• MVC-IVA-LPRX – IVA Pro License Plate + Make Model
