Description

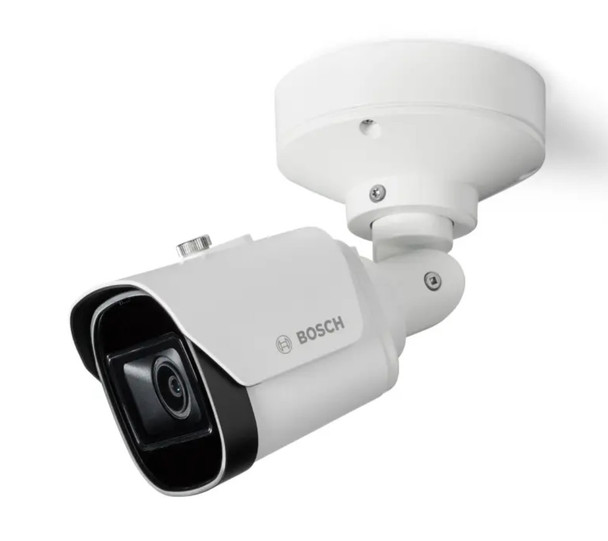

The Bosch IQsight DINION 3100i IR NBE-3703-AL is a 5MP outdoor bullet IP camera designed for professional surveillance applications that need higher image detail, integrated IR night vision, intelligent analytics, and rugged outdoor construction. Built with a 1/2.7" CMOS sensor, 3.3-10.2mm motorized varifocal lens, 120dB High Dynamic Range, IVA Pro Buildings analytics, H.265 compression, Secure Element / TPM cybersecurity, IP66 weather protection, and IK10 impact resistance, the NBE-3703-AL is a strong choice for commercial, retail, school, warehouse, parking, perimeter, and general outdoor security systems.
The NBE-3703-AL captures up to 2592 x 1944 video at 30fps, providing more image detail than the 2MP NBE-3702-AL model while keeping the same compact DINION 3100i IR bullet design. The 3.3-10.2mm motorized lens provides a flexible 101° to 30° horizontal field of view, allowing the camera to cover wide exterior scenes or focus more tightly on entrances, doors, gates, loading areas, sidewalks, drive lanes, and key outdoor areas.
Integrated 850nm infrared illumination provides up to 30m / 98ft of night vision, and the camera supports 0 lux operation with IR. Adjustable IR intensity allows installers to tune the infrared output for the scene, helping improve nighttime image balance.
Bosch IQsight IVA Pro Buildings comes pre-installed and provides deep-learning-based detection and tracking of persons and vehicles. The NBE-3703-AL supports object in field, line crossing, enter / leave field, loitering, follow route, counting, occupancy, condition change, similarity search, and objects stopping or starting to move. These analytics help reduce nuisance alerts and support efficient forensic search through recorded video.
The Bosch IQsight DINION 3100i IR NBE-3703-AL supports H.265, H.264, and M-JPEG compression with Bosch Intelligent Streaming, reducing bitrate while preserving useful image detail. The camera includes local microSD edge recording up to 2TB, Secure Element with TPM functionality, PKI certificate support, TLS encryption, signed firmware, secure boot, ONVIF Profile S/G/T/M interoperability, Bosch Remote Portal support, and NDAA compliance.
Key Features:
• Bosch IQsight DINION 3100i IR outdoor bullet IP camera
• Model: NBE-3703-AL
• 5MP resolution, 2592 x 1944
• 3.3-10.2mm motorized varifocal lens
• 101° to 30° horizontal field of view
• High Dynamic Range up to 120dB
• Built-in 850nm IR illumination
• IR distance up to 30m / 98ft
• 0 lux operation with IR
• IVA Pro Buildings analytics included
• Deep-learning-based person and vehicle detection
• H.265 / H.264 / M-JPEG compression
• Bosch Intelligent Streaming
• Edge recording to microSD up to 2TB
• Secure Element with TPM functionality
• Signed firmware and secure boot
• ONVIF Profile S, G, T, and M compliant
• IP66 weather protection
• IK10 impact resistance
• Shielded RJ45 Ethernet connection
• PoE Class 3 power
• NDAA compliant
Technical Specifications Summary:
Camera:
• Resolution: 5MP
• Effective Pixels: 2592 x 1944
• Sensor Type: 1/2.7" CMOS
• Frame Rate: 1fps to 30fps
• Color Sensitivity: 0.14 lux
• Monochrome Sensitivity: 0.03 lux
• Minimum Illumination with IR: 0 lux
• High Dynamic Range: 120dB HDR
Lens:
• Lens Type: Motorized varifocal
• Focal Length: 3.3mm to 10.2mm
• Aperture: F1.6
• Iris Control: DC-iris
• IR Corrected: Yes
• Zoom / Focus Control: Motorized
• Day / Night: Switchable IR cut-filter
• Horizontal Field of View: 101° to 30°
• Vertical Field of View: 70° to 22°
Night Vision:
• IR Function: On / Off / Auto
• Built-In IR Distance: 30m / 98ft
• IR Wavelength: 850nm
• IR Intensity: Manually adjustable
DORI Coverage:
5MP / 3.3-10.2mm Lens:
• Detection: 42m to 193m / 139ft to 633ft
• Observation: 17m to 77m / 55ft to 251ft
• Recognition: 9m to 39m / 28ft to 127ft
• Identification: 4m to 19m / 14ft to 63ft
Video:
• Compression: H.265 / H.264 / M-JPEG
• Streaming: Multiple configurable streams
• Bosch Intelligent Streaming: Supported
• Camera Processing Latency: <120ms
• GOP Structure: IP
• Signal-to-Noise Ratio: >55dB
• Video Resolutions:
- 5MP 4:3: 2592 x 1944 down to 320 x 240
- 3.8MP 16:9: 2592 x 1456 down to 512 x 288
- HD 1080p 16:9: 1920 x 1080 down to 512 x 288
• Privacy Masks: 8
• Camera Functions: Mirror image, rotation 90°, rotation 180°, backlight compensation, sharpness enhancement, intelligent defog, pixel counter, saturation, brightness, video watermarking, display stamping, location
• White Balance Range: 2000K to 10000K
• Shutter: Automatic Electronic Shutter, 1/15000 max, 1/25 [30] min
Analytics:
• IVA Pro Buildings
• Person and Vehicle Object Classes
• Object in Field
• Line Crossing
• Enter / Leave Field
• Loitering
• Follow Route
• Counting
• Occupancy
• Condition Change
• Similarity Search
• Objects Stopping or Starting to Move
• Object Filters: Duration, size, aspect ratio, direction, color
• Tracking Mode: Base tracking 2D
• Tamper Detection
• Up to 16 Simultaneous Alarm Rules
Storage:
• Internal Storage: 5-second pre-alarm recording
• Memory Card Slot: microSDHC / microSDXC / microSD
• Local Storage: Up to 2TB
• Industrial SD Card Health Monitoring: Supported
• Recording Modes: Continuous ring, scheduled, alarm, event
Network & Security:
• Ethernet: 10/100BASE-T
• Connector: Shielded RJ45
• ONVIF Profiles: S, G, T, M
• Platform: CPP14.3
• Secure Element: RSA 4096-bit, AES/CBC 256-bit
• Encryption: TLS 1.2, TLS 1.3, AES 128, AES 256
• Local Storage Encryption: XTS-AES
• Video Authentication: MD5, SHA-1, SHA-256, Checksum
• Firmware Protection: Signed firmware, secure boot
• Bosch Remote Portal: Supported
Power:
• PoE: IEEE 802.3af / 802.3at Type 1, Class 3
• Power Consumption: 2.6W typical / 7.72W maximum
Environmental & Mechanical:
• Camera Type: Outdoor bullet IP camera

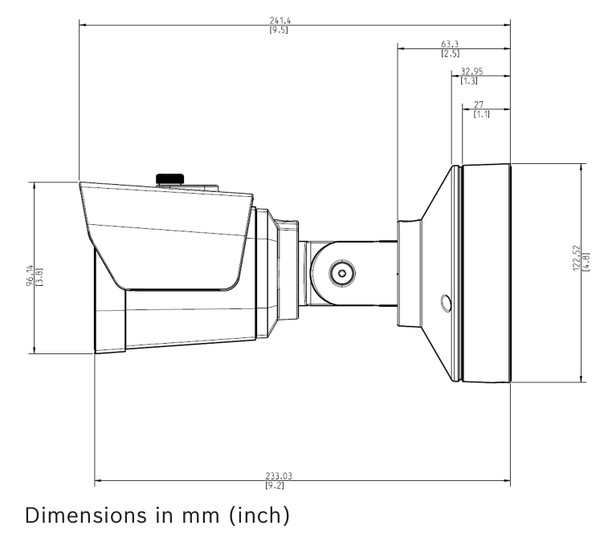

• Dimensions: 123mm x 97mm
• Weight: 3.08lb
• Housing Material: Plastic / metal
• Hinge Material: Metal
• Color: Signal White, RAL 9003
• Operating Temperature: -30°C to +50°C continuous operation
• Maximum Dry Heat Temperature: +60°C with IR on
• Cold Start Temperature: -20°C
• Storage Temperature: -50°C to +70°C
• Operating Humidity: 5% to 93% non-condensing / 5% to 100% condensing
• Impact Protection: IK10
• IP Rating: IP66
• Sustainability: PVC free
• Country of Origin: Thailand
Model:
• NBE-3703-AL – 5MP DINION 3100i IR Bullet Camera, 3.3-10.2mm Lens, IP66, IK10, NDAA compliant
Compatible Accessories:
• NDA-U-CBBS – Conduit Back Box for DINION 3100i IR and FLEXIDOME micro 3100i outdoor
