Bosch DVR-5000-08A DIVAR AN 5000 8ch 960H 240fps

  • Bosch DVR-5000-08A DIVAR AN 5000 8 channel 960H

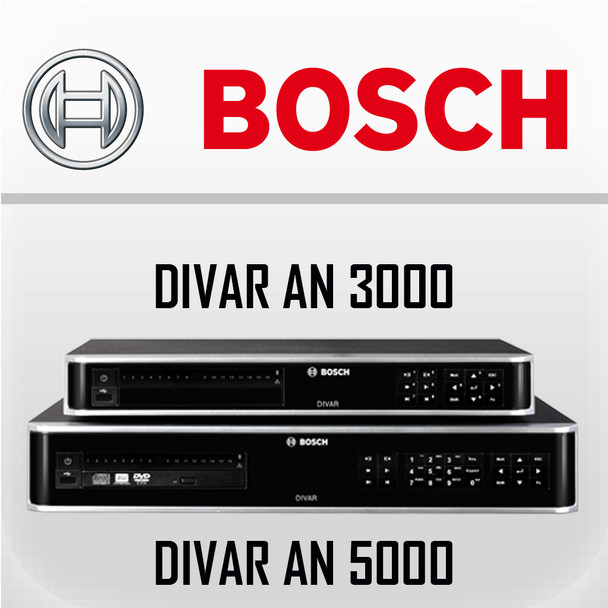

  • Bosch DIVAR AN 5000 and DIVAR AN 3000 960H DVRs
  • Bosch DIVAR AN 5000 Remote DVR Client Software Live View
  • Bosch DIVAR AN 5000 Remote DVR Client Software Playback
  • Bosch DIVAR AN 5000 iPhone, iPad and Android Mobile Viewing
  • Bosch DIVAR AN 5000 IR Remote Control

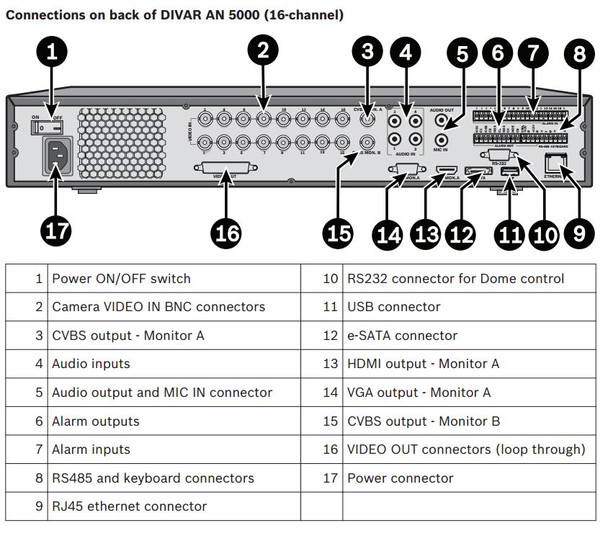

  • Bosch DIVAR AN 5000 DVR rear panel diagram
No Longer Available - Contact Us

Product Description

Bosch DIVAR AN 5000 8ch DVR-5000-08A is a cutting-edge Digital Video Recorder introducing new high resolution standards for CCTV surveillance systems. This fully loaded DVR system is a real-time unit offering all the latest professional attributes and user friendly controls for all styles of management. The Local Control to Remote Monitoring needs deliver intuitive design which enables a wide range of active and re-active security system capabilities. This Bosch DIVAR AN 5000 likewise offers numerous hardware interface advantages and among other features, easily positions itself as a class leading Linux based Digital Video Recorder.

Bosch DIVAR AN 5000 DVR-5000-08A Main Features:

  • 8 Channel 960H Real-time DVR
  • 960H (960 x 480) High Resolution is 35% better than D1/4CIF
  • H.264 Compression with configurable 30fps per channel, total of 240fps
  • 1080P HD Display via HDMI and VGA output plus Spot Monitor output
  • Mobile support for Tablets and Smart Phones (iOS, Android)
  • Web Browser and DVR Client Software Remote Viewing
  • On-Board Support for 4 SATA HDDs or 2 SATA HDD and 1 DVD-RW
  • eSATA Connection and Looping BNC video output
  • 4 audio inputs, 1 audio output - 1 Microphone input for talk input/output
  • 10/100/1000Base-T Ethernet RJ-45 port
  • RS-485/RS-232 Multi-Protocol PTZ control
  • Front Panel Control, IR Remote and USB Mouse / Keyboard support
  • Special Covert (Hidden) Channel
  • Alarm I/O 16 Sensor inputs and 5 Relay Outputs
  • Alarm/Error Notifications - FTP, EMAIL, On-Screen, Audible, Warning Light
  • Dimensions: 17.3 x 16.5 x 2.8 inches
  • Weight: 12 lbs approx. without HDDs or DVD


Bosch DIVAR AN 5000 High Performance:
Bosch DVR-5000-08A 8 channel DVR yields the new higher resolution 960H (960 x 480 pixel) video recording standard that produces over thirty-five percent better clarity than prior 4CIF/D1 CCTV security camera systems. This unit provides Real-time 240fps video recording in full 960H as well as real-time display. Included of course is the leading H.264 video compression and per channel configuration at up to 30fps with multiple recording modes to choose from. Bosch DIVAR AN 5000 delivers simultaneous multi-function operation for local and network task enabling diverse security system needs. The unit is likewise equipped with adequate storage abilities including large on-board storage to external storage support via eSATA and USB ports.

Comprehensive Video Management Software:
On-site the Bosch AN 5000 assures all potential local monitoring needs, including dual 1080P HD monitor connections (VGA/HDMI) to Spot monitor BNC output for concurrent display needs. Locally the DVR software is of user-friendly design with a simple navigation for settings, live viewing, search, playback and video export task. There are various physical controls like full featured DVR front panel, the included IR Remote or USB mouse to Keyboard support for flexible system use. Remotely users as well as administrators benefit from complete control including easy configuration, live viewing, search, and playback as well as export options. Added benefits at no other cost range from Bosch Archive player to Free Android, iPhone and iPad applications.

Total integration and easy installation:
Bosch DIVAR AN 5000 8 channel Digital Video Recorders gold nothing back when it comes to on-board security system perks. This standard sized unit offers exceptionally large local storage capacity considering four SATA hard drives bays that can also be field adjusted to support one DVD-RW and two SATA drives. Expanding from their eSATA and USB external hard drive support lead to long-term video storage abilities and additional video back-up options. Alarm I/O Terminals, Two Way Audio and RS-485/RS-232 PTZ Camera Controls all combine with an intelligent Linux embedded surveillance software for vast system possibilities. Best suited for 700TVL and above CCTV security cameras, these new units offer a whole new level of video quality compared to previous models.

DIVAR AN 5000 Models:
960H/RT digital recorder 8 channels; base unit No HDD or DVD

960H/RT digital recorder 8 channels; DVD No HDD

960H/RT digital recorder 8 channels; 1 TB HDD

960H/RT digital recorder 8 channels; 2 TB HDD

960H/RT digital recorder 8 channels; DVD; 1 TB HDD

960H/RT digital recorder 8 channels; DVD; 2 TB HDD

Optional Accessories:

DVR-XS050-A Storage expansion kit. 500 GB

DVR-XS100-A Storage expansion kit. 1 TB

DVR-XS200-A Storage expansion kit. 2 TB

DVR-XS300-A Storage expansion kit. 3 TB

DVR-XS400-A Storage expansion kit. 4 TB

DVR-XS-DVD DVD Writer Expansion kit
