Bosch DVR-630-08A/DVR-650-08A 8ch DVR Digital Video Recorder

Write a Review
SKU:
DVR-630-08A
  • Bosch DVR-630-08A/DVR-650-08A Linux 8ch DVR System
  • Bosch DVR-630-08A/DVR-650-08A Advantage Line DVRs

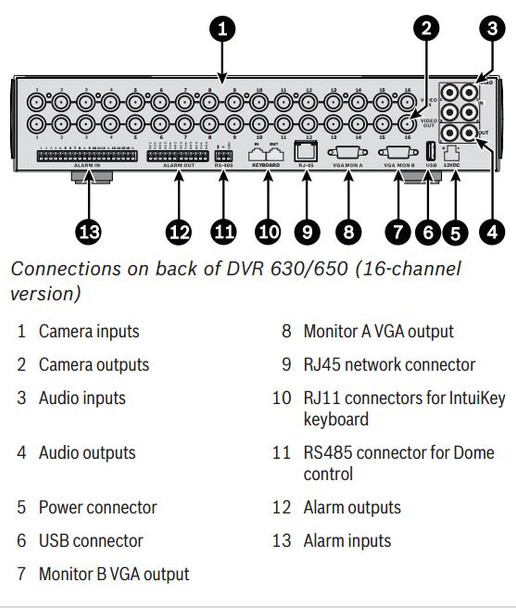

  • Bosch DVR-630-08A/DVR-650-08A rear panel diagram
  • Bosch DVR-630-08A/DVR-650-08A web client software
  • Bosch DVR-630-08A/DVR-650-08A remote playback
Contact us on 855 376 6699

Description

Bosch DVR-630-08A and DVR-650-08A series 8ch Real-time Linux Embedded DVR systems provide reliable and professional CCTV video surveillance. The Bosch DVR-630-08A/DVR-650-08A Advantage line DVRs (Digital video Recorders) include advanced H.264 encoding, feature rich functionality and flexible monitoring options for a complete CCTV solution. The Bosch DVR-630-08A is provided without a DVD burner while the DVR-650-08A model has an integrated DVD writer. Both units offer multiple storage options as well as support for third party hard drives. The Bosch DVR-650 and DVR-630 series provide up to 240fps real-time recording or up to full 4CIF High Resolution recording with lower frame rates. The unit also provides superior complete remote viewing and management with Bosch Control Center PC Software and is also an excellent solution for multiple Bosch DVRs. The DVR further provides Mobile viewing with IPhone, IPad, and IPod for maximum versatility.
The DVR-630-08A/DVR-650-08A Bosch 8 channel Digital Video Recorder is a complete CCTV Video Surveillance solution including diverse local monitoring advantages. The DVR unit includes dual selectable monitor outputs one of which is an HDMI HD Video output for High Definition 1080P viewing. The Digital Video Recorder further offers easy operation of the GUI and multiple control methods are available including IntuiKey Digital Keyboard, Mouse, remote Control or the Full function front panel. The Digital Video Recorder from Bosch provide many other key attributes such as looping BNC ports, RS-485 PTZ Control, RS-232 interface, Digital I/O and Two Way Audio. The Bosch Stand-alone DVR series DVR-630-08A and DVR-650-08A are an ideal choice for advanced video security systems of all types.

Bosch DVR-630-08A/DVR-650-08A Main Features:

  • 8-Channel real-time recording with CIF resolution (4CIF with Lower FPS)
  • Flexible viewing with two monitor outputs Including HDMI HD Monitor Support
  • Powerful H.264 Video Compression
  • Remote viewing, playback, control, and configuration
  • Two Way Audio with inputs and outputs
  • Digital I/O, Looping BNC, RS-232C and USB
  • Supports Intuikey Digital Keyboard, Mouse, Remote and Front Panel Control
  • DVR viewer Apple App supports IPhone, IPad, and IPod
  • Easy Pan/Tilt/Zoom camera control RS-485 Interface
  • DVD Writer option DVR-650 / NO DVD Write Option DVR-630
  • Supports Third Party Hard Drives! (Enterprise Only Recommended)


Bosch DVR-630-08A/DVR-650-08A Specifications:

Electrical
Rated Voltage and Power AC input 110–240 VAC; 50/60 Hz; 1.8 A
External power adapter External power adapter DC output 12 VDC; 5 A
DVR Power input 12 VDC; 3.5 A; 145 BTU/h
Video Inputs
Inputs Composite video 1 Vpp, 75 ohm, automatic termination; PAL / NTSC auto-detect
AGC Automatic gain adjustment for each video input
Video outputs
Outputs Monitor A: VGA RGB
Monitor B: VGA RGB
Live Resolution (Mon.A)
800x600 (4:3), 1024x768 (4:3)
1280x1024 (5:4)
1366x768 (16:9)
1440x900 (16:10)
Digital Zoom 2 times
Streaming video H.264 compression Audio
Inputs Mono RCA, 1.0 Vpp
Output Mono RCA, 1.0 Vpp
Compression ADPCM
Sample rate 16 kHz per channel
Bit rate 8-bit
Alarm Handling
Inputs 8 inputs configurable NO/NC, max. input voltage 15 VDC
Outputs 4 Relay outputs, configurable NO/NC, max. rated 30 VAC, 40 VDC 0.5 A continuous or 10 VA
Control
RS485 Output signals according to RS485, max. signal voltage -8 to +12 V
RS485 Support Bosch domes, and Pelco P and D
Connectors
Video Inputs 8 looping BNC, auto termination
Monitor 2 VGA D-SUB
Alarm connectors Screw terminal inputs, cable diameter AWG26-16 (0.13-1.5 mm)
Audio Inputs 4 RCA (CINCH)
Audio Output 2 RCA (CINCH)
Ethernet RJ45, 10/100 BaseT according to IEEE802.3
RS485 Screw terminal output, cable diameter AWG28-16 (0.08-1.5 mm)
USB 2.0 One front and one rear USB connector for mouse or
USB memory device
Storage
Hard Disks Supports up to 2 SATA hard drives maximum 2TB each
(Third party hard disks are supported from firmware version 2.0.6 onwards. A list of tested disks is available in the instruction manual.)*Bosch cannot be held liable for any loss or damages or system malfunction resulting from the use of non-Bosch drives in DVR recorders.
Video recording
Record Rate (IPS)
NTSC Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
PAL Max. 25 IPS per channel, configurable: 25, 12.5, 6.25, 5, 2.5, 1
Recording Quality Best, High, Normal, Low, Lowest
Average Recording Capacity (16 channels, 500 GB)
CIF, Normal, 25/30 IPS PAL: 138 hours, NTSC: 170 hours
CIF, Normal, 6.25/7.5 IPS PAL: 350 hours, NTSC: 425 hours
2CIF, Normal, 12.5/15 IPS PAL: 115 hours, NTSC: 144 hours
4CIF, Normal, 6.25/7.5 IPS PAL: 93 hours, NTSC: 115 hours
Maximum recording rates per channel
Local 8 channels
4CIF PAL: 12.5 IPS, NTSC: 15 IPS
2CIF PAL: 25 IPS, NTSC: 30 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Local 4 channels
4CIF PAL: 25 IPS, NTSC: 30 IPS
2CIF PAL: 25 IPS, NTSC: 30 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Remote (network) 8 channels
CIF PAL: 12.5 IPS, NTSC: 15 IPS
Display Modes
Monitor A Full, quad, multi-screen (live and playback), full sequence, alarm call-up (live)
Monitor B Full, quad, multi-screen, full sequence, alarm call-up
(live)
Recording Modes
Normal partition Continuous recording (with or without overwriting)
Event partition Input and motion recording (with or without overwriting)
Mechanical
Dimensions (WxDxH) 355 x 362 x 78 mm (13.9 x 14.2 x 3.1 in)
excluding cabling
Weight 4.3 kg (9.46 lbs.) approx.
Environmental Temperature
- Operating +0°C to +40°C (+32°F to +104°F)
- Storage -40°C to +70°C (-40°F to +158°F)
Humidity
- Operating <93% non-condensing
- Storage <95% non-condensing
Certifications and approvals
Region Certification
Europe CE
USA FCC
UL
Canada CSA
Standards
FCC Part 15, Class B
EMC Directive 2004/108/EC
Immunity: EN50130-4
Emission: EN55022 Class B
Harmonics: EN61000-3-2
Voltage fluctuations: EN61000-3-3
UL60950-1
LV Directive 2006/95/EC, EN60950-1
CAN/CSA—C22.2 no. 60950-1
C-Tick


Ordering information
DVR-630-08A 630 Series DVR, 8ch, base unit
DVR-630-08A

DVR-630-08A050 630 Series DVR, 8ch, 500GB
DVR-630-08A050

DVR-630-08A100 630 Series DVR, 8ch, 1TB
DVR-630-08A100

DVR-630-08A200 630 Series DVR, 8ch, 2TB
DVR-630-08A200

DVR-650-08A 650 Series DVR, 8ch, DVD, base unit
DVR-650-08A

DVR-650-08A050 650 Series DVR, 8ch,DVD, 500GB
DVR-650-08A050

DVR-650-08A100 650 Series DVR, 8ch, DVD, 1TB
DVR-650-08A100

DVR-650-08A200 650 Series DVR, 8ch, DVD, 2TB
DVR-650-08A200

Accessories
KBD-Digital Keyboard KBD-DIGITAL
DVR-XS050-A Storage Expansion Kit DVR-XS050-A
DVR-XS100-A Storage Expansion Kit DVR-XS100-A
DVR-XS200-A Storage Expansion Kit DVR-XS200-A
