Bosch DVR-5000-04A DIVAR AN 5000 4ch 960H 120fps

  • Bosch DVR-5000-04A DIVAR AN 5000 4 channel 960H 120fps
  • Bosch DIVAR AN 5000 and DIVAR AN 3000 960H DVRs

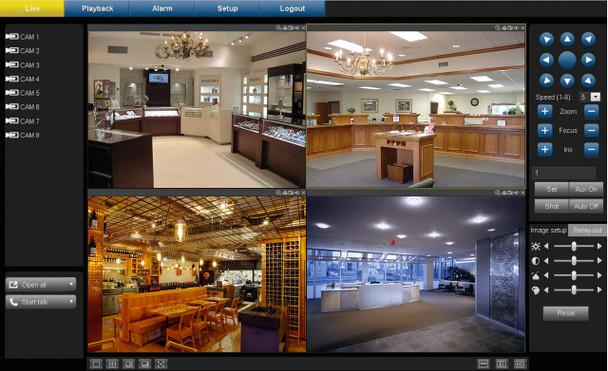

  • Bosch DVR DIVAR AN 5000 Client Software Live View
  • Bosch DVR DIVAR AN 5000 Client Software Playback
  • Bosch DVR DIVAR AN 5000 Mobile Applications iPhone, iPad, Android
  • Bosch DVR DIVAR AN 5000 IR Remote Controller
  • Bosch DVR DIVAR AN 5000 rear panel example
No Longer Available - Contact Us

Product Description

Bosch DIVAR AN 5000 4ch DVR-5000-04A is a full feature, high resolution 4 channel Digital Video Recorder for pro CCTV surveillance systems. These latest Bosch DIVAR units include real-time video recording in the superior 960H video format. Equipped for complex security system designs the DVRs provide a wide assortment of hardware plus software advantages yet still ensure user-friendly operation. Comprehensive CCTV video system management is realized with well-developed local to remote viewing applications. Bosch DIVAR AN 5000 4ch DVR delivers top quality, leading performance and absolute convenience for all your security needs.

Bosch DIVAR AN 5000 DVR-5000-04A Main Features:

  • 4 Channel 960H Real-time DVR
  • 960H (960 x 480) High Resolution is 35% better than D1/4CIF
  • H.264 Compression with configurable 30fps per channel, total of 120fps
  • 1080P HD Display via HDMI and VGA output plus Spot Monitor output
  • Mobile support for Tablets and Smart Phones (iOS, Android)
  • Web Browser and DVR Client Software Remote Viewing
  • On-Board Support for 4 SATA HDDs or 2 SATA HDD and 1 DVD-RW
  • eSATA Connection and Looping BNC video output
  • 4 audio inputs, 1 audio output - 1 Microphone input for talk input/output
  • 10/100/1000Base-T Ethernet RJ-45 port
  • RS-485/RS-232 Multi-Protocol PTZ control
  • Front Panel Control, IR Remote and USB Mouse / Keyboard support
  • Special Covert (Hidden) Channel
  • Alarm I/O 16 Sensor inputs and 5 Relay Outputs
  • Alarm/Error Notifications - FTP, EMAIL, On-Screen, Audible, Warning Light
  • Dimensions: 17.3 x 16.5 x 2.8 inches
  • Weight: 12 lbs approx. without HDDs or DVD


Bosch DIVAR AN 5000 is a High Performer:
Delivering the cutting-edge 960H (960 x 480 pixels) premium high resolution users benefit with more than thirty five percent more detailed video that previous D1/4CIF security systems. The units provide Real-time 120fps video recording and viewing with the ability to record in full 960H at 30fps per channel. The Bosch DIVAR AN 5000 is packed with powerful surveillance aspects in all regards, the units include the latest H.264 compression for reduced video storage size and bandwidth requirements as just one example. Likewise the units offer multi-function capabilities such as simultaneous viewing, recording, export and remote viewing. Even more advantages are found within the DIVAR AN 5000 4ch Digital Video Recorder, including high resolution local display output to effective H.264 video compression and G.711A Audio Compression standards.

Total Video Security Management:
The Bosch DVR-5000-04A DIVAR 4 channel DVRs are a fully outfitted, professional CCTV surveillance recorder. More than that, they deliver true quality and innovative design from software or hardware perspectives. The units include HDMI, VGA, and Spot Monitor plus Looping BNC outputs for fully flexible video surveillance needs. Added to this is the complete set of potential local operation methods such as support for USB mouse, keyboard, IR remote control or even simply the DVR's front panel controls. Easy to setup and just as easy to use, administrators and users will appreciate a cleanly developed surveillance application making action for all task conveniently simple. Despite its user friendliness, the latest DIVAR AN 5000 makes available all popular forms of remote viewing including Web Browser, Remote DVR Client Software to Mobile viewing via iPhone, iPad or Android devices.

Pro-Grade Integration and Installation Support:
The Bosch DIVAR AN 5000 4ch DIVAR is a professional choice for high-grade CCTV video security systems. The units exceed any previous DIVAR series Digital Video Recorder with resolution alone, however there are countless other unique advantages. The full spectrum of device integration is provided from Alarm I/O terminal to Two Way Audio and RS-485/RS-232 support for PTZ Cameras. The units enable high capacity on-board video storage including options for DVD-RW in place of two of the four SATA drive bays. The unit even offers eSATA to USB external storage support as well as export functions. Install is also easy with simple, yet in-depth local and remote interface promise complete command of the recorders settings from anywhere.

DIVAR AN 5000 models:

960H/RT digital recorder 4 channels; base unit No HDD or DVD

960H/RT digital recorder 4 channels; DVD No HDD

960H/RT digital recorder 4 channels; 1 TB HDD

960H/RT digital recorder 4 channels; 2 TB HDD

960H/RT digital recorder 4 channels; DVD; 1 TB HDD

960H/RT digital recorder 4 channels; DVD; 2 TB HDD

Optional Accessories:

DVR-XS050-A Storage expansion kit. 500 GB

DVR-XS100-A Storage expansion kit. 1 TB

DVR-XS200-A Storage expansion kit. 2 TB

DVR-XS300-A Storage expansion kit. 3 TB

DVR-XS400-A Storage expansion kit. 4 TB

DVR-XS-DVD DVD Writer Expansion kit
