Bosch DVR-480-08A 8ch DVR Digital Video Recorder

Write a Review
SKU:
DVR-480-08A000
  • Bosch DVR-480-08A 8 channel Linux DVR System
  • Bosch DVR-480-08A DVR is part of the Bosch Advantage Line
  • Bosch DVR-480-08A diagram

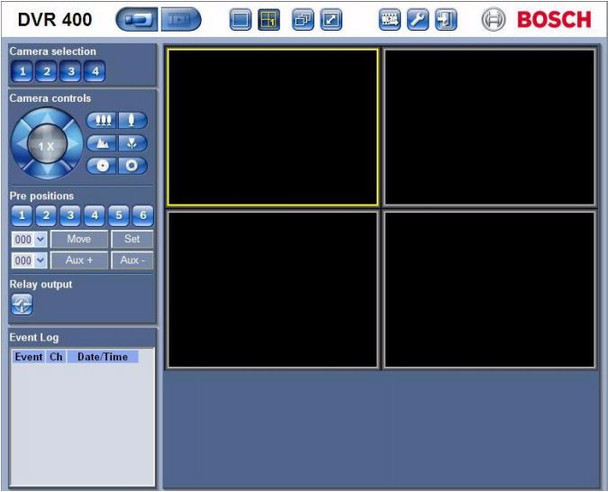

  • Bosch DVR-480-08A Web-client software
  • Bosch DVR-480-08A Web-client Playback
Contact Us

Description

Bosch 480 Series 8ch Digital Video Recorder is a small form factor Linux DVR system deliver superb video monitoring and recording at an economic cost. Designed for simple setup out of the box, the unit employs an intelligent GUI that enables auto-system setup for recording with a few basic entries like Time and Date. The Bosch DVR-480-08A 8 channel DVR also utilizes the advanced H.264 compression technology and is capable of Real-time frame rates in CIF resolution or full 4CIF high resolution at lower fps. The Bosch DVR 480 series is also perfect for remote management with Bosch Control Center PC software complete operations and configurations of the DVR remotely is achievable.  Built-in web server and Mobile viewing further enhance remote viewing options.
The Bosch DVR-480-08A 8 channel Digital Video Recorder is loaded with professional attributes including Dual Monitor output, RS-485 PTZ Security Camera control, Two Way Audio, Digital I/O and USB. The Bosch DVR-480-08A 8ch DVR System also supports up to 1TB Hard Drive Storage and can allow third party Hard Disk installation. The Bosch 8ch H.264 DVR 480 Series is an ideal choice for reliable and sophisticated CCTV Surveillance. Thanks to the easy to use the Bosch Control Center Software multiple security camera system sites can be controlled from a single pc.

Bosch DVR-480-08A Main Features:

  • 8-Channel real-time recording with CIF resolution (4CIF with Lower FPS)
  • Flexible viewing with two monitor outputs
  • Powerful H.264 Video Compression
  • Remote viewing, playback, control, and configuration
  • Two Way Audio with inputs and outputs
  • Digital I/O, Looping BNC, RS-232C and USB
  • Supports local Mouse, Remote and Front Panel Control
  • DVR viewer Apple App supports IPhone, IPad, and IPod
  • Easy Pan/Tilt/Zoom camera control RS-485 Interface
  • Supports Third Party Hard Drives! (Enterprise Only Recommended)


Bosch DVR-480-08A Specifications:


Electrical
Rated Voltage and Power
External power adapter
AC input
110–240 VAC; 50/60 Hz; 1.8 A
External power adapter DC output 12 VDC; 3 A
DVR Power input 12 VDC; 3 A
Video
Video Standard SVGA
PAL / NTSC auto-detect
Live Resolution SVGA: 800x600, 1024x768 or 1280x1024
PAL: 720x576, NTSC: 720x484
Digital Zoom 2 times
AGC Automatic gain adjustment for each video input
Compression H.264
Inputs Composite video 1 Vpp, 75 ohm, automatic termination
Outputs Monitor A: VGA RGB
Monitor B: 1 Vpp, 75 ohm, sync. 0.3 V ±10%
Audio
Input Mono RCA, 1.0 Vpp
Output Mono RCA, 1.0 Vpp
Compression ADPCM
Sample rate 16 kHz per channel
Bit rate 8-bit
Alarm Handling
Inputs 4/8 Inputs configurable NO/NC, max input voltage
15 VDC
Outputs 1 Relay output, configurable NO/NC, max. rated
30 VAC, 30 VDC 0.5 A continuous
Control
RS232 Output signals according to EIA/TIA-232-F, max. input voltage ±25 V
RS232 Support Bosch domes via RS232/Bi-phase converter
RS485 Output signals according to RS485, max. signal voltage -8 to +12 V
RS485 Support Bosch domes, and Pelco P and D
Connectors
Video Inputs 4/8 BNC
Monitor 1 VGA d-SUB, 1 BNC
Alarm connectors Screw terminal inputs, cable diameter AWG26-16
(0.13-1.5 mm)
Audio Inputs 1 RCA (CINCH)
Audio Output 1 RCA (CINCH)
Ethernet RJ45, 10/100 BaseT according to IEEE802.3
RS232 DB9 Male
RS485 Screw terminal output, cable diameter AWG28-16
(0.08-1.5 mm)
USB Type A Connector
USB 2.0 on front and rear for mouse or USB memory device
Storage
Hard Disk Supports 1 SATA hard drive up to 1TB.
(Third party hard disks are supported from firmware
version 2.0.6 onwards. A list of tested disks is available in the instruction manual.)*
*Bosch cannot be held liable for any loss or damages or system malfunction resulting from the use of non-Bosch drives in DVR recorders.
Video recording
Record Rate (IPS)
NTSC Max. 30 IPS per channel, configurable: 30, 15, 7.5, 5, 3, 1
PAL Max. 25 IPS per channel, configurable: 25, 12.5,6.25, 5, 2.5, 1
Recording Quality Best, High, Normal, Low, Lowest
Average Recording Capacity
CIF, Normal, 25/30 IPS PAL: 550 Hours, NTSC: 685 Hours
CIF, Normal,
6.25/7.5 IPS
PAL: 1400 Hours, NTSC: 1700 Hours
2CIF, Normal,
12.5/15 IPS
PAL: 460 Hours, NTSC: 575 Hours
4CIF, Normal,
6.25/7.5 IPS
PAL: 370 Hours, NTSC: 460 Hours
Maximum recording rates
Local Stream 8 channels
4CIF PAL: 6.25 IPS, NTSC: 7.5 IPS
2CIF PAL: 12.5 IPS, NTSC: 15 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Local Stream 4 channels
4CIF PAL: 12.5 IPS, NTSC: 15 IPS
2CIF PAL: 25 IPS, NTSC: 30 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Local Stream 2 channels
4CIF PAL: 25 IPS, NTSC: 30 IPS
2CIF PAL: 25 IPS, NTSC: 30 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Local Stream 1 channel
4CIF PAL: 25 IPS, NTSC: 30 IPS
2CIF PAL: 25 IPS, NTSC: 30 IPS
CIF PAL: 25 IPS, NTSC: 30 IPS
Remote (network) Stream 4 channels
CIF PAL: 12.5 IPS, NTSC: 15 IPS
Remote (network) Stream 2 channels
CIF PAL: 25 IPS, NTSC: 30 IPS
Display Modes
Monitor A Full, multiscreen, sequence (live and playback),
alarm call-up (live)
Monitor B Full, multiscreen, sequence, alarm call-up (live)
Recording Modes
Normal Continuous recording (with or without overwriting)
Event Input and motion recording (with or without overwriting)
Mechanical
Dimensions (WxDxH)
excluding cabling
225 x 325 x 60 mm
(8.86 x 12.8 x 2.4 in)
Weight (DVR440) 2.9 kg (6.39 lbs.) approx. (DVR440)
3 kg (6.61 lbs.) approx. (DVR480)
Environmental
Operating temperature +0°C to +40°C (+32°F to +104°F)
Storage temperature -40°C to +70°C (-40°F to +158°F)
Operating humidity <93% non-condensing
Storage humidity <95% non-condensing
Certifications and approvals
Region Certification
Europe CE
Standards
CC Part 15, Subpart B, Class B
EMC Directive 2004/108/EC
Immunity: EN50130-4
Emission: EN55022 Class B
Harmonics: EN61000-3-2

ORDERING INFO:
480 Series DVR, 8ch, base unit DVR-480-08A000
480 Series DVR, 8ch, 500 GB DVR-480-08A050
480 Series DVR, 8ch, 1 TB DVR-480-08A100


Accessories
DVR-XS050-A Storage Expansion Kit DVR-XS050-A
DVR-XS100-A Storage Expansion Kit DVR-XS100-A
