Bosch DIVAR AN 3000 8ch 960H DVR-3000-08A 240fps

Bosch DIVAR AN 3000 DVR-3000-08A is a new series of high performing 8 channel Digital Video Recorders delivering best in class features and affordable cost. These modernized DVRs include a bountiful array of features that are likewise coupled with high performance. Ideal for CCTV Security Cameras in the 700TVL and greater formats, the new 960H video standard provides dramatically finer video quality than previous 4CIF/D1 systems. The local to remote monitoring abilities all with user-friendly operation to satisfy users’ most popular demands. DIVAR AN 3000 DVRS are designed by Bosch with powerful CCTV surveillance attributes in a low profile, high quality and effectively priced package suitable for all levels of video security systems.

Bosch DIVAR AN 3000 DVR-3000-08A Main Features:

• 8 Channel Real-time 960H DVR
• 960H (960 x 480) High Resolution over 35% better than D1/4CIF
• H.264 Compression with configurable 30fps per channel, total of 240fps
• 1080P HD Display via HDMI and VGA output plus Spot Monitor output
• Mobile support for Tablets and Smart Phones (iOS, Android)
• Web Browser and DVR Client Software Remote Viewing
• Supports 2 SATA HDDs or 1 SATA HDD and 1 DVD-RW
• 4 audio inputs, 1 audio output - 1 Microphone input for talk input/output
• 10/100/1000Base-T Ethernet RJ-45 port
• RS-485/RS-232 Multi-Protocol PTZ control

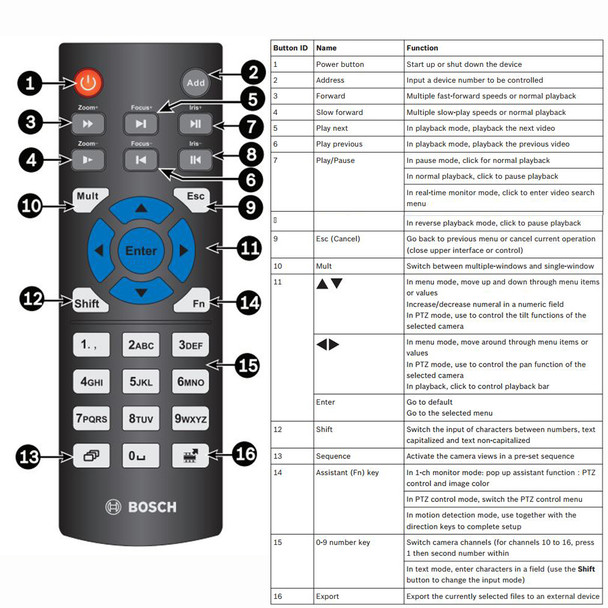

• Front Panel Control, IR Remote and USB Mouse support
• Special Covert (Hidden) Channel
• Alarm I/O 16 Sensor inputs and 3 Relay Outputs
• Alarm/Error Notifications - FTP, EMAIL, On-Screen, Audible, Warning Light
• 14.8 x 11.4 x 2.0 inches not included Feet and Cabling (5 mm)
• 5.51 lbs. approx. without Hard Disk and DVD

Bosch DIVAR Performance:
The latest Bosch DIVAR AN 3000 series Digital Video Recorders enable higher resolution imaging with the new 960H CCTV video format. CCTV Surveillance Systems featuring this new 960H (960 x 480 pixel) video recording produce more than thirty percent image detail compared to traditional 4CIF or D1 CCTV systems. Furthermore the Bosch DIVAR DVR-3000-08A 8ch Digital Video Recorder provides real-time 240fps recording for up to 30fps per channel in full 960H resolution. The efficient H.264 video compression ensures the best bandwidth and storage abilities possible and the unit itself include a variety of options in this regard. The unit likewise offers capable audio support with 4ch audio input, 1ch audio out and a bidirectional microphone input for all your audio and video surveillance needs.

Complete Monitoring and Management:
Regardless of whether users are directly in front of the DVR system or located anywhere in the world with internet connection, the Bosch DIVAR series provides a complete video management system. Take for instance its local display support for both VGA and HDMI outputs in high definition 1080P to what some might consider minor details like spot monitor output. Even more the units grant easy operations with a full function front panel, USB mouse or included IR Remote for all sorts of control needs. The Local GUI is simple for set up as well as for use and remotely the device offers highly effective remote monitoring applications. Comprehensive management of Live, Search, Playback, Export and System Configurations empower Administrators and Users alike with maximum convenience. Bosch Video Clients for Web Browser viewing, Remote Client Software and Mobile applications comprise a full set of user-friendly tools. Mobile viewing with Live Video and PTZ controls is available at no extra cost for iPhone, iPad and android devices.

Full Featured Integration and Simple installation:
Bosch DIVAR AN 3000 DVR-3000-08A is a 8 channel 960H DVR system that covers all the primary CCTV security camera system requirements and beyond. Allowing a large on-board storage for a low pro unit with up to 2 SATA hard drives the DIVAR also displays flexibility with the option for a DVD-RW in place of one SATA Drive. Alarm Terminal Inputs, Relay outputs, External HDD support for export via USB to RS-485/RS-232 PTZ camera integration with multi-protocol abilities is all built-in. Numerous attentions to detail from Search pre-view to various notification methods are just a few simple aspects of many that users will appreciate. This slim line Bosch DIVAR model stands strong as a top choice for reliable protection.

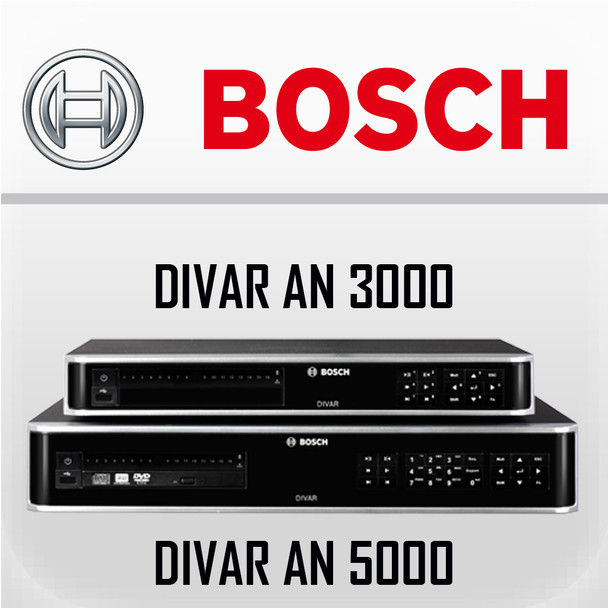

DIVAR AN 3000 Available 8ch Models:

960H/RT digital recorder 8 channels; base unit
Order number DVR-3000-08A000

960H/RT digital recorder 8 channels; DVD
Order number DVR-3000-08A001

960H/RT digital recorder 8 channels; 1 TB HDD
Order number DVR-3000-08A100

960H/RT digital recorder 8 channels; DVD; 1 TB HDD
Order number DVR-3000-08A101

960H/RT digital recorder 8 channels; 2 TB HDD
Order number DVR-3000-08A200

960H/RT digital recorder 8 channels; DVD; 2 TB HDD
Order number DVR-3000-08A201

Optional Accessories:

DVR-XS050-A Storage expansion kit. 500 GB

DVR-XS100-A Storage expansion kit. 1 TB

DVR-XS200-A Storage expansion kit. 2 TB

DVR-XS300-A Storage expansion kit. 3 TB

DVR-XS400-A Storage expansion kit. 4 TB

DVR-XS-DVD DVD Writer Expansion kit

Last updated November 25, 2014
