Bosch DIVAR AN 3000 4ch 960H 120fps DVR-3000-04A

Write a Review
  • Bosch DIVAR AN 3000 4 channel 960H Digital Video Recorder DVR-3000-04A
  • Bosch DIVAR AN 3000 and AN 5000 960H Digital Video Recorders

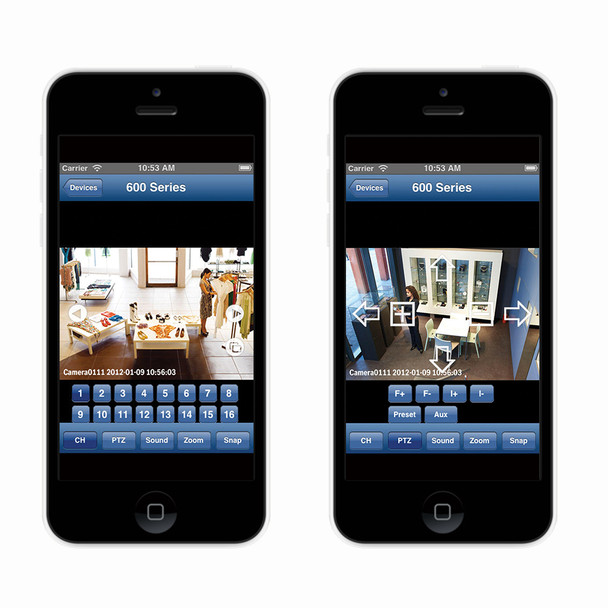

  • Bosch DIVAR DVR Mobile Viewing Applications iOS and Android
  • Bosch DIVAR DVR Remote Client Software Live View
  • Bosch DIVAR DVR Remote Client Software Playback
  • Bosch DIVAR DVR Remote Controller
  • Bosch DIVAR DVR Rear Panel AN 3000
No Longer Available - Contact Us


Bosch DIVAR AN 3000 series Digital Video Recorders introduce a new family of Bosch 960H DVR systems with low profile design, top tier performance and outstanding quality for a competitive price. The device utilize the modern 960H video formats and H.264 compression for distinctly better than previous CCTV video surveillance. Packed with the most demanded and desirable attributes, these compact DVR systems lack little and give lots. Bosch quality is foremost recognized and despite being affordable you will find the attention to detail is well distributed through the complete products design. Local or Remote Monitoring is fully capable while the system itself boast feature rich functionality that delivers performance and quickly proves it as a best in class DVR.

Bosch DIVAR AN 3000 DVR-3000-04A Main Features:

  • 4 Channel Real-time 960H DVR
  • 960H (960 x 480) High Resolution over 35% better than D1/4CIF
  • H.264 Compression with configurable 30fps per channel, total of 120fps
  • 1080P HD Display via HDMI and VGA output plus Spot Monitor output
  • Mobile support for Tablets and Smart Phones (iOS, Android)
  • Web Browser and DVR Client Software Remote Viewing
  • Supports 2 SATA HDDs or 1 SATA HDD and 1 DVD-RW
  • 4 audio inputs, 1 audio output - 1 Microphone input for talk input/output
  • 10/100/1000Base-T Ethernet RJ-45 port
  • RS-485/RS-232 Multi-Protocol PTZ control
  • Front Panel Control, IR Remote and USB Mouse support
  • Special Covert (Hidden) Channel
  • Alarm I/O 16 Sensor inputs and 3 Relay Outputs
  • Alarm/Error Notifications - FTP, EMAIL, On-Screen, Audible, Warning Light
  • 14.8 x 11.4 x 2.0 inches not included Feet and Cabling (5 mm)
  • 5.51 lbs. approx. without Hard Disk and DVD


Bosch High Performing
The 960H (960 x 480 pixel) video recording standard is best suited for 700TVL and above CCTV security Cameras. When combining this new 960H 4ch DVR and 700TVL CCTV cameras in a single surveillance system, users immediately realize the more than 35 percent more detailed video when compared to traditional 4CIF/D1 CCTV systems. Real-time 120fps video recording in full 960H resolution with up to 30fps per channel and each also being individually configurable. Additional qualities like H.264 video compression enable superior bandwidth as well as storage file size reduction. Simply stated, the Bosch DIVAR AN 3000 delivers users state-of-the-art security systems.

Total Video Management System:
The DVR-3000-04A Bosch 4ch Digital Video Recorder is a fully capable video security solution including full local and remote monitoring abilities. At the site the unit delivers HDMI and VGA output supporting 1080P high definition monitoring while additional benefits include spot monitor output, front panel control, USB mouse support and full function IR remote. Easy to use local GUI (Graphical User Interface) provides easy system configuration to simple navigation for all aspects of the DVR software. Remotely users likewise enjoy the complete video management functions such as Live Single and Multi-View displays, PTZ Camera Control, Search with Preview to device settings or video export. Bosch Video Client for Web Browser, Remote Client Software and free DIVAR Mobile Viewing Applications are all provided without extra cost. Support for Android, iPhone or Ipad allows live view and PTZ Security Cameras to be controlled via tablets or smart phones.

Professional Integration, Quick Installation:
Across the board Bosch DIVAR AN 3000 DVR-3000-04A 4 channel Digital Video Recorder ensures compatibility with all sorts of sophisticated CCTV system requirements. Connection for 4 channel audio input, 1 channel output and a specialized bi-directional microphone port. The units further enable multiple Alarm I/O connections to multi-protocol support for Pan/Tilt/Zoom Security Cameras with RS-485/RS-232 terminal. USB ports and an optional DVD-RW allow easy on-site back-up and without the DVD-RW the units can handle two SATA Hard Drives.
Bosch DIVAR AN 3000 4ch Digital Video Recorders despite all these and plenty more perks is a device that is easy to install.

DIVAR AN 3000 Available 4ch Models:

960H/RT digital recorder 4 channels; base unit
Order number DVR-3000-04A000

960H/RT digital recorder 4 channels; DVD
Order number DVR-3000-04A001

960H/RT digital recorder 4 channels; 1 TB HDD
Order number DVR-3000-04A100

960H/RT digital recorder 4 channels; DVD; 1 TB HDD
Order number DVR-3000-04A101

960H/RT digital recorder 4 channels; 2 TB HDD
Order number DVR-3000-04A200

960H/RT digital recorder 4 channels; DVD; 2 TB HDD
Order number DVR-3000-04A201

Optional Accessories:

DVR-XS050-A Storage expansion kit. 500 GB

DVR-XS100-A Storage expansion kit. 1 TB

DVR-XS200-A Storage expansion kit. 2 TB

DVR-XS300-A Storage expansion kit. 3 TB

DVR-XS400-A Storage expansion kit. 4 TB

DVR-XS-DVD DVD Writer Expansion kit


Last Updated November 25, 2014
