Description

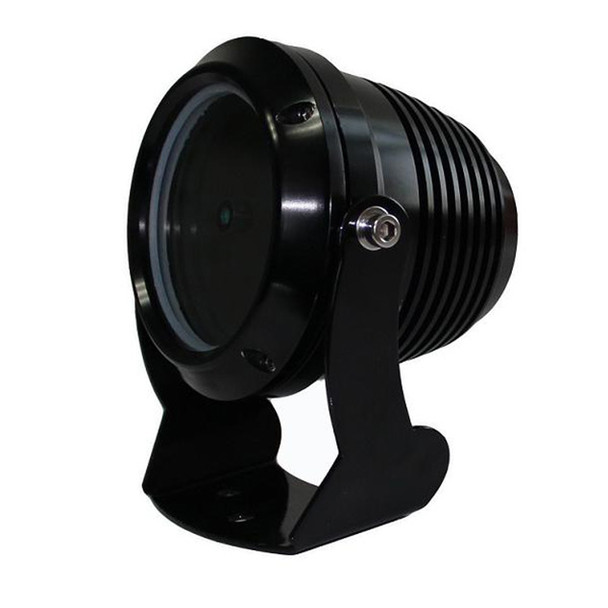

The ALX-SA6-IR is a powerful infrared illuminator designed for medium-range coverage in IP and CCTV surveillance applications. It features 6 high-power IR LEDs and selectable beam angles from 15° to 120°, providing up to 80 meters of infrared illumination at 15° (850nm). This makes it ideal for building perimeters, parking structures, and general outdoor lighting tasks.
Built with a durable die-cast aluminum housing and tempered glass front panel, the ALX-SA6-IR achieves an IP66 protection rating and withstands extreme temperatures. It is offered with 850nm Semi-Covert, 940nm Covert or even 740nm IR wavelengths and features a built-in automatic day/night photocell for smart operation. Power is supplied via DC12V, drawing 800mA (850nm), and the unit supports easy wall mounting with an included bracket. The device is an attractive compact IR Light ideal for video security cameras and other specialized demands.
Key Features:
- 6 high-power infrared LEDs
- Beam angle options from 15° to 120°
- IR range up to 80m (15°)
- 850nm or 940nm IR wavelength
- Rugged aluminum housing with tempered glass panel
- IP66-rated for all-weather conditions
- Built-in photocell for automatic switching
- Simple wall-mount installation
- Long-life LEDs rated to 50,000 hours
Specifications:
- LED Type: 6pcs high-power IR LED
- Wavelength: 740nm / 850nm / 940nm (options)
- Beam Angle & IR Distance (850nm):
- 15°: 80m
- 30°: 60m
- 45°: 40m
- 60°: 22m
- 90°: 16m
- 120°: 12m
- Voltage: DC12V
- Current: 800mA (850nm)
- Power: ~9.6W
- Cable: 0.45m
- Panel: Tempered glass
- Housing: Die-cast aluminum
- Protection: IP66
- Day/Night Switch: Photocell (automatic)
- Operating Temp: -30°C to 50°C
- Mount: Wall-mount bracket
- Dimensions: 140 × 115 × 105 mm
- Net Weight: 0.53kg
- Gross Weight: 0.6kg
Model Order Info:
850nm Semi-Covert
ALX-SA6-IR15 15° 80m
ALX-SA6-IR30 30° 60m
ALX-SA6-IR45 45° 40m
ALX-SA6-IR60 60° 22m
ALX-SA6-IR90 90° 16m
ALX-SA6-IR120 120° 12m
940nm Fully Covert
ALX-SA6-9IR15 15° 40m
ALX-SA6-9IR30 30° 30m
ALX-SA6-9IR45 45° 18m
ALX-SA6-9IR60 60° 11m
ALX-SA6-9IR90 90° 8m
ALX-SA6-9IR120 120° 5m
