Description

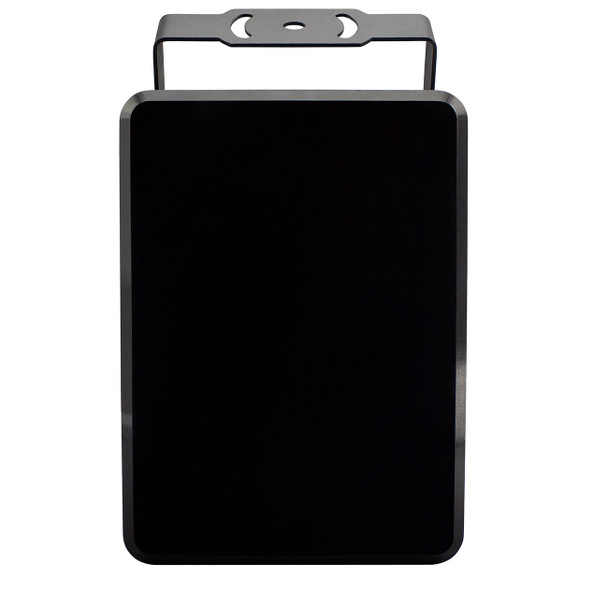

The ALX-H240EV-IR EVA Series IR Illuminator is a professional-grade infrared lighting system designed for flexibility and high-performance in demanding surveillance environments. This unit features advanced electric variable beam angle technology (EVA Tech), allowing remote or RS485-based zoom adjustment of the beam between 10°–40° or 40°–80°, offering versatile coverage for both focused and wide-area illumination needs. This innovation resolves the traditional limitations of fixed-angle illuminators and supports synchronized operation with motorized zoom cameras.
The illuminator is equipped with 24 high-efficiency infrared LEDs and supports both 850nm semi-covert and 940nm covert (invisible) infrared wavelength versions, enabling customization for different operational visibility levels. At 850nm, it delivers infrared coverage up to 350 meters, making it ideal for long-range security requirements. The rugged construction includes an IK10-rated vandal-proof housing and IP68-rated waterproof sealing, ensuring continuous performance in extreme weather or exposed conditions.
This IR Illuminator also includes intelligent features such as automatic day/night switching via a built-in light sensor, remote brightness control, manual ON/OFF options, and compatibility with RS485 protocols like PELCO-D. Its robust cooling system and flexible U-bracket mount support long-term reliability and simplified installation. Suitable for high-security zones like borders, railways, ports, and correctional facilities, the ALX-H240EV-IR is a reliable solution for enhancing low-light camera performance with adaptable infrared lighting.
Key Features:
- 24-piece high-output IR LED array
- Adjustable beam angle: 10°–40° or 40°–80°
- Available in 850nm (semi-covert) or 940nm (covert)
- IR range up to 350m (depending on beam and wavelength)
- Remote or RS485 (PELCO-D) beam control
- Vandal-proof aluminum housing (IK10) with IP68 waterproofing
- Auto day/night switch and remote brightness control
- Ideal for IP/CCTV systems with zoom lens compatibility
- Flexible U-bracket for simple installation
- Dual Panel and Triple Panel Illuminator combos also available
Specifications:
- LED Type: 24pcs IR LED
- Wavelength Options: 850nm (semi-covert) or 940nm (covert)
- Beam Angle: Adjustable 10°–40° or 40°–80° (by RS485 or remote)
- IR Distance (850nm): 140m–350m (10°–40°), 50m–90m (40°–80°)
- Beam Shape: Round
- ON/OFF Control: Auto via light sensor or manual via remote
- Brightness Levels: 10/20/50/100% via remote
- Beam Control: RS485 (PELCO-D) or remote
- Input Voltage: 24VDC ±10%, or 24V AC (50/60Hz) ±10%
- Max Power Consumption: 80W
- Operating Temp: -40°C to 55°C
- Protection Rating: IP68, IK10
- Bracket Type: Flexible U bracket
- Cable Length: 1.5 meters
- Net Weight: 2.6kg
- Gross Weight: 3.0kg
- Unit Dimensions: 220×160×74mm
- Packing Dimensions: 250×290×170mm
Model Order Info:
850nm Semi-Covert
ALX-H240EV-IR1040 10°-40° 350-140m
ALX-H240EV-IR4080 40°-80° 90-50m
940nm Fully Covert
ALX-H240EV-IR1040 10°-40° 120-60m
ALX-H240EV-IR4080 40°-80° 60-30m
