Description

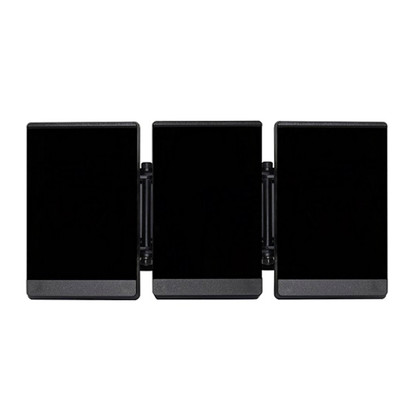

The ALX-H303-IR is a triple-panel infrared illuminator—three H301 modules combined—for ultra-long range and very wide coverage. Model-specific angle ranges (for example, 10°–30°, 30°–90°, 120°–230°) let installers align panels to push distance or widen spread for borders, ports, and large perimeters. Narrow 850nm versions reach up to 700m, while 940nm covert models support sensitive or tactical environments. The platform pairs cleanly with CCTV and IP Security cameras, including Ultra HD/4K, to stabilize analytics in zero-light scenes. An ALX-H303-IRi version is available with Intelligent IR Illuminator—intelligent light brightness control that adapts to ambient light to maintain even illumination without foreground overexposure or background underexposure. The unit ships standard as 12V DC; AC24V or AC85–265V are alternate build options supplied per model.
Key Features:
- Triple-panel array with angle-range models up to 230°
- 850nm or 940nm wavelengths for semi-covert or covert illumination
- Up to 700m IR distance (10°–30° at 850nm)
- ALX-H303-IRi Intelligent IR version available
- IP66 weatherproof aluminum housing; tempered front panel (Full IK10 optional)
- Auto on/off photocell operation, optional I/O controlled versions

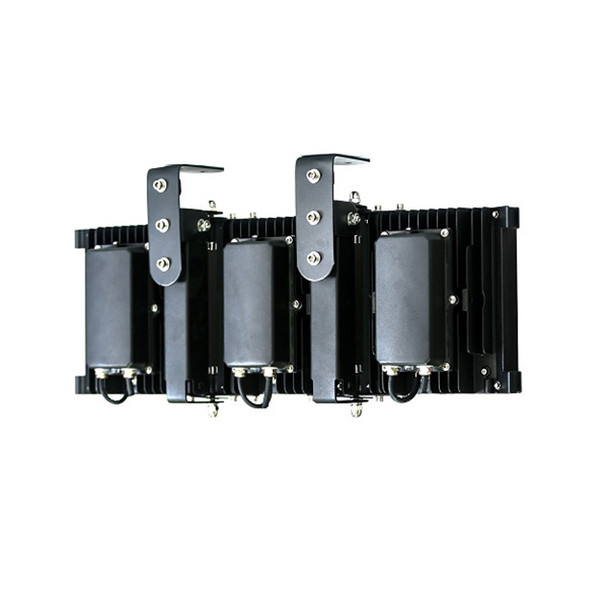

- Wall-mount U-bracket; robust thermal design for continuous duty
- Ideal for borders, ports, transit corridors, and long perimeters
Specifications:
- LEDs: 90pcs high-power IR LEDs
- Wavelengths: 850nm or 940nm (740nm on request)
- Angle Ranges (per model): 10°–30° / 15°–45° / 30°–90° / 45°–150° / 60°–180° / 90°–200° / 120°–230°
- Typical IR Distance (850nm): up to 700m (10°–30°)
- Input Voltage: 12V DC (standard); AC24V or AC85–265V optional per model
- Power (typ., 850nm): 111W
- Day/Night: Auto (photocell)
- Operating Temp: -40°C to 50°C
- Protection: IP66
- Housing/Panel: Aluminum / toughened high-transmittance glass
- Dimensions/Weight: 610×206×117mm; N.W. 12kg
- Cable: 1.3m lead
- Mount: Wall-mount U-bracket
Model Order Info:
850nm (Semi-Covert)
ALX-H303-IR10 10°–30° 700m–350m
ALX-H303-IR15 15°–45° 400m–240m
ALX-H303-IR30 30°–90° 300m–180m
ALX-H303-IR45 45°–150° 180m–110m
ALX-H303-IR60 60°–180° 110m–90m
ALX-H303-IR90 90°–200° 100m–80m
ALX-H303-IR120 120°–230° 90m–65m
940nm (Covert)
ALX-H303-9IR10 10°–30° 350m–175m
ALX-H303-9IR15 15°–45° 200m–120m
ALX-H303-9IR30 30°–90° 150m–90m
ALX-H303-9IR45 45°–150° 90m–55m
ALX-H303-9IR60 60°–180° 55m–45m
ALX-H303-9IR90 90°–200° 50m–40m
ALX-H303-9IR120 120°–230° 45m–33m
