Vivotek SD8364E 30x Speed Dome 2MP PTZ IP Camera

Write a Review
SKU:
SD8364E
MPN:
SD8364E
  • Vivotek SD8364E Speed Dome PTZ IP Camera 2MP 30x IP67
  • Vivotek SD8364E Dome PTZ IP Camera accessories 1
  • Vivotek SD8364E Dome PTZ IP Camera accessories 2

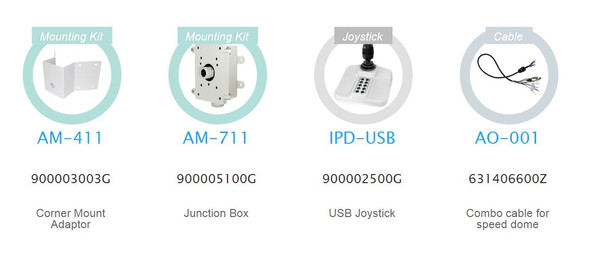

  • Vivotek SD8364E Dome PTZ IP Camera accessories 3
  • Vivotek SD8364E Dome PTZ IP Camera dimensions

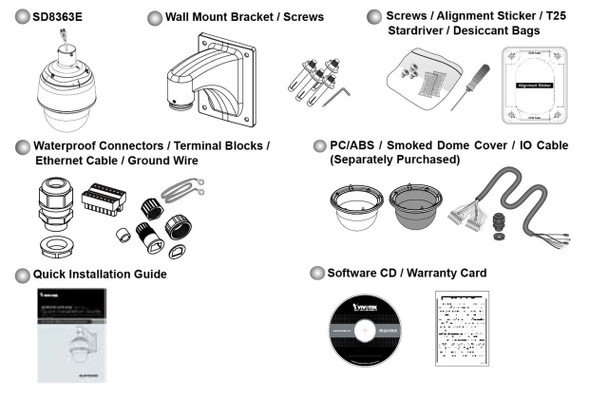

  • Vivotek SD8364E Dome PTZ IP Camera what's included
Contact Us

Description

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

https://www.a2zsecuritycameras.com/megapixel-hd-ip-ptz-cameras.html

Moved to EOL: February 24, 2020

Vivotek SD8364E 30x Speed Dome 2MP PTZ IP Camera is a high performing Pan/Tilt/Zoom security camera for pro security system or IP surveillance system demands. Built with a Sony 2 Megapixel CMOS Image Sensor the unit produces vivid 1080P HD video at up to 30fps real-time or 720p up to an even better 60fps. Plus Triple Codec up to Quad Streaming of H.264, MPEG-4 or MJPEG only further promise diverse video management abilities. Part of the Supreme series the PTZs feature Wide Dynamic Range (WDR) Pro as well as 3D Digital Noise Reduction and many other image enhancements for optimal video capture in even the most challenging conditions. True Day/Night operation enables low light video security in as little as 0.001 Lux. Countless advantages are loaded in the Vivotek SD8364E 2MP PTZ Cameras including smart functions like PTZ Auto Tracking to on-board Storage via Micro SDHC or SDXC card slot. Thus for stand-alone IP Surveillance to 3rd party system integration via SDK or ONVIF the possibilities are endless.

Users will immediately appreciate an easy to operate Pan/Tilt/Zoom IP Camera which provides superior speed matched with excellent precision including endless 360 rotation (pan) and an extended tilt range of 220 degrees. Exceptional viewing distance is also realized thanks to a DC Iris, Auto Focus 30x Optical Zoom Lens. Consider multi-protocol RS-485 input to numerous preset positions, preset tours or patrol modes that are also included and it’s easy to this is a pro-grade unit. Even more Digital I/O, Two Way Audio to advanced Audio Detection, Defog or EIS (image stabilization) all ensure the best results. Fully Weatherproof IP67 and NEMA 4x outdoor rated the Vivotek SD8364E is built for tough environments and extreme temperatures. Flexible Power Input via High Power PoE, PoE Plus or simply 24VAC guarantee typical power methods or all accessible. The added array of optional mounting hardware go beyond the included wall mount and allow pendant mounting, in-ceiling (recessed), parapet, pole mount and other accessory choices to best fit desired install.

Vivotek SD8364E Main Features:

  • 1080p 2 Megapixel Image Sensor CMOS Sensor
  • 30 fps at 1080p Full HD or 60 fps at 720p HD
  • 30x Zoom Lens, 360 Degree Endless Pan, 220 degree Tilt
  • True Day/Night 0.14 Lux at 1/5s (Color) or 0.01 Lux at 1/5s (B/W)
  • 360° Continuous Pan and 220° Tilt
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Two Way Audio with Audio Detection
  • Video Motion Detection and PTZ Auto Tracking
  • 3D Privacy Masks for Additional Protection
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Weather-proof IP67-rated and NEMA 4X Housing
  • -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
  • 24VAC, High PWR PoE or Built-in 802.3at Compliant PoE Plus


Vivotek SD8364E More Specifications:

  • 1/2.8" 2-Megapixel Progressive CMOS Sensor
  • Maximum Resolution: 1920x1080 or 1080P at 30fps and 1280x720 or 720p at 60fps
  • 30x Optical Zoom, Auto Focus, DC Iris Lens 4.3~129mm, F1.6-F4.7 (HFOV: 2.3° ~ 64°)
  • IR Cut-filter True Day/Night 0.14 Lux at F1.6 1/5s (Color) or 0.01 Lux at F1.6 1/5s (B/W)
  • Pan/Tilt Speeds: 0.05° ~ 450° per sec
  • Pan Range: 360 endless and Tilt Range: 220° (-110° ~ +110°)
  • Preset Locations: 256 preset locations, 40 presets per tour and Auto pan or Auto patrol mode
  • Pan/tilt/zoom Functions: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Recording Storage: SD, SDHC or SDXC card slot
  • Video Compression: H.264, MJPEG or MPEG-4
  • Maximum Frame Rate: H.264, MPEG-4 or MJPEG at 60 fps @ 1280x720 (MJPEG w/WDR 30fps)
  • Multi-Streaming: up to 4 video streams
  • WDR Pro: Wide Dynamic Range 108 dB
  • Time stamp, text overlay, flip & mirror, privacy masks (Up to 24) and Defog
  • Live viewing for up to 10 web clients
  • Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ONVIF
  • Video Motion Detection and Auto-tracking on moving object
  • Alarm Triggers: Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
  • Alarm Events: Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
  • Two Way Audio I/O: input/output lines (full duplex) w/Audio Codecs: AAC, G.711, and G.726
  • Digital I/O: input 4/output 2
  • RS-485 for PTZ control via Pelco D
  • Weather-proof IP67 and NEMA 4X-rated mated housing
  • Operating Temperature: -5°C ~ 55°C (PoE Plus) or -40°C ~ 55°C (AC 24V or High PWR PoE)
  • Built-in electrical dehumidifier device (SD8364E-M)
  • Approvals: CE, FCC Class A, VCCI, C-Tick, NEMA 4X
  • Power Input: PoE plus (IEEE 802.3at compliant). High Power PoE or 24VAC
  • Power Consumption: PoE plus: Max. 19W or 24VAC / High Power PoE: Max. 48W (heater on)
  • Dimensions Ø: 205mm x 321mm
  • Weight Net: 3660 grams
  • 3YR Warranty

Last Updated: July 27, 2016
