Vivotek SD8363E Outdoor 2MP PTZ Dome IP Camera 20x

Write a Review
SKU:
SD8363E
  • Vivotek SD8363E 2MP PTZ IP Camera 20x

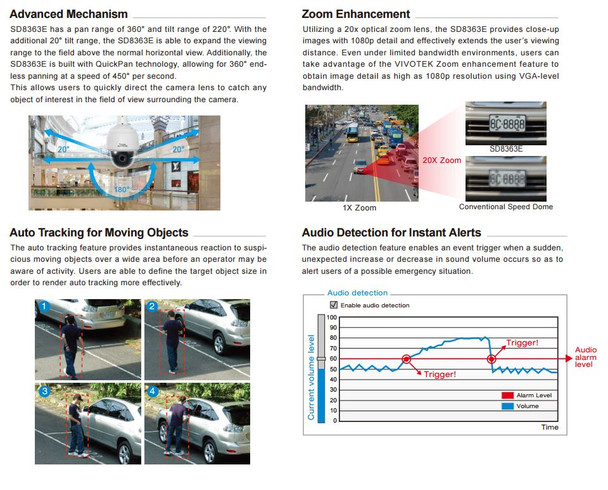

  • Vivotek SD8363E 2MP PTZ IP Camera PTZ Auto Tracking Detection Info
  • Vivotek SD8363E 2MP PTZ IP Camera 60fps high frame rates
  • Vivotek SD8363E 2MP PTZ IP Camera WDR pro info
  • Vivotek SD8363E 2MP PTZ IP Camera accessories 1
  • Vivotek SD8363E 2MP PTZ IP Camera accessories 2
  • Vivotek SD8363E 2MP PTZ IP Camera accessories 3
  • Vivotek SD8363E 2MP PTZ IP Camera dimensions

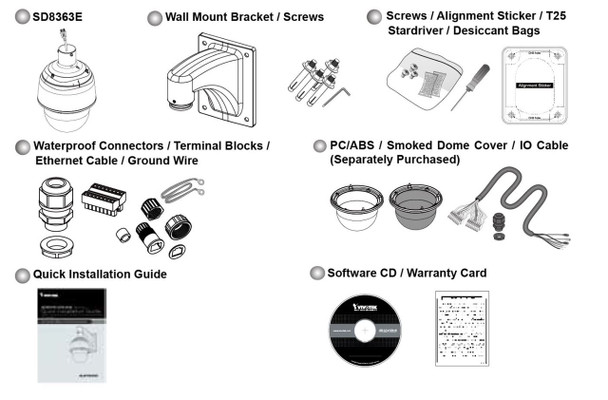

  • Vivotek SD8363E 2MP PTZ IP Camera whats included
Contact Us

Description

NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

https://www.a2zsecuritycameras.com/megapixel-hd-ip-ptz-cameras.html

Moved to EOL: February 24, 2020

Vivotek SD8363E Outdoor Speed Dome 2MP 20x PTZ Camera is part of the Supreme line of intelligent network security cameras. The PTZ unit is equipped with a 2 Megapixel Sony HD CMOS image sensor and combines True Day/Night Function for impressive 1080P HD Video in as little as 0.001 Lux. The unit is further enhanced by image advancements like WDR Pro to 3D Noise reduction. Triple Codec support for H.264, MPEG-4 or MJPEG plus quad streaming enable maximum IP Surveillance versatility. Capture Real-time 30fps in full 1080P or 60fps in 720P HD. More smart features like triple window motion detection and PTZ Auto-Tracking combine with event notifications to event actions like on-board storage via Micro SD, SDHC or SDXC card slot. The unit is loaded with user configurable settings and third party Vivotek SDK integration is widely supported not to mention the Onvif compliance. Free Vivotek VMS/NVR Software, Mobile Viewing Applications to an intuitive plus rich web interface promise you satisfaction on every level.

The Vivotek SD8363E is outfitted with a 20x optical Zoom that coupled with its high quality pan/tilt mechanism yield precise control, superb speed and an endless 360 panning to extended 220-degrees of tilt. All the common preset, tour and auto patrol or pan modes are provided as well as even an RS-485 input, allowing multi-protocol control of PTZ movements. Even more Two Way Audio with AAC compression to Digital I/O empowers comprehensive scene surveillance with endless possibilities of alarm or relay external devices. The Vivotek SD8363E Outdoor IP PTZ Camera isn't only weatherproof IP67 and NEMA 4x rated, it offers an extended operating range and optional version (SD8363E-M) with dehumidifier. Flexible power input is allowed with PoE Plus, High Power PoE or common 24VAC power input.

Vivotek SD8363E Main Features:

  • 1080p HD SONY CMOS Sensor
  • 30 fps at 1080p Full HD or 60 fps at 720p HD
  • 20x Zoom Lens, 360 Degree Endless Pan, 220 degree Tilt
  • Powerful Day/Night 0.02 Lux Color/0.001 Lux B/W
  • 360° Continuous Pan and 220° Tilt
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)

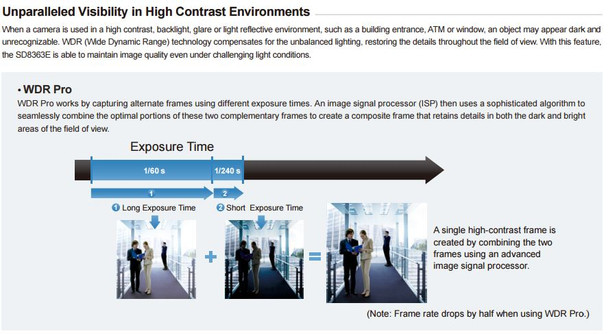

  • WDR Pro for Unparalleled Visibility in High Contrast Environments
  • Two Way Audio with Audio Detection
  • Video Motion Detection and PTZ Auto Tracking
  • 3D Privacy Masks for Additional Protection
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Weather-proof IP67-rated and NEMA 4X Housing
  • -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
  • 24VAC, High PWR PoE or Built-in 802.3at Compliant PoE Plus


Vivotek SD8363E More Specifications:

  • 1/2.8" 2-Megapixel Progressive CMOS Sensor
  • Maximum Resolution: 1920x1080 or 1080P at 30fps and 1280x720 or 720p at 60fps
  • 20x Optical Zoom, Auto Focus, DC Iris Lens 4.7~94mm, F1.6-F4.7 (HFOV: 3° ~ 55°)
  • IR Cut-filter True Day/Night 0.02 Lux @ F1.6 (Color) or 0.001 Lux @ F1.6 (B/W)
  • Pan/Tilt Speeds: 0.05° ~ 450° per sec
  • Pan Range: 360 endless and Tilt Range: 220° (-110° ~ +110°)
  • Preset Locations: 256 preset locations, 40 presets per tour and Auto pan or Auto patrol mode
  • Pan/tilt/zoom Functions: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Recording Storage: SD, SDHC or SDXC card slot
  • Video Compression: H.264, MJPEG or MPEG-4
  • Maximum Frame Rate: H.264, MPEG-4 or MJPEG at 60 fps @ 1280x720 (MJPEG w/WDR 30fps)
  • Multi-Streaming: up to 4 video streams
  • WDR Pro: Wide Dynamic Range 108 dB
  • Time stamp, text overlay, flip & mirror, privacy masks (Up to 24) and Defog
  • Live viewing for up to 10 web clients
  • Protocols: IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, ONVIF
  • Video Motion Detection and Auto-tracking on moving object
  • Alarm Triggers: Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
  • Alarm Events: Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
  • Two Way Audio I/O: input/output lines (full duplex) w/Audio Codecs: AAC, G.711, and G.726
  • Digital I/O: input 4/output 2
  • RS-485 for PTZ control via Pelco D
  • Weather-proof IP67 and NEMA 4X-rated mated housing
  • Operating Temperature: -5°C ~ 55°C (PoE Plus) or -40°C ~ 55°C (AC 24V or High PWR PoE)
  • Built-in electrical dehumidifier device (SD8363E-M)
  • Approvals: CE, FCC Class A, VCCI, C-Tick, NEMA 4X
  • Power Input: PoE plus (IEEE 802.3at compliant). High Power PoE or 24VAC
  • Power Consumption: PoE plus: Max. 19W or 24VAC / High Power PoE: Max. 48W (heater on)
  • Dimensions Ø: 205mm x 321mm
  • Weight Net: 3660 grams
  • 3YR Warranty

Last Updated: July 27, 2016
