Vivotek SD9362-EHL H.265 2MP PTZ Dome IP Camera 30x

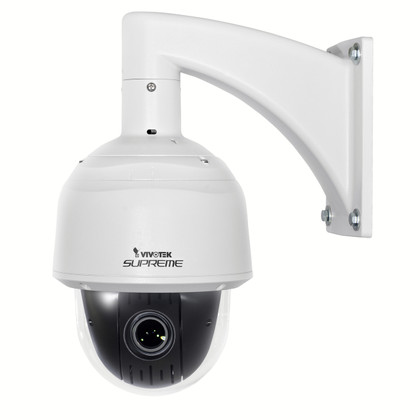

  • Vivotek SD9362-EHL H.265 2MP 30x PTZ Dome IP Camera

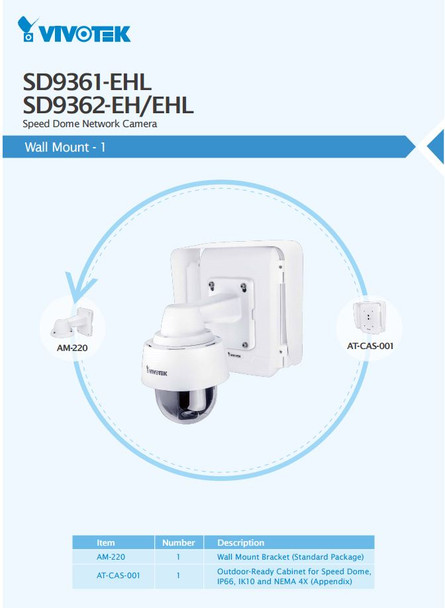

  • Vivotek SD9362-EHL PTZ Dome IP Camera Wall Mount with Outdoor Box
  • Vivotek SD9362-EHL PTZ Dome IP Camera Wall Mounts with pipe

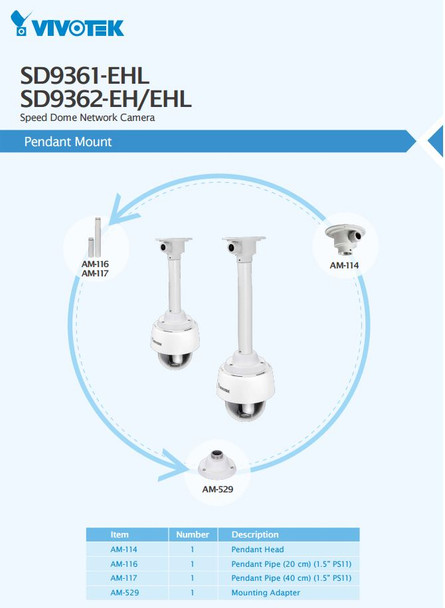

  • Vivotek SD9362-EHL PTZ Dome IP Camera Pendant Mounts
  • Vivotek SD9362-EHL PTZ Dome IP Camera Outdoor Box plus Pole Mount
  • Vivotek SD9362-EHL PTZ Dome IP Camera other Pole Mounts

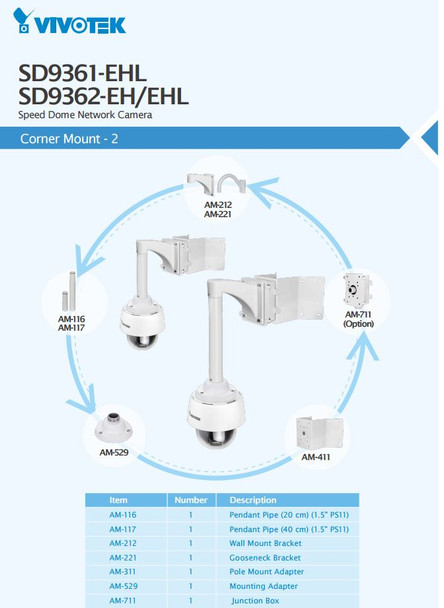

  • Vivotek SD9362-EHL PTZ Dome IP Camera Outdoor box and corner mount
  • Vivotek SD9362-EHL PTZ Dome IP Camera other corner mount
  • Vivotek SD9362-EHL PTZ Dome IP Camera parapet mount
  • Vivotek SD9362-EHL PTZ Dome IP Camera dimensions
Calculated at checkout

Product Description

Vivotek SD9362-EHL 30x H.265 Speed Dome PTZ IP Camera is a the top of the line Pan/Tilt/Zoom Security Camera boasting best in class features and functionality. The unit is built with a 2-megapixel progressive scan CMOS sensor and offers up to 1080P HD video at a stunning 60fps. Additionally this unit is equipped with the latest H.265 compression technology, plus Vivotek's Smart Stream II enables dramatic bandwidth reduction compared to even h.264 codecs. H.265, H.264 and MJPEG are supported in up to four simultaneous video streams for maximum versatility. Powerful Wide Dynamic Range Pro, EIS (electronic Image stabilization), 3D Digital Noise Reduction and highly configurable camera image settings ensure optimal video security all the time. True Day/Night function to Powerful 30x Optical Zoom including precise, high speed pan and tilt operation make this PTZ unit a powerful active user surveillance tool. Furthermore the Vivotek SD9362-EHL 30x PTZ IP Cameras feature intelligent on-board detection, PTZ Auto Tracking, event notifications and local video recording via Micro SDHC or SDXC cards for stand-alone, automated IP Surveillance System needs.

Part of the Supreme Series the unit boast an IP68 and NEMA 4x weatherproof rating which alone make a superior solution to most other industry outdoor PTZ options. A High Impact IK10 Casing, vandal proof design only further ensures a rugged unit ready for the most challenging environments. Even better the unit has a wide range of optional mounting accessories to accommodate all sorts of typical mounting requirements like pole mounts, corner or parapet mounts and even offers a unique outdoor cabinet back box for customized installations. The abilities to support Two Way Audio to Digital I/O or even traditional RS-485 PTZ control are all present. Likewise flexible power input includes 24VDC, 24VAC or UPoE (60W universal Power over Ethernet) promising simplified adoption to security system needs. Vivotek's widely supported SDK to the units latest ONVIF compliance empowers 3rd party system integration while FREE CMS/NVR solutions like Vivotek VAST Software are readily available to complete your project end-to-end.

Vivotek SD9362-EHL HD PTZ Camera Features:

  • 30x Optical Zoom
  • H.265 Compression
  • 1080P Full HD CMOS Sensor
  • 60fps at full 1080P (1920x1080)
  • True Day/Night ICR
  • 360° Continuous Pan and 110° Tilt
  • WDR Pro, SNV, 3DNR, Defog, EIS
  • Smart Stream II for Optimal Bandwidth Efficiency
  • Audio Detection, Video Motion Detection, PTZ Auto Tracking and more
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • Weatherproof IP68-rated, Vandal-proof IK10-rated and NEMA4X Housing
  • -40°C ~ 55°C Wide Temperature Range for Extreme Weather Conditions
  • 24VDC, 24VAC or UPoE Power Sources

Vivotek SD9362-EHL More Specifications:

  • 2 Megapixel (1920 x 1080) 1/3" Progressive CMOS Image Sensor
  • 30x Optical Zoom, Auto Focus, DC-Iris, 4.3-129mm, F1.6 ~ F4.7 (HFOV: 2° ~ 59°)
  • True Day Night with 0.42 Lux at F1.6 (Color) or 0.01 Lux at F1.6 (B/W)
  • Pan/Tilt Speed: 0.05° ~ 450°/sec., 360° endless Pan and 110° Tilt Range
  • Pan/Tilt/Zoom Functions: 256 presets, 128 presets per tour, Auto pan and Auto patrol mode
  • On-board Recording Storage Slot type: SD, SDHC or SDXC card slot
  • H.265, H.264 or MJPEG Compression
  • H.265 & H.264: 60 fps at 1080P (1920 x 1080)
  • MJPEG: 30 fps at 1080P (1920 x 1080)
  • Video Streams 4 concurrent streams
  • Individually Configurable video streams with Smart Stream II
  • WDR Pro (Wide Dynamic Range): 100 dB
  • EIS (Electronic Image Stabilization), 3DNR (3D Noise Reduction), defog
  • In-depth Image Settings plus Time & text overlay, flip & mirror, privacy masks (up to 24), Scheduled profiles, EIS, 3DNR, defog
  • Two-way Audio (Full duplex), Codecs G.711 or G.726 with External input/output
  • Up to 10 live viewing web clients
  • ONVIF Supported and Open SDK for 3rd Party Security Systems
  • Video Motion Detection Five-window video motion detection
  • PTZ Auto-tracking on moving object
  • Alarm Triggers: Motion detection, manual trigger, digital input, periodic trigger, system boot, recording notification, and audio detection
  • Alarm Event notification via digital output, HTTP, SMTP, FTP, NAS & SD Card
  • File upload via HTTP, SMTP, FTP, NAS & SD card
  • Digital I/O: inputs 4/outputs 2
  • RS-485 for traditional PTZ control
  • Superior Weatherproof IP68 rated, Vandal-proof IK10-rated, NEMA 4X-rated
  • Certificate Approvals: CE, FCC Class A, VCCI, C-tick, UL, NEMA 4X
  • Wide Operating Temperature: -40°C ~ 55°C (-40°F ~ 131°C) Humidity 90%
  • Power Input: 24VDC or 24VAC or 60 UPoE
  • Power Consumption Max. 48/26 W (Heater on/off)
  • Dimensions: Ø 162mm x 221mm
  • Weight: 2.95 kg
  • 3YR Warranty
