ACTi

ACTi B934 2MP 30x Indoor IP PTZ Camera Speed Dome

Write a Review
SKU:
B934
UPC:
888034008595
MPN:
B934
Shipping:
Calculated at Checkout
  • ACTi B934 Indoor IP PTZ Camera 30x 2MP Speed Dome
  • ACTi B934 2MP 30x Indoor IP PTZ Camera Speed Dome
  • ACTi B934 Indoor IP PTZ Camera in-ceiling flush mount kit PMAX-1010
  • ACTi B934 Indoor IP PTZ Camera gang box pendant mount kit SMAX-0248
  • ACTi B934 Indoor IP PTZ Camera pendant mount kit SMAX-0052
  • ACTi B934 Indoor IP PTZ Camera NPT adapter pendant mount kit SMAX-0153
  • ACTi B934 Indoor IP PTZ Camera wall mount L-bracket mount kit SMAX-0248
  • ACTi B934 Indoor IP PTZ Camera wall mount arm kit SMAX-0151
  • ACTi B934 Indoor IP PTZ Camera Wall Mount Gooseneck kit SMAX-0066
  • ACTi B934 Indoor IP PTZ Camera Gooseneck Pole Mount Kit SMAX-0111

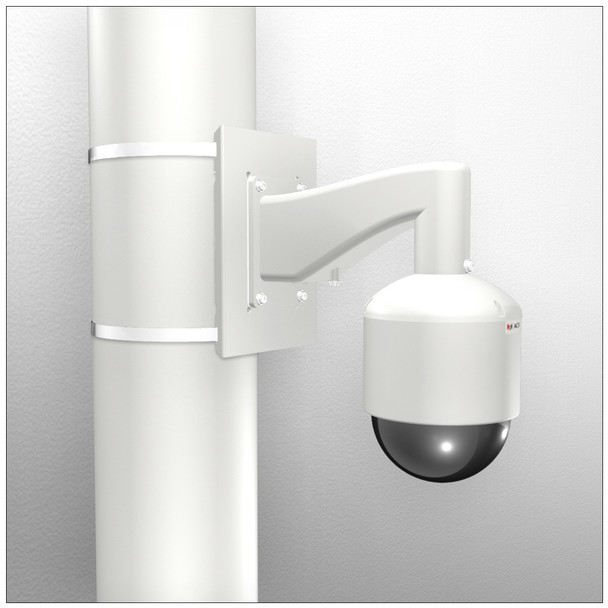

  • ACTi B934 Indoor IP PTZ Camera Pole Mount Arm Kit SMAX-0111
  • ACTi B934 Indoor IP PTZ Camera internal Diagram
  • ACTi B934 Indoor IP PTZ Camera Dimensions
$2,335.00

Description

ACTi B934 2MP 30x Indoor Speed Dome IP PTZ Camera delivers the latest perfection in high performing, professional Pan/Tilt/Zoom Security Cameras. Superb video clarity in 1080P HD via a modern 2MP CMOS image sensor combines with ACTi SLLS, 3D DNR and Extreme WDR Image Enhancements plus true Day/Night operations for best in class video performance. Flexible IP Surveillance video streaming is also realized thanks to triple streaming plus multiple H.264 or MJPEG compression options. Excellent video quality is matched with diverse camera capabilities in every regard. Attributes like versatile IT protocol Support and 3rd Party integration to On-board Edge-Based Video Analytics like PTZ Auto Tracking or Line Crossing offer powerful possibilities. Added Smart Functionality including multi-browser support, support for Free ACTi NVR or Mobile Viewing Software plus more allows professional results with maximum installer, administrator and user ease.

The ACTI B934 1080P Indoor Speed Dome PTZ IP Camera is equipped with a powerful 30x optical zoom including DC-iris and Auto Focus. Equally impressive high precision, high speed movement including 360° endless Pan and 0-180° Tilt with Auto-Flip promise effective user control. Meanwhile other built-in benefits like digital I/O, Two Way Audio or Micro SDHC or Micro SDXC Card slot support assures a wide variety of requirements are achievable. All joined together ACTi B934 Pan/Tilt/Zoom IP Camera is able to empower automated, stand-alone IP Surveillance to sophisticated security system designs. The PTZ is designed for indoor applications and includes Surface mount adapter while optional Pendant, Wall Mount, Corner Mount, Pole Mount, Flush or even Gang box accessories are available. Easy Power input of 12VDC or High PoE support for one cable security camera installs.

ACTI B934 Speed Dome PTZ Camera Features:

  • 2 Megapixel Progressive Scan CMOS 1/2.8" Image Sensor
  • Effective Pixels: 1944(H) X 1224(V) (2.38 MP)
  • True Day/Night ICR with Low Light: Color: 0.1 lux at F1.6; B/W: 0.05 lux at F1.6
  • ACTI SLLS: Superior Low Light Sensitivity
  • True Wide Dynamic Range: Extreme WDR (145 dB)
  • Image Enhancements: (DIS) Digital Image Stabilizer, Defogging
  • Digital Noise Reduction: 2D + 3D DNR
  • Zoom Ratio: 30x optical Zoom, f4.5-135mm, F1.6-F4.4, DC iris, Auto focus
  • Horizontal Field of View (HFOV 59.8° - 2.34°)
  • Pan Range: 360° endless and Tilt Range: 0°~180°
  • Multi-Streaming: Simultaneous triple streaming: H.264 (Baseline/ Main/ High profile), MJPEG
  • Maximum Frame Rate: 60 fps at 1920 x 1080 (1080P), 60fps at 1280 x 720 (720p), 30 fps at VGA or CIF
  • Privacy Mask: 20 independently configured 3D Privacy masks
  • Built-in Analytics Object Based Motion Detection, Tamper, Digital Image Stabilizer, Shock Detection, PTZ Auto Tracking, Line Crossing, Missing Object, Unattended Object, Loitering
  • Two Way Audio: Mic-in, Line-in, Line-out
  • Network Protocol & Service TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour
  • Digital Input/Output: 2/2
  • Local Storage: Micro SDHC, Micro SDXC memory card slot (no card)
  • Construction: Vandal resistant (IK09)
  • Bundled Accessories: Surface mount, Power Adapter
  • Optional Mounts: Surface (included), Pendant, Wall Mount, Corner Mount, Pole Mount, Flush, Gang box
  • Operating Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
  • Approvals: CE, FCC, IK09, UL (for bundled power adapter)
  • ONVIF Compliant: Yes, Profile S, Profile G
  • Web Browser: IE 9.0 or newer, Firefox with VLC, Chrome with VLC, Safari with QuickTime
  • Dimensions: (Φ x H) 150mm x 163.3mm (5.9" x 6.4")
  • Weight: 1546 grams (3.41 lbs.)
  • Power Input: 12VDC or High PoE - Power Draw: 25.5 W (PoE)
  • Warranty: 3 Year(s)* (3 months in continuous motion)
