Vivotek SD8333-E 30x 720p Speed Dome PTZ IP Camera

Write a Review
  • Vivotek SD8333-E Speed Dome HD PTZ IP Camera 720P 30x

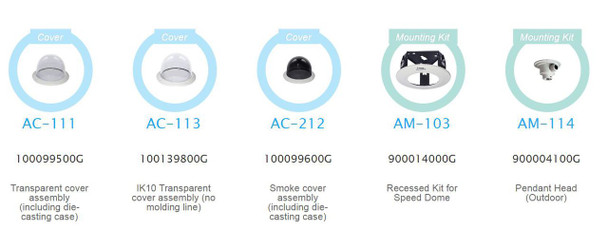

  • Vivotek SD8333-E PTZ IP Camera optional accessories
  • Vivotek SD8333-E PTZ IP Camera more optional accessories
  • Vivotek SD8333-E PTZ IP Camera more accessory options

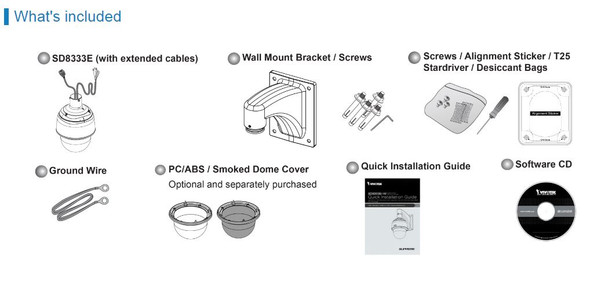

  • Vivotek SD8333-E PTZ IP Camera what's included
  • Vivotek SD8333-E PTZ IP Camera dimensions
Contact Us


NOTICE: This product has been discontinued or is EOL - Please contact our Experts or search the category link below or other related categories.

Moved to EOL: February 24, 2020

Vivotek SD8333-E 30x 720p Speed Dome PTZ IP Camera is a well-rounded outdoor ready Pan/Tilt/Zoom Security Camera for professional surveillance demands. The unit offers smooth video capture of even fast moving objects thanks to a progressive scan image sensor plus high frame rate 60fps capture at up to 720P HD. The PTZ is also enhanced for powerful day/night surveillance including WDR Pro to low light performance down to 0.0048 lux in monochrome. Precise, high speed Pan/Tilt/Zoom operation including functions like preset positions or tours to integration abilities like RS-485 input with 3rd party protocol support are all included. The unit boast additionally a rugged IP67 and NEMA 4X construction to ensure total protection in harsh outdoor environments.

The Vivotek SD8333-E Outdoor Speed Dome PTZ IP Camera is a solid choice for professional results be it an integrated security system or as a stand-alone surveillance systems. The Vivotek PTZ includes numerous benefits ranging from multi-streaming to local Micro SD, SDHC or SDXC card slot for on-board recording. Two Way Audio, plentiful Digital I/O connections to 24VAC, PoE Plus or High PoE power support all promise maximum adaptability. A vast selection of Vivotek Speed Dome accessories also ensure flexible install including junction boxes, alternate wall and parapet mounts, adapter rings, pendant pipes, pole mounts and so on. Innovative perks like PTZ Auto-Tracking Video Analytic enables the PTZ to automatically follow targets after motion detection. Mean-while diverse

Vivotek SD8333-E Main Features:

  • 720p HD Megapixel CMOS Sensor
  • 60fps at 720p HD (1280 x 720)
  • PTZ: 360° Continuous Pan, 220° Tilt and 30x Zoom Lens
  • True Day and Night Function plus WDR Pro, 3DNR, Defog
  • Real-time H.264, MPEG-4 and MJPEG Compression (Triple Codec)
  • Weatherproof IP67-rated and NEMA-4X Housing -40°C ~ 55°C Extreme Temperature Range
  • Video Motion and Audio Detection plus PTZ Auto Tracking
  • Built-in 802.3at Compliant PoE Plus
  • 3D Privacy Masks, Scheduled Profiles, Text Overlay,
  • Built-in SD/SDHC/SDXC Card Slot for On-board Storage
  • 24VAC, PoE Plus or High Power PoE

Vivotek SD8333-E More Specifications:

  • 1/3" 1MP Progressive CMOS Image Sensor
  • Maximum Resolution: 1280x720 or 720p at 60fps
  • 30x Optical Zoom, Auto Focus, DC Iris Lens 4.3~129mm, F1.6-F4.7 (HFOV: 2.1° ~ 57.8°)
  • IR Cut-filter True Day/Night 0.15 Lux @ F1.6 (Color) or 0.0048 Lux @ F1.6 (B/W)
  • Pan/Tilt Speeds: 0.05° ~ 450° per sec
  • Pan Range: 360 endless and Tilt Range: 220° (-110° ~ +110°)
  • Preset Locations: 256 preset locations, 40 presets per tour and Auto pan or Auto patrol mode
  • Pan/tilt/zoom Functions: 48x digital zoom (4x on IE plug-in, 12x built-in)
  • On-board Recording Storage: SD, SDHC or SDXC card slot
  • Video Compression: H.264, MJPEG or MPEG-4
  • Maximum Frame Rate: H.264, MPEG-4 or MJPEG at 60 fps @ 1280x720 (MJPEG w/WDR 30fps)
  • Multi-Streaming: up to 4 video streams
  • WDR Pro: Wide Dynamic Range 110 dB
  • Time stamp, text overlay, flip & mirror, privacy masks (Up to 24) and Defog
  • Live viewing for up to 10 web clients
  • Video Motion Detection and Auto-tracking on moving object
  • Alarm Triggers: Video motion detection, manual trigger, periodical trigger, system boot, recording notification, camera tampering detection, audio detection
  • Alarm Events: Event notification using digital output, HTTP, SMTP, FTP and NAS server
  • File upload via HTTP, SMTP, FTP and NAS server
  • Two Way Audio I/O: input/output lines (full duplex) w/Audio Codecs: AAC, G.711, and G.726
  • Digital I/O: input 4/output 2
  • RS-485 for PTZ control via Pelco D
  • Weather-proof IP67 and NEMA 4X-rated mated housing
  • Operating Temperature: -5°C ~ 55°C (PoE Plus) or -40°C ~ 55°C (AC 24V or High PWR PoE)
  • Optional Built-in electrical dehumidifier device (SD8333-EM)
  • Approvals: CE, FCC Class A, VCCI, C-Tick, NEMA 4X
  • Power Input: PoE plus (IEEE 802.3at compliant). High Power PoE or 24VAC
  • Power Consumption: PoE plus: Max. 19W or 24VAC / High Power PoE: Max. 48W (heater on)
  • Dimensions Ø: 205mm x 321mm
  • Weight Net: 3974 g
  • 3YR Warranty

Last Updated: July 27, 2016
