A2Z PDN50U225HI 25x 2MP Starlight Vandal Dome IP PTZ Security Camera

Write a Review
SKU:
PDN50U225HI
Shipping:
Calculated at Checkout
  • A2Z PDN50U225HI 25x 2MP Vandal Dome IP PTZ Security Camera includes Wall Mount
  • A2Z PDN50U225HI 25x 2MP Vandal Dome PTZ IP Camera from below
  • A2Z PDN50U225HI 25x 2MP Vandal Dome PTZ Accessories

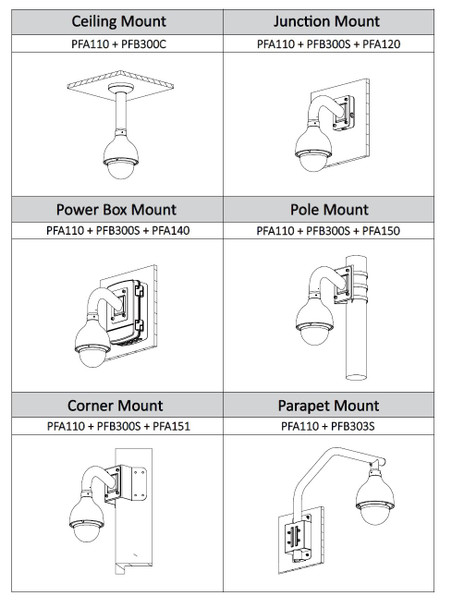

  • A2Z PDN50U225HI 25x 2MP Vandal Dome PTZ Optional Accessory Sample Mount Drawings
  • A2Z PDN50U225HI Vandal Dome PTZ dimensions
$499.00

Description

A2Z PDN50U225HI 25x 2MP Vandal Dome IP PTZ Security Camera is a superb choice for a feature rich, high performing PTZ Camera with quality build and affordable cost. Packed with countless technology advances the first superior attribute to note is its Sony Starvis CMOS Image Sensor often referred to as a "Starlight" sensor due to its exceptionally low light capabilities in both color and monochrome imaging. The unit couples this excellent low light performance with many other imaging perks like WDR and Ultra DNR to provide vividly clear video surveillance around the clock. Of course, there is latest H.265 and H.264 compression options, but this modern PTZ also boast up to 60fps in full 1080P HD for incredibly smooth video and such high frame rates can benefit you dramatically when capturing fast moving objects. The unit is further outfitted with professional high speed, precise Pan/Tilt/Zoom mechanisms, is intelligent with on-board Video Analytics and is compact plus rugged making it ready for a wide range of applications. You can also consider a wide set of optional mounting accessories or even special order in-ceiling versions plus with their 24VAC or POE+ power input this Vandal Dome PTZ Camera series is geared to meet all your demands. Third Party Security System integration is also a breeze thanks to ONVIF compliance while alternatively with its free mobile Apps, PC software and full function web interface the unit is also ready for stand-alone operations including Recording by adding a SD card. Don't forget that its 25x optical zoom is nearly in distinguishable from typical 30x models and so this Dome PTZ truly delivers best in class performance with attractive pricing.

Main Features:

  • 1/2.8” 2 Megapixel STARVIS™ CMOS
  • Powerful 25x optical zoom
  • H.265 Encoding and Multi-Streaming
  • Starlight technology for Super Low Light Performance
  • Up to 60fps @ full 1080P HD (Twice real-time speeds of 30fps)
  • Auto-tracking and IVS (Video Analytics i.e. Tripwire, Intrusion, etc.)
  • Support 24VAC or PoE+ (Power over Ethernet)
  • IP67 Super Weatherproof, Vandal Resistant and High Impact IK10
  • Features Specail design for Low Profile, In-ceiling or recessed mount

Cutting Edge Surveillance:
This 25x 2MP or 1080P HD Dome PTZ IP Camera is packed with impressive video capabilities. Take as example the Color imaging in as little as 0.005 Lux or its frame rates of up to 60fps which is double real-time standards and its clear this PTZ provides the best levels of HD performance seen to date. Added enhancements rivaling higher cost PTZ are also all well integrated such as ROI (Region of Interest), EIS (electronic image stabilization) or DEFOG as well as of course advances like 120dB Wide Dynamic Range and Ultra DNR all combine for best in class video quality throughout adverse conditions. Paired with precision, high speed Pan and Tilt and a 25x Zoom lens measuring 120mm on its telephoto mark ensure this PTZ IP Camera delivers satisfying results.

Smart Design:
The PDN50U225HI Vandal Dome PTZ not only includes innovative image performance but it also gives added intelligence for flexible security system design be it as a stand-alone surveillance system, a single camera in a multi-camera security system or even for non-security system purposes. On-board Detection methods go beyond the standard motion detection which of course is included along with a variety of other alarm functions like video tamper, network disconnect, storage fault and so on. Added intelligence


More Specifications:

Camera
1/2.8” STARVIS™ CMOS "Starlight" Image Sensor
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
RAM/ROM 1024M/128M + Progressive Scanning System
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6
S/N Ratio More than 55dB

Lens
Focal Length 4.8mm~120mm, Max. Aperture F1.6 ~ F4.4
Horizontal Field of View (HFOV): 62.8° ~ 2.6°
Optical Zoom 25x
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
DORI Distance:
Detect Observe Recognize Identify
1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft)

PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: 0° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~350° /s; Tilt: 0.1° ~250° /s
Preset Speed Pan: 500° /s; Tilt: 500° /s
Max Presets: up to 300
PTZ Modes: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate: Preset / Scan / Tour / Pattern if there is no command in the specified period
Protocol: DH-SD

Intelligence & Event Triggers:
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Supports Auto Tracking
IVS Tripwire, Intrusion, Abandoned/Missing
Advanced Intelligent Functions Face Detection, Heat Map

Video
Compression Methods: H.265+, H.265, H.264+ and H.264
Triple Video Streaming Capability: 3 Individually Configured Streams
Resolution 1080P (1920×1080)/ 1.3M(1280×960)/ 720P (1280×720)/ D1(704×576/704×480)/ CIF (352×288/352×240)
Max Frame Rate & Resolution Per Stream:
Main stream: 1080P / 1.3M / 720P (1~50/60fps)
Sub stream1: D1 / CIF (1 ~ 25/30fps)
Sub stream2: 1080P / 1.3M / 720P / D1 / CIF (1~25/30fps)
Bit Rate Control: CBR or VBR selectable
Bit Rate H.265/H.264: 448K ~ 8192Kbps adjustable
Day/Night Settings: Auto (ICR) / Color / B/W
Backlight Compensation Settings: BLC / HLC / WDR (120dB)
White Balance Settings: Auto, ATW, Indoor, Outdoor, Manual
Gain Controls: Auto / Manual
Noise Reduction Ultra DNR (2D/3D)
Region of Interest, Electronic Image Stabilization (EIS), Defog
Digital Zoom 16x & Flip 180°
Privacy Masking Up to 24 areas

Audio
Compression Selections: G.711a, G.711Mu, AAC, G.722, G.726, G.729, MPEG2-L2

Network
IT Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Interoperability: ONVIF Profile S&G, API
Streaming Methods: Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage), Local PC for instant recording
Local Storage: Micro SD card 256GB
Web Browsers: IE, Chrome, Firefox, Safari
FREE Management Software: PC or MAC
FREE Mobile apps for Smart Phones / Tablets: IOS, Android

Certifications:
CE: EN55032/EN55024/EN50130-4
FCC: Part15 superbase C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Connection Interfaces:
Audio I/O 1/1
Alarm I/O 2/1
Ethernet RJ-45 (10Base-T/100Base-TX)


Electrical:
Power Input: 24VAC 1.5A(±10%) or PoE+(802.3at)
Power Consumption: 13W,23W (Heater on)

Environmental:
Operating Conditions -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH
Ingress Protection: IP67 Weatherproof Outdoor
Vandal Resistance: IK10 High Impact Rated
Construction:
Metal Housing
Dimensions: Φ186(mm) x 253(mm) or Φ7.32" x 9.96"
Weight: 2.5kg or 5.51 lbs.

Compare to Dahua SD50225UN-HNI or 50225UNI

Last Updated: February 29th, 2020
