A2Z PDN1AT203G Mini Dome 2MP Starlight 3x IR PTZ IP Camera

Write a Review
Calculated at Checkout
  • A2Z PDN1AT203G Mini Vandal Dome Starlight 3x IR PTZ IP Camera
  • A2Z PDN1AT203G Mini Dome PTZ Dimensions

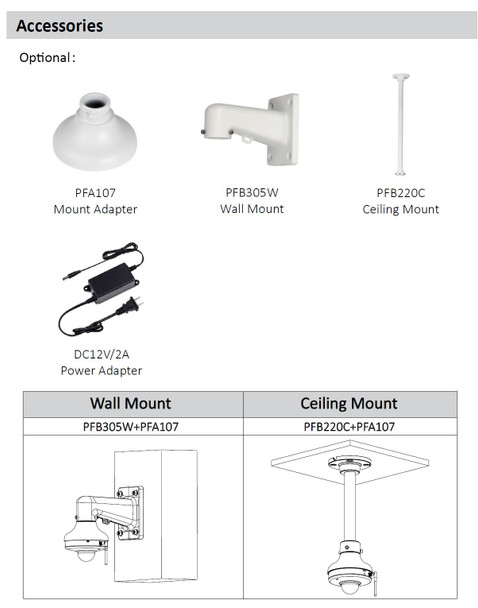

  • A2Z PDN1AT203G Mini Dome PTZ  Optional Mounting
  • A2Z PDN1AT203G Mini Dome IR PTZ


A2Z PDN1AT203G Mini 2MP Starlight 3x IR PTZ IP Camera is a unique true pan/tilt/zoom camera boasting miniature size yet powerful performance. The unit provides up to real-time 30fps video surveillance in full 1080p HD and with its added true day/night function along with integrated IR illumination the device promises sharp imaging even complete dark. Likewise, the device provides precise, smooth pan and tilt operation on demand while also offering ultra-wide coverage on its wide-angle focal setting and a modest telephoto zoom ability that works fantastically for manually patrolling small to medium sized areas. This super lower profile PTZ includes a truly impressive array of attributes making highly popular. In addition to its notably reasonable price and attractive discreet design this IP camera grants starlight ability allowing full color imaging in exceptionally dim scenarios while other aspects like its H265 compression promise efficient video streaming. Add in flexible power options, easy ONVIF 3rd party integration or its weatherproof design and its simple to see its benefits in numerous video security system projects.

PDN1AT203G Main Features:

  • 1/2.8” 2 Megapixel STARVIS™ CMOS Low Light Sensor
  • Superb 3x optical zoom for Wide to Telephoto coverage
  • Starlight Super Low Lux Video in Color or B&W
  • True WDR 120dB
  • 30fps Real-time at full 1080P HD
  • IVS (Video Analytics) like: Tripwire, Intrusion
  • IR distance up to 15m or about 50ft
  • IP66 Weatherproof Outdoor Ready
  • IK08 Vandal Resistant Impact Resistant
  • Micro SD Card for local storage up to 256gb
  • 12V or PoE Input

Superior Image Performance:
The PDN1AT203G Mini IR Dome PTZ IP Camera grants triple streaming including video streams of up to 1080p, 720p and D1 resolution respectively per stream with all capable of real-time 30fps. Fine tuning of video streams is richly supported with selections for VBR or CBR and more for customized bandwidth settings as well as of course attributes such as cutting-edge video compression methods like H.265 and H.264. The units provide outstanding low light performance even without their built-in IR. Color low light imaging to 0.005 lux or B/W to 0.0005 lux promises excellent results. Furthermore, this IP camera has true WDR which rated to 120dB ensuring clear results in high contrast scenes while many other modern enhancements be it Ultra DNR or Defog are also all on board.

Easy 3rd Party Integration to Stand-alone Operation:
This mini IP PTZ Camera is packed with abilities that continue to stack up to a one of kind model. The devices provide a well-developed full features web interface which provides not only in-depth menu driven settings for its many features but likewise fully encompasses use as a stand-alone video security or surveillance solution. Its live view with PTZ controls to effective search, playback and export all through this web interface is extremely useful and a sizeable 256GB Micro SD card slot allows decent on-board storage. There are a variety of intelligent event trigger methods plus video analytics like intrusion and tripwire for superior detection accuracy. Alternatively, to using the web interface users can enjoy Free PC NVR/CMS software and sleek mobile apps. Meanwhile 3rd Party Integration is also simple via ONVIF universal compliance as well as support for IT protocols like RTSP allows these units to easily adapt to your security camera system or video surveillance needs.

All-around Abilities:
Along with all the image performance and intuitive users interfaces this Mini IR PTZ IP Camera boast many other added features as well as its physical properties. The device ready for external microphone and speaker connections while also supports adaptable power input such as 12V DC input or single cable install via PoE (power over ethernet). What’s more is the device is outdoor ready with an IP66 weatherproof rating and features an IK08 rating making it resistant to impact. By default, the unit allows surface mounting but wall mounts, ceiling mounts and pendant adapters are also available.

More Specifications:

1/2.8” STARVIS™ CMOS Low Light Image Sensor
Effective Pixels 1920(H) x 1080(V), 2 Megapixels
RAM/ROM 512M/128M + Progressive Scanning System
Electronic Shutter Speed 1/1s~1/30,000s
Minimum Illumination Color: 0.005 Lux @F1.8; B/W: 0.0005 Lux @F1.8; 0 Lux @F1.8 (IR on)
S/N Ratio More than 50dB
IR Night Vision Distance up to 15m (49.2ft)
IR Illumination Settings: On/Off Control, Auto or Manual
IR LEDs: 3

Focal Length 2.7mm~8.1mm, Max. Aperture F1.8
Horizontal Field of View (HFOV): 105.6° ~ 35.2°
Optical Zoom 3x
Focus Control Auto/Manual
Close Focus Distance 100mm~ 1000mm
DORI Distance
Detect Observe Recognize Identify
100.4m(329.4) 40.2m(131.9ft) 20.1m(65.9ft) 10m(32.8ft)

Pan/Tilt Range Pan: 0° ~ 355°; Tilt: 5° ~ 90°
Manual Control Speed Pan: 0.1° ~70° /s; Tilt: 0.1° ~30° /s
Preset Speed Pan: 80° /s; Tilt: 40° /s
Presets: Up to 300
PTZ Mode: 8 Tour
Speed Setup: Human-oriented focal Length/speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/Tour if there is no command in the specified period
Protocol: DH-SD

Intelligence & Event Triggers:
Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS (Video Analysis): Tripwire, Intrusion, Abandoned/Missing Objects
Advanced Intelligent Functions: Face Detection

Compression selections: H.265+, H.265, H.264+, H.264
Triple Streaming Capability - 3 Individually configured Streams
Resolution 1080P (1920×1080)/ 720P (1280×720)/ D1(704×576/704×480)/ CIF (352×288/352×240)
Max Frame Rate / Resolution Per Stream:
Main stream: 1080P / 720P (1 ~ 25/30fps)
Sub stream 1: D1 / CIF (1 ~ 25/30fps)
Sub stream 2: 720P / D1 / CIF (1 ~ 25/30fps)
Bit Rate Control: CBR or VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night Selections: Auto (ICR) / Color / B/W
Backlight Compensation Settings: BLC / HLC / WDR (120dB)
White Balance Settings: Auto, Twindom, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction Ultra DNR (2D/3D), Region of Interest & Defog
Digital Zoom 16x & Flip 180°
Privacy Masking Up to 24 areas

Compression: G.711a, G.711mu, G.726, AAC

Interoperability: ONVIF Profile S&G, API
Streaming Method Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage), Local PC for instant recording
Local Storage via Micro SD card: Up to 256GB
Web Browser support: IE, Chrome, Firefox, Safari
FREE Management Software PC and MAC support
FREE Mobile Apps for Smart Phone or Tablets: IOS, Android OS

CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Interface Connections:
Ethernet RJ-45 (10XBase-T/100Base-TX)
Audio I/O Mic in/Line in, Line out

Power Input: 12V DC 1.5A or PoE (IEEE 802.3af)
Power Consumption: 7.8W, 10.5W (IR on)

Operating Conditions -30°C ~ 60°C (-22°F ~ +140°F) / Less than 95% RH
Ingress Protection: IP66 Outdoor Weatherproof Ready
Vandal Resistance: IK08 Impact Resistant
Metal Casing
Dimensions Φ128(mm) x 63(mm) or Φ5.03" x 2.48"
Weight 0.49kg or 1.08 lbs.

Last Updated: February 29th, 2020
