A2Z PDN49T225HI 25x Starlight 100m IR PTZ IP Camera

Write a Review
SKU:
PDN49T225HI
Shipping:
Calculated at Checkout
  • A2Z PDN49T225HI 25x Starlight 100m IR PTZ IP Camera with wall mount

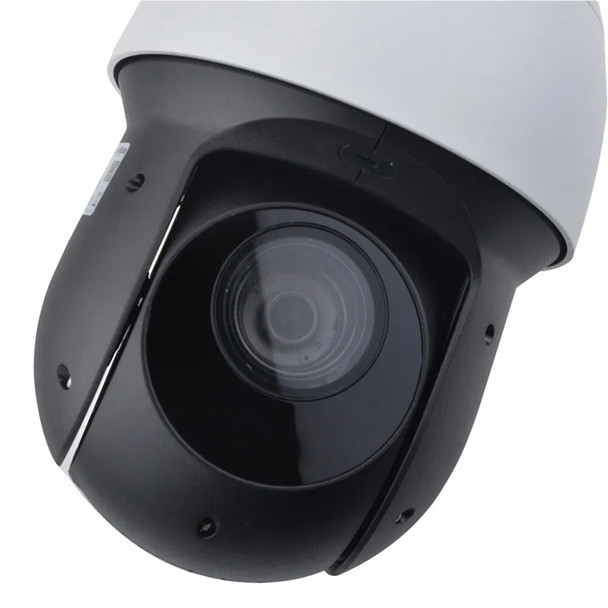

  • A2Z PDN49T225HI IR PTZ IP Camera Close up
  • A2Z PDN49T225HI IR Pan-Tilt-Zoom (PTZ) IP Camera accessories
  • A2Z PDN49T225HI PTZ example mounting drawings

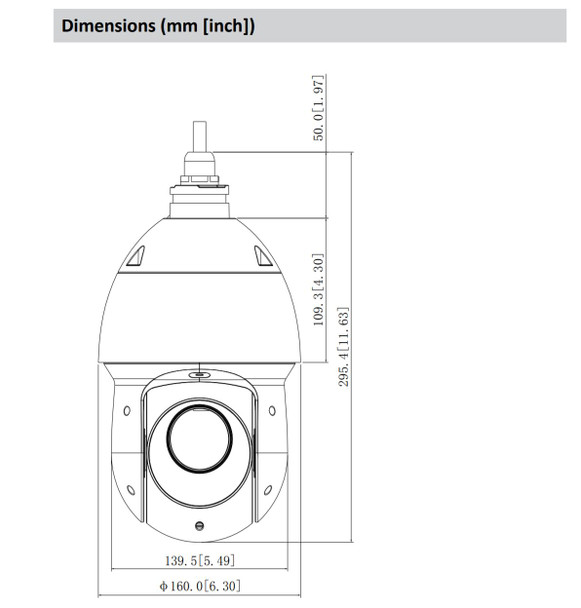

  • A2Z PDN49T225HI PTZ Dimensions
$475.00

Description

A2Z PDN49T225HI 25x Starlight IR PTZ IP Camera is an incredible new Pan/Tilt/Zoom camera offering best in class performance at an amazing price tag. The PTZ rivals higher end Pan/Tilt/Zoom Security Camera Systems and is loaded with professional features and attributes that even surpass some top-end models from other brands. Boasting ultra-low light performance with the latest Sony Starvis series sensors this 2MP PTZ camera achieves vivid day/night video and includes a powerful IR night vision effective up to 100 meters. You'll hardly notice a difference in optical zoom as well when comparing this IP PTZ camera's 25x zoom lens (measuring 120mm), it’s practically indistinguishable from the typical 30x PTZ zoom (which is often around 135mm). Numerous other desirable aspects of modern PRO level PTZs are all incorporated too. You'll find flexible multi-streaming including H265 compression, full function web interface with intelligent video analytics and on-board storage to provide complete IP Surveillance even when used as a stand-alone device. But that is not all, installation is made easy with PoE+ support while quality free mobile apps to to free CMS PC and MAC capable software to ONVIF compliance promise a wide range of security system integration possibilities.

Main Features:

  • 1/2.8” 2 Megapixel STARVIS™ CMOS
  • Powerful 25x optical zoom (4.8mm~120mm for H: 62.8° ~ 2.6° HFOV)
  • Starlight technology Color: 0.005 Lux @ F1.6; B/W: 0.0005 Lux @ F1.6; 0 Lux @ F1.6 (IR on)
  • Full 30fps at 1080P with H.265 and H.264 Plus Triple-Streaming Support
  • Advanced Imaging with BLC, HLC, WDR (120dB), Ultra DNR (2D & 3D), Defog, ROI
  • IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
  • ONVIF Profile S & G
  • IVS (Video Analytics)- Tripwire, Intrusion, Abandoned/Missing, Face Detection
  • DC 12V or PoE+(802.3at)
  • IR distance up to 100m (328ft)
  • IP66 Weatherproof
  • Micro SD card 256GB
  • Alarm I/O and Audio I/O
  • Dimensions Φ160(mm) x 295(mm)
  • Weight 3kg(6.61lb)
  • Weight 4.2kg(9.26lb)
  • -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH

Superb Video and Audio Surveillance:
The PDN49T225HI 2MP IR PTZ IP Camera has an amazing price for performance ratio. The PTZ absolutely delivers satisfying video quality around the clock including crisp imaging through the darkest scenes as well as other high contrast scenes day or night. The device provides multiple H.265 and H.264 compression method options as well as grants multi-streaming along with a wealth of other attributes including third party integration to ensure your video solution is useable in countless manner. Add an optional microphone and the system moves to the next level of situational awareness while even adding a speaker is an option readily available for those interested in Two-way communications. From stunning performance, ease of access and use this camera really is a best in class choice!

Highly Adaptable, Professional Grade:
Smaller than your typical Pro PTZ this unit’s compact size can only be a benefit. It however doesn't lack in robust weatherproof protection with an IP66 rating on its full metal casing. It is also ready for harsh environmental conditions of high heat and extreme cold. The unit includes a nice wall bracket; however, many optional mounting accessories and adapters are available to complete all sorts of installations including pole mounts, ceiling mounts and so forth. The flexible PoE+ single cable installation is a plus and this camera also rare for its performance characteristics offers 12V DC input as opposed to the common 24 VAC requirements of any PTZ you'll find at this level or above. Thus, be it for stand-alone use or as part of a greater video security system this unit is a top pick!


MORE Specifications:

Camera:
1/2.8” STARVIS™ CMOS Low Light Image Sensor
Effective Pixels: 1920(H) x 1080(V), 1080p or 2 Megapixels
RAM/ROM 1024M/128M
Scanning System Progressive
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6; 0 Lux @F1.6 (IR on)
S/N Ratio More than 50dB
IR Night Vision Distance Effective up to 100m (328ft)
IR Controls: On/Off Control and Auto or Manual Adjust options
IR LEDs 6
Optical Lens Focal Length: 4.8mm~120mm w/Max. Aperture F1.6 ~ F4.4
Optical Zoom: 25x w/Horizontal Field of View (HFOV): 62.8° ~ 2.6°
Focus Control: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
DORI Distance:
Detect Observe Recognize Identify
1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft)
PTZ capabilities:
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 240° /s; Tilt: 200° /s
Presets Support: up to 300
PTZ Modes: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup: Human-oriented focal Length & speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
PTZ Protocol: DH-SD
Intelligence & Event Triggers:
Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS (Video Analytics) Tripwire, Intrusion and Abandoned or Missing Object
Advanced Intelligent Functions: Face Detection
Video:
Compression Options: H.265+, H.265, H.264+ or H.264
Triple Video Streaming Capability: 3 Individual Streams
Supported Resolutions: 1080P (1920×1080)/ 720P (1280×720)/ D1(704×576/704×480)/CIF (352×288/352×240)
Frame Rate Abilities Per Video Stream
Main stream: 1080P/720P (1 ~ 25/30fps)
Sub stream1: D1/CIF (1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)
Bit Rate Control options: CBR or VBR
Bit Rate H.265/H.264: 448K ~ 8192Kbps
Day/Night Settings: Auto (ICR) / Color / B/W
Backlight Compensation Settings: BLC / HLC / WDR (120dB)
White Balance Settings: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto or Manual
Noise Reduction Ultra DNR (2D/3D)
Supports Motion Detection, Region of Interest, Defog & Privacy Masking Up to 24 areas
Digital Zoom 16x & Flip 180° Supported

Audio
Compression G.711a/G.711Mu/G.726/AAC

Network
IT Network Protocols:
IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Interoperability: ONVIF Profile S&G, API
Streaming Methods: Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage), Local PC for instant recording
On-board Storage support for Micro SD card up to 256GB
Web Browser Support: IE, Chrome, Firefox, Safari
FREE Management Software with PC / MAC Support
Free Mobile Apps for Smart Phones/Tablets of IOS, Android OS
Certifications:
CE: EN55032/EN55024/EN50130-4
FCC: Part15 superbase C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Connectors
Ethernet Connector: RJ-45 (10XBase-T/100Base-TX)
Supports Audio I/O: 1/1 external microphone and speaker connection
Alarm I/O: 2/1 external sensors, relays, etc.

Power
Power Input Options: DC 12V 3A or PoE+(IEEE 802.3at)
Power Consumption: 13W, 22W (IR on, Heater on)

Environmental / Construction:
Operating Conditions: -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66, Weatherproof Outdoor Ready
Construction: Metal Casing
Dimensions: Φ160(mm) x 295(mm) or Φ6.29" x 11.61"
Weight: 3kg or (6.61 lbs.)

Compare to Dahua SD49225TN-HN or 49225TN.
