A2Z PDN59U225HI Starlight 2MP 25x 150m IR PTZ IP Security Camera

Write a Review
SKU:
PDN59U225HI
Shipping:
Calculated at Checkout
  • A2Z PDN59U225HI Starlight 2MP 25x 150m IR PTZ IP Camera
  • A2Z PDN59U225HI Starlight IR PTZ includes Wall Mount
  • A2Z PDN59U225HI Starlight IR PTZ side view

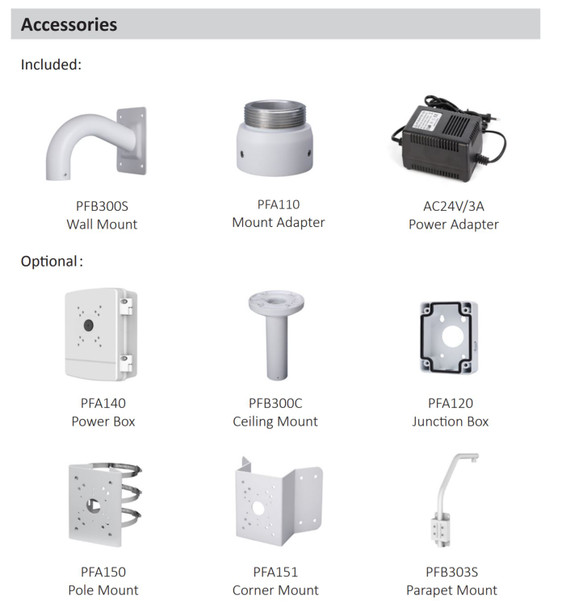

  • A2Z PDN59U225HI PTZ Accessories
  • A2Z PDN59U225HI IR PTZ example drawings of optional mounting
  • A2Z PDN59U225HI Starlight IR PTZ wall mount drawing
  • A2Z PDN59U225HI PTZ Dimensions
$635.00

Description

A2Z PDN59U225HI 1080P 25x IR PTZ IP Security Camera is a professional, high performing Pan, Till and Zoom boasting the latest technology, high quality and an affordable cost. Built with the Sony Starvis Starlight or Ultra Low Light HD 2MP sensor this unit grants super low lux viewing even in color. Vivid imaging is matched with powerful optics and a powerful integrated IR illumination effective to nearly 500ft. The device is well equipped for the widest range of pro IP surveillance demands as well likewise highly adaptable to all sorts of specialized uses. This PTZ grants the latest H.265 compression and full 1080P HD at up to 60fps double that of real-time standards. All aspects are well provided such as a user-friendly web browser interface, giving full functionality of PTZ control, live view to playback, search and export to further intricate customizations of on-screen displays or enhanced image settings such as WDR and multi=streaming is all also on-board. Smart functions and Video Analytics like Intrusion or Auto-Tracking is included as well and of course the units are open platform, ONVIF compliant, POE+ single cable install ready and outdoor rated with wide temperature range support for the harshest environments. Simply stated, if you need a powerful PTZ loaded with professional performance levels at a great cost, this is the PTZ of choice!

Main Features:

  • 1/2.8” 2 Megapixel STARVIS™ CMOS
  • Powerful 25x optical zoom
  • Starlight technology
  • H.265 Encoding
  • > Max. 60fps @ Full 1080P HD
  • Auto-tracking and IVS (video Analytics)
  • On-Board Micro SD / SDHC / SDXC Storage
  • IR Night Vision distance up to 150m
  • Outdoor Ready IP66 weatherproof
  • Support PoE+

Pro Video Surveillance:
The PDN59U225H-I 2MP IR PTZ Security Camera is a built to deliver top end specification on a well-rounded front and do so beautifully. The unit makes use of the Sony Starvis "Starlight" CMOS image sensors for extraordinarily low light like never seen before in HD Security Cameras. Higher frame rates of up to 60fps in full resolution grant superior video results and smooth capture of even fast-moving objects. The added benefits of the latest compression methods like H.265 as well as universally compliant with many standards from ONVIF to IP protocols like RTSP ensure easy adaptation to security systems or otherwise. The Super Powered Infrared Illumination auto adjust proportionally with the Zoom and is effective to nearly 500ft promising clarity even in zero light unlike traditional dome style PTZs.

Pro-grade, highly adaptable:
A2Z PDN59U225HI 2MP IR PTZ Security Camera is a well-designed in order to adapt to a wide range of surveillance or other applications. The unit is outdoor weatherproof rated with an IP66 rating, ready for extreme temperatures and in addition to its included gooseneck wall mount features a standard Pipe thread adapter as well as has an array of optional mounting accessories be it for pole mounting, ceiling mounting or other points like a weatherproof back box or junction box. The unit allows 24VAC input as most professional PTZs, but these days the PoE+ compliance also just makes things super easy by allowing a single network cable install when used with PoE+ switches or injectors. Free CMS Software and mobile apps as well as the fact it supports up to 256GB on-board storage so the device can provide stand-alone operation or act as redundant recording for your NVR system and overall security system solution.

MORE Specifications:

Camera:
1/2.8” STARVIS™ CMOS "starlight" Image Sensor
Effective Pixels 1920(H) x 1080(V), 1080p or 2 Megapixels
RAM/ROM 1024M/128M + Progressive Scanning System
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination Color: 0.005 Lux @F1.6; B/W: 0.0005 Lux @F1.6; 0 Lux@F1.6 (IR on)
S/N Ratio More than 55dB
IR Distance up to 150m (492ft)
IR Settings: On/Off Control, Auto or Manual Adjust (0-100 percent each far/near IR)
IR LEDs: 4 High Powered Infrared 850nm Matrix LEDs
Lens:
Optical Focal Length: 4.8mm~120mm & Max. Aperture F1.6 ~ F4.4
Horizontal Field of View (HFOV): 62.8° ~ 2.6°
Optical Zoom: 25x
Focus Control Option: Auto/Manual
Close Focus Distance: 100mm~ 1000mm
DORI Distance:
Detect Observe Recognize Identify
1613m(5292ft) 646m(2119ft) 323m(1060ft) 161m(528ft)

Pan/Tilt/Zoom Attributes:
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~200° /s
Preset Speed Pan: 400° /s; Tilt: 300° /s
Supported Presets: up to 300
PTZ Modes: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup Human-oriented focal Length/ speed adaptation
Power up Action Auto restore to previous PTZ and lens status after power failure
Idle Motion Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol DH-SD

Intelligence & Event Triggers:
Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
Supports - Auto Tracking
IVS Tripwire, Intrusion, Abandoned/Missing
Advanced Intelligent Functions: Face Detection, Heat Map

Video
Compressions selections: H.265+, H.265, H.264+ and H.264
Streaming Capability: Triple Streaming - 3 Individual video streams
Resolutions: 1080P (1920×1080)/ 720P (1280×720)/ D1(704×576/704×480)/CIF (352×288/352×240)
Frame Rate Per Video Stream:
Main stream: 1080P/1.3M/ 720P(1~50/60fps)
Sub stream1: D1/CIF (1 ~ 25/30fps)
Sub stream2: 1080P/1.3M/720P/D1/CIF(1~25/30fps)
Bit Rate Control: CBR or VBR selectable
Bit Rate H.265 and H.264: 448K ~ 8192Kbps adjustable
Day/Night Settings: Auto (ICR) / Color / B/W
Backlight Compensation settings: BLC / HLC / WDR (120dB)
White Balance Settings: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Supports Noise Reduction Ultra DNR (2D/3D), Region of Interest, Electronic Image Stabilization (EIS), Defog
Motion Detection
Supports Digital Zoom 16x & Flip 180°
Privacy Masking Up to 24 areas

Audio
Compression G.711a/G.711Mu/AAC/G.722 / G.726/G.729/
MPEG2-L2

Network:
IT Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Interoperability: ONVIF Profile S&G, API
Streaming Methods: Unicast and Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage), Local PC for instant recording
On board storage for Micro SD card up to 256GB
Supports Web Browsers: IE, Chrome, Firefox, Safari
FREE Management Software: for PC & MAC
FREE Mobile Apps for Smart Phones and Tablets of IOS or Android OS

Certifications
CE: EN55032/EN55024/EN50130-4
FCC: Part15 superbase C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Connectors:
Ethernet - Female RJ-45 (10Base-T/100Base-TX)
Audio I/O 1/1
Alarm I/O 2/1

Electrical
Power Input: 24VAC 3A (±10%), PoE+(IEEE 802.3at)
Power Consumption: 13W,23W (IR on)

Environmental
Operating Conditions -40°C ~ 70°C (-40°F ~ +158°F) / Less than 95% RH
Ingress Protection IP66 rated, Weatherproof outdoor ready
Construction
Casing Metal
Dimensions Φ186(mm) x 309(mm)
Weight: 3.9kg or 8.60 lbs. (Pendant Cam only)

Last Updated: February 29th, 2020
