A2Z PDN42T212HC 2MP 12x Starlight In-ceiling Mini Vandal Dome PTZ IP Camera

Write a Review
SKU:
PDN42T212HC
Shipping:
Calculated at Checkout
  • A2Z PDN42T212HC 12x 2MP Starlight Recessed Mini Vandal Dome PTZ IP Camera
  • A2Z PDN42T212HC 12x 2MP Starlight In-ceiling Mini Vandal PTZ Dome IP Camera
  • A2Z PDN42T212HC Starlight In-ceiling Mini PTZ Dome IP Camera

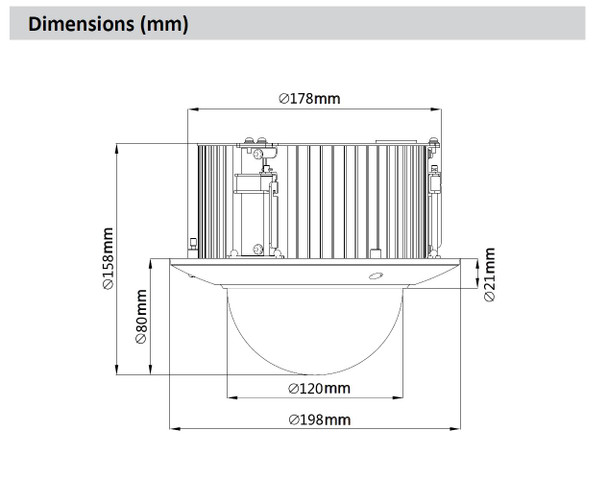

  • A2Z PDN42T212HC Mini Vandal PTZ Dome dimensions
$415.00

Description

A2Z PDN42T212HC Mini In-ceiling PTZ Dome IP Camera is an alternate version of the standard surface mount Mini PTZ in a specially designed case for recessed mounting in ceiling, soffits, overhangs or otherwise for an ultra-compact and unobtrusive installation. Including the latest Sony Starvis "Starlight" 2MP CMOS sensor this modern IP PTZ camera provides razor sharp 1080P video and offers extremely low light performance even in color. The device has high speed, precision pan, tilt and zoom operations and all common PRO PTZ functions. It affords the latest generation of video compressions like H.265 and H.264 while also equally providing universal security system integration via standards such as ONVIF. Furthermore, the unit’s Free mobile apps, PC software and web interface are all well developed, fully functional and user friendly. Take advantage of its on-board Micro SD card storage and the unit becomes a totally stand-alone video surveillance solution. The unit is built in an IP66 weatherproof casing that also has a vandal proof and IK10 impact resistance rating making it fully ready for the harshest install environments. Easy install is further by attributes like PoE+ allowing single cable deployment while of course 24VAC is also supported. Compact, High Performing, intelligent and affordable this Mini PTZ camera series has continued its popularity and continuously been updated with the latest technologies over the years.

Main Features:

  • 1/2.8” 2 Megapixel STARVIS™ CMOS
  • Support Triple-streams encoding with H.265, H.264 and MJPEG
  • Real-time 30fps @ 1080P HD
  • Powerful 12x optical zoom
  • Starlight Low Light Performance, True Day/Night
  • 120dB Wide Dynamic Range (WDR)
  • IVS (Video Analytics) Intrusion, Tripwire, Etc.
  • Support 24VAC or PoE+
  • Micro SD Card Support Local Storage Up to 256GB
  • Precision, High Speed Pan-Tilt-Zoom including Pro functions i.e. Presets, Tours
  • In-Ceiling (Recessed Mount) with other Optional mounting available with Surface Mount Model
  • Weatherproof IP66, Vandal Resistant, High Impact IK10

Superior Surveillance:
The PDN42T212HC Mini PTZ Camera is the perfect solution for your low profile, in-ceiling mounted PTZ demands. The unit's 12x optical zoom grants surprisingly capable telephoto abilities and its Sony Starvis CMOS Image sensor delivers stunning 1080P video in exceptionally low light conditions not seen since the days when security cameras primarily used CCD image sensors. The multi-streaming with in-depth user adjustments combine with the latest codec streaming for both video and audio. Compression methods like H.264 and H.265 promise super low bandwidth requirements while audio compressions like G.711A, G.711Mu, G.726 and AAC provide superb efficiency as well as quality for your external microphone and/or speaker additions. Built-in Intelligence by no means stops there, these Mini PTZs come with cutting edge detection methods also known as Video Analytics such as Tripwire, Intrusion and Face Detection. The diverse range of included IT protocols also promise practically any requirement of IT professionals to live broadcast demands are all ready to be met.


Highly Adaptable, Rugged, Compact:
In its recessed form the unit only protrudes from your surface a mere 3.14 inches making it among the smallest PTZ cameras available that still pack powerful zoom. Alternative models in pendant style and the standard surface mount style model offered along with an array of optional accessories means this PTZ series is ready for basically all types of install demands. The unit is rugged with a high impact IK10 rated casing meaning even if it is within reach of a would-be vandal, its tough construction can withstand heavy blows even of hammer or other solid objects. Flexible Power input like Power over Ethernet (PoE+ 802.3at) or 24VAC to external Alarm I/O promise comprehensive install capabilities. So, look no further, if you need help selecting the best PTZ camera for your project, simply reach out to our friendly security experts and the A2Z team will be happy to help you.

More Specifications:

Camera
1/2.8” STARVIS™ CMOS Low Light Image Sensor
Effective Pixels 1920(H) x 1080(V), 1080p or 2 Megapixels
RAM/ROM 1024M/128M + Progressive Scanning System\
Electronic Shutter Speed: 1/1s~1/30,000s
Minimum Illumination Color: 0.005Lux @ F1.6; B/W: 0.0005 Lux @ F1.6
S/N Ratio More than 55dB

Lens
12x Optical Zoom Lens - Focal Length 5.3mm~64mm - Max. Aperture F1.6 ~ F4.4
Horizontal Field of View (HFOV): 58.2° ~ 4.8°
Focus Control: Auto and Manual
Close Focus Distance: 100mm~ 1000mm
DORI Distance
Detect Observe Recognize Identify
883m(2897ft) 353m(1158ft) 177m(581ft) 88m(289ft)

PTZ
Pan/Tilt Range Pan: 0° ~ 360° endless; Tilt: -2° ~ 90°, auto flip 180°
Manual Control Speed Pan: 0.1° ~300° /s; Tilt: 0.1° ~120° /s
Preset Speed Pan: 300° /s; Tilt: 200° /s
Preset Support: Up to 300 Presets
PTZ Modes: 5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup: Human-oriented, focal Length/speed adaptation
Power up Action: Auto restore to previous PTZ and lens status after power failure
Idle Motion: Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Pan/Tilt/Zoom Protocol: DH-SD
Intelligence & Event Triggers:
Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS or Video Analytics: Tripwire, Intrusion, Abandoned/Missing Object
Advanced Intelligent Functions Face Detection
Video:
Compression Selections: H.265+, H.265, H.264+ or H.264
Triple Streaming Capability: 3 Individual Streams
Resolutions: 1080P (1920×1080)/720P (1280×720)/ D1(704×576/704×480)/CIF (352×288/352×240)
Frame Rate samples per Stream:
Main stream: 1080P/720P (1 ~ 25/30fps)
Sub stream1: D1/CIF (1 ~ 25/30fps)
Sub stream2: 720P/D1/CIF (1 ~ 25/30fps)
Bit Rate Control: CBR or VBR
Bit Rate settings H.265/H.264: 448K ~ 8192Kbps adjustable
Day/Night settings: Auto (ICR) / Color / B/W
Backlight Compensation settings: BLC / HLC / WDR (120dB)
White Balance: Auto, ATW, Indoor, Outdoor, Manual
Gain Control: Auto / Manual
Noise Reduction Ultra DNR (2D/3D), Region of Interest Support, Defog
Digital Zoom 16x & Flip 180° Supported
Privacy Masking Up to 24 areas

Audio:
Compressions G.711a, G.711Mu, G.726 & AAC

Network:
IT Protocols: IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour,802.1x
Interoperability: ONVIF Profile S&G, API
Streaming Methods: Unicast / Multicast
Max. User Access 20 users
Edge Storage NAS (Network Attached Storage), Local PC for instant recording
Local Storage w/Micro SD card slot supporting up to 256GB
Web Brower support: IE, Chrome, Firefox, Safari
FREE Management Software: PC & MAC support
FREE Mobile Apps Smart Phones & Tablets of IOS (Apple) or Android OS
Certifications:
CE: EN55032/EN55024/EN50130-4
FCC: Part15 subpart B, ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Connectors:
Ethernet RJ-45 (10XBase-T/100Base-TX)
Audio I/O 1/1
Alarm I/O 2/1

Electrical
Power input: 24VAC 1.5A(±10%) or PoE+(802.3at)
Power Consumption: 12W
Environmental
Operating Conditions: -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH
Vandal Resistance: IK10 High Impact Rated
Construction
Metal Casing
Dimensions: Φ198(mm)×158(mm) or Φ7.79" x 6.22"
Weight: 2.3kg or 5.07 lbs.

Compare to Dahua branded models SD42C212TN-HN or 42C212TNI

Last Updated: February 29th, 2020
